DML-14 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 14POS 3MM

Part	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Shape	Number of Positions Loaded	Style	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Fastening Type	Number of Rows [custom]	Termination	Features	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Material	Current Rating (Amps)	Insulation Color	Connector Type	Mounting Type	Number of Positions	Contact Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

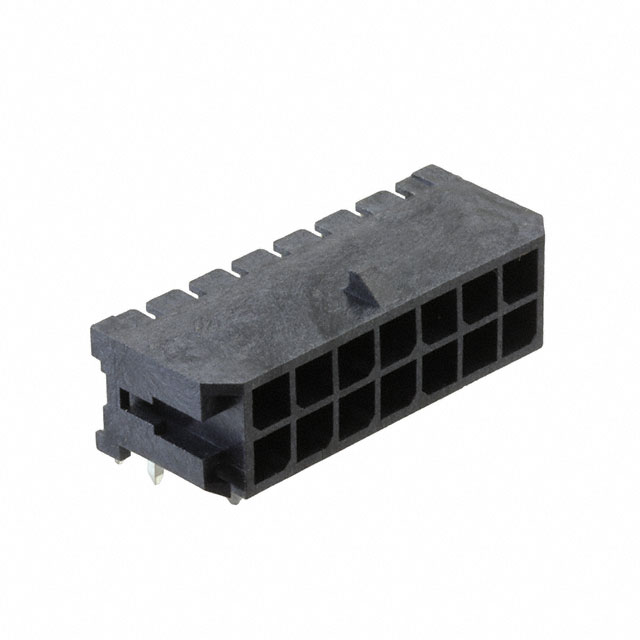

Adam Tech DML-14-A-H-T-A	0.125 in	3.18 mm	0.118 in	3 mm	Shrouded - 4 Wall	Square	All	Board to Cable/Wire	250 V	3 mm	0.118 in	Tin	Locking Ramp	2	Solder	Board Lock	UL94 V-0	0.27 in	6.86 mm	Brass	Varies by Wire Gauge	Black	Header	Right Angle Through Hole	14	Male Pin	Thermoplastic

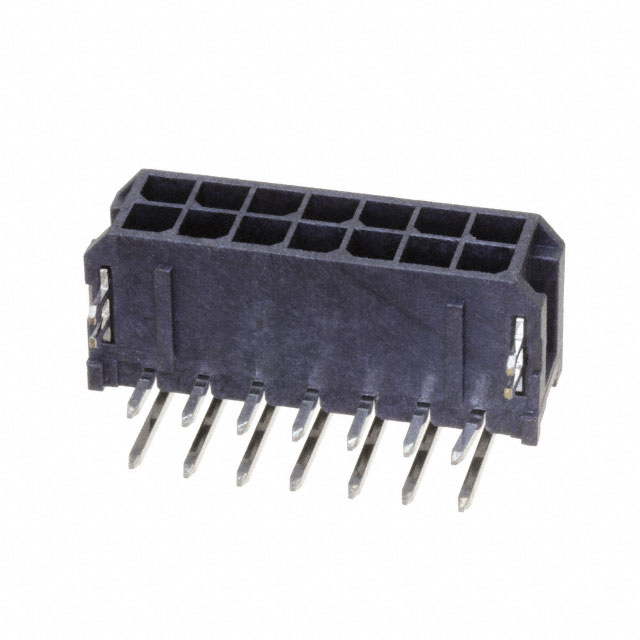

Adam Tech DML-14-A-H-T-A-SBL			0.118 in	3 mm	Shrouded - 4 Wall	Square	All	Board to Cable/Wire	250 V	3 mm	0.118 in	Tin	Locking Ramp	2	Solder	Board Lock	UL94 V-0			Brass	Varies by Wire Gauge	Black	Header	Right Angle Through Hole	14	Male Pin	Thermoplastic	0.126 "	3.2 mm	0.29 in	7.37 mm
