EMMA050400 Series
Manufacturer: CUI Inc.
Beta
⌘K

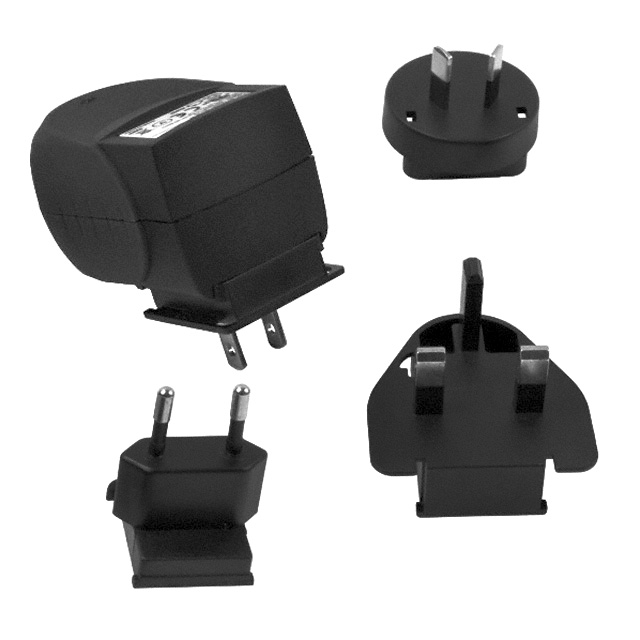

AC/DC WALL MOUNT ADAPTER 5V 20W
| Part | Input Connector | No Load Power Consumption | Voltage - Output | Power (Watts) | Input Type | Approval Agency | Weight [custom] | Weight [custom] | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Standard Number | Output Connector [custom] | Output Connector | Output Connector [custom] | Output Connector [custom] | Efficiency | Polarization | Applications | Cord Length | Cord Length | Form | Region Utilized | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Output Connector [diameter] | Output Connector [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Multi-Blade | 300 mW | 5 V | 20 W | Multi-Blade (Included) | EN FCC SIQ TUV UL | 0.662 lb | 300.28 g | 264 VAC | 90 VAC | 4.28 in | 108.7 mm | 36.7 mm | 1.45 in | 2.44 " | 62 mm | 55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1 | 9.5 mm | Barrel Plug R/A | 5.5 mm | 2.1 mm | Level V | Positive Center | Medical | 1.22 m | 48 in | Wall Mount | International | 40 °C | 0 °C | 4 A | ||
CUI Inc. | Multi-Blade | 300 mW | 5 V | 20 W | Multi-Blade (Included) | EN FCC SIQ TUV UL | 0.662 lb | 300.28 g | 264 VAC | 90 VAC | 4.28 in | 108.7 mm | 36.7 mm | 1.45 in | 2.44 " | 62 mm | 55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1 | Barrel Plug | Level V | Positive Center | Medical | 1.22 m | 48 in | Wall Mount | International | 40 °C | 0 °C | 4 A | 2.1 mm 5.5 mm | 9.5 mm |
