333-046 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 46POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Contact Material	Pitch	Pitch	Flange Feature	Color	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Card Type	Contact Finish	Read Out	Termination	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Gender	Mounting Type	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Features

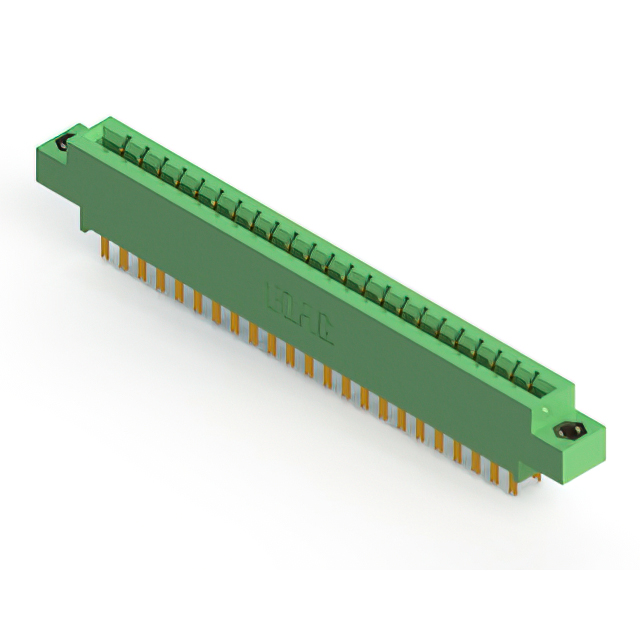

EDAC Inc. 333-046-500-808	Diallyl Phthalate (DAP)	2	Cantilever	Copper Alloy	3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening	Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Solder Eyelet(s)	23	0.25 Ám	10 Áin	Female	Through Hole	46

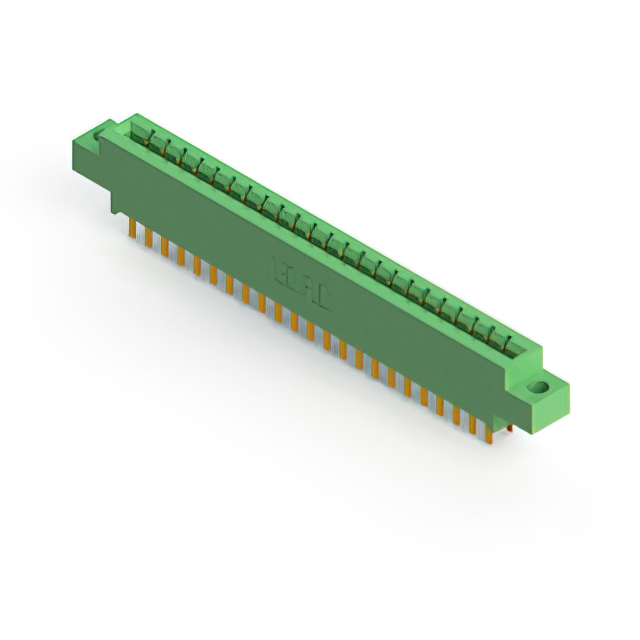

EDAC Inc. 333-046-544-804	Polyester Thermoplastic	2	Cantilever	Copper Alloy	3.96 mm	0.156 in		Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Wire Wrap	23	0.25 Ám	10 Áin	Female	Through Hole	46	0.156 "	3.96 mm
EDAC Inc. 333-046-560-803	Polyester Thermoplastic	2	Cantilever	Copper Alloy	3.96 mm	0.156 in	Floating Bobbin Top Mount Opening	Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Solder	23	0.25 Ám	10 Áin	Female	Board Edge Straddle Mount	46	0.116 "	2.95 mm	Card Extender

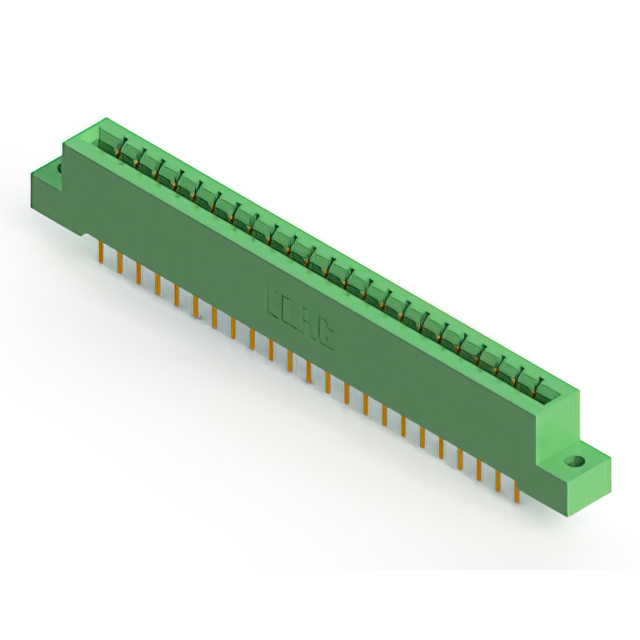

EDAC Inc. 333-046-520-202	Polyester Thermoplastic	2	Cantilever	Copper Alloy	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Solder	23	0.25 Ám	10 Áin	Female	Through Hole	46	0.128 "	3.25 mm
EDAC Inc. 333-046-560-207	Polyester Thermoplastic	2	Cantilever	Copper Alloy	3.96 mm	0.156 in	Flush Mount M3 Threaded Insert Top Opening	Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Solder	23	0.25 Ám	10 Áin	Female	Board Edge Straddle Mount	46			Card Extender
EDAC Inc. 333-046-523-202	Polyester Thermoplastic	2	Cantilever	Copper Alloy	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Solder	23	0.25 Ám	10 Áin	Female	Through Hole	46	0.128 "	3.25 mm
EDAC Inc. 333-046-556-808	Polyester Thermoplastic	2	Cantilever	Copper Alloy	3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening	Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Solder	23	0.25 Ám	10 Áin	Female	Board Edge Straddle Mount	46			Card Extender
EDAC Inc. 333-046-500-802	Diallyl Phthalate (DAP)	2	Cantilever	Copper Alloy	3.96 mm	0.156 in		Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Solder Eyelet(s)	23	0.25 Ám	10 Áin	Female	Through Hole	46	0.128 "	3.25 mm

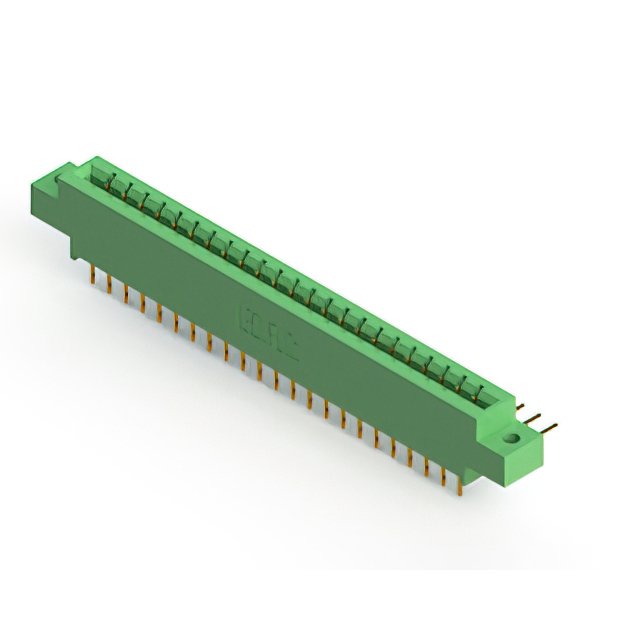

EDAC Inc. 333-046-558-802	Polyester Thermoplastic	2	Cantilever	Copper Alloy	3.96 mm	0.156 in		Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Wire Wrap	23	0.25 Ám	10 Áin	Female	Right Angle Through Hole	46	0.128 "	3.25 mm
EDAC Inc. 333-046-524-803	Polyester Thermoplastic	2	Cantilever	Copper Alloy	3.96 mm	0.156 in	Floating Bobbin Top Mount Opening	Green	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Non Specified - Dual Edge	Gold	Dual	Solder	23	0.25 Ám	10 Áin	Female	Through Hole	46	0.116 "	2.95 mm
