EV10 Series

Catalog

STRONGHOLD RING TERMINAL, VINYL

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Stud/Tab Size	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Color	Termination	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Thickness	Thickness	Terminal Type	Contact Finish	Features	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation Diameter [diameter]	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Termination	Length - Termination	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Overall	Length - Overall

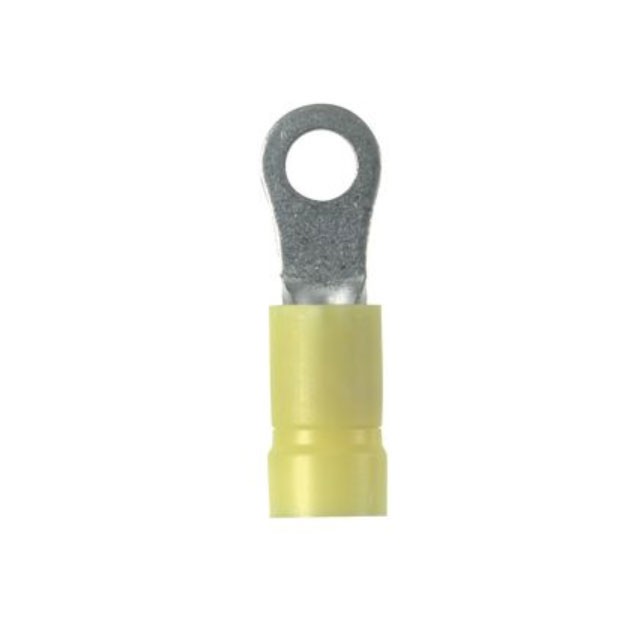

Panduit Corp EV10-10RB-Q	5.84 mm	0.23 in	Vinyl	10 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)	26.67 mm	1.05 in	Copper	0.04 in	1.02 mm	Circular	Tin	Butted Seam	7.87 mm	0.31 in

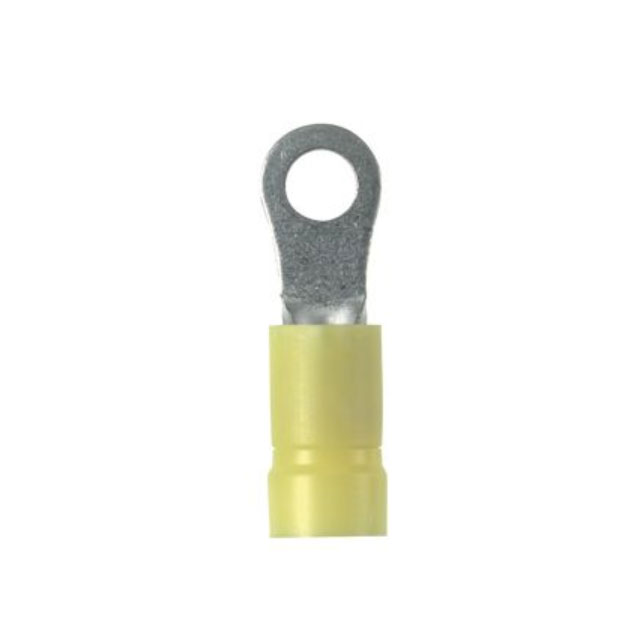

Panduit Corp EV10-38RB-Q	5.84 mm	0.23 in	Vinyl	0.375 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)	33.27 mm	1.31 in	Copper	0.04 in	1.02 mm	Circular	Tin	Butted Seam			14.73 mm	0.58 in
Panduit Corp EV10-8RB-Q	5.84 mm	0.23 in	Vinyl	8 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)	26.67 mm	1.05 in	Copper	0.04 in	1.02 mm	Circular	Tin	Butted Seam	7.87 mm	0.31 in
Panduit Corp EV10-56RB-Q	5.84 mm	0.23 in	Vinyl	0.3125 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)	31.24 mm	1.23 in	Copper	0.04 in	1.02 mm	Circular	Tin	Butted Seam	13.21 mm	0.52 in
Panduit Corp EV10-8FB-Q	0.225 "		Vinyl	8 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)	26.42 mm	1.04 in	Copper			Standard	Tin	Butted Seam					5.72 mm	0.17 in	4.32 mm	0.37 in	9.4 mm

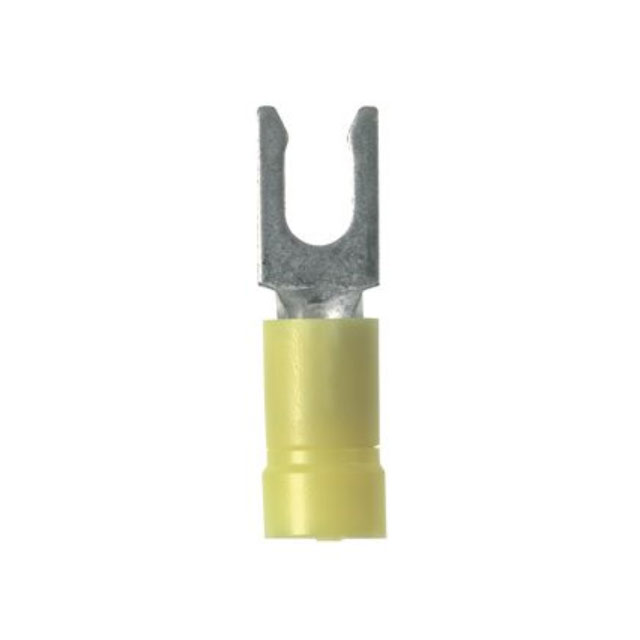

Panduit Corp EV10-8LFB-Q	5.84 mm	0.23 in	Vinyl	8 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)	26.67 mm	1.05 in	Copper			Snap Spring	Tin	Butted Seam Serrated Termination										4.06 mm	0.16 in
Panduit Corp EV10-6RB-Q	5.84 mm	0.23 in	Vinyl	6 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)	26.67 mm	1.05 in	Copper	0.04 in	1.02 mm	Circular	Tin	Butted Seam	7.87 mm	0.31 in

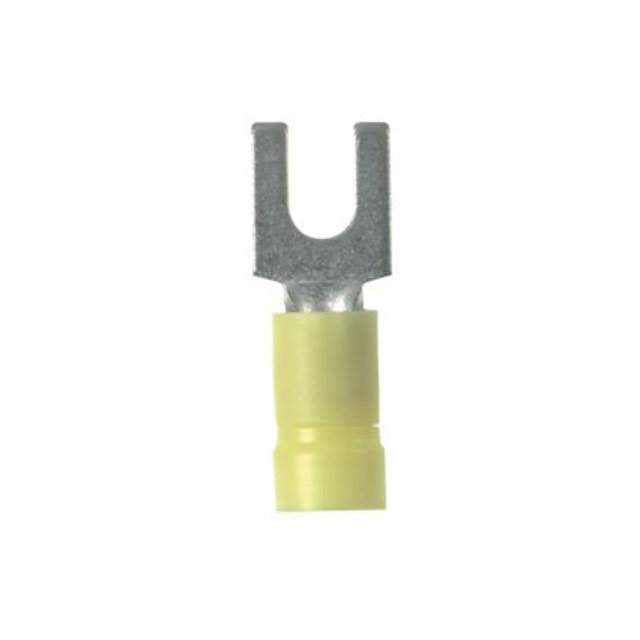

Panduit Corp EV10-10FB-Q	0.225 "		Vinyl	10 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)	26.42 mm	1.04 in	Copper			Standard	Tin	Butted Seam					5.72 mm			0.37 in	9.4 mm	5.08 mm	0.2 in

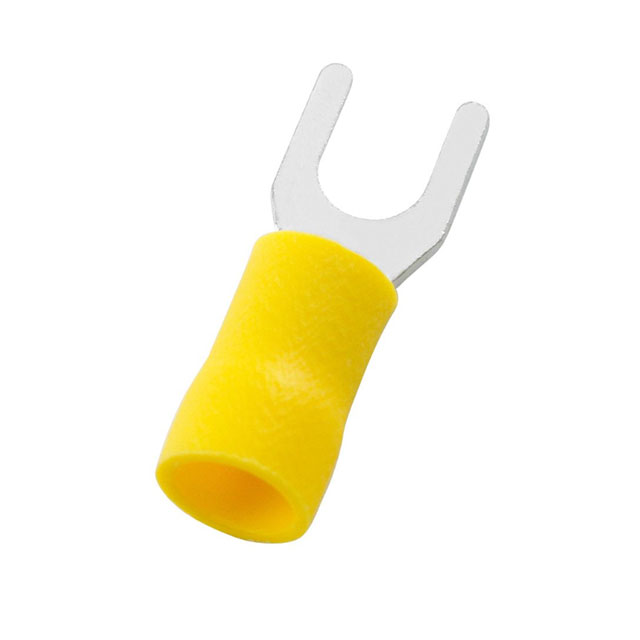

Panduit Corp EV10-56FB-Q	6.1 mm	0.24 "	Vinyl	0.3125 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)			Copper			Standard	Tin	Butted Seam						0.33 in	8.38 mm	0.55 in	13.97 mm			12.95 mm	0.51 in	10.41 mm	0.41 in	1.2 in	30.48 mm

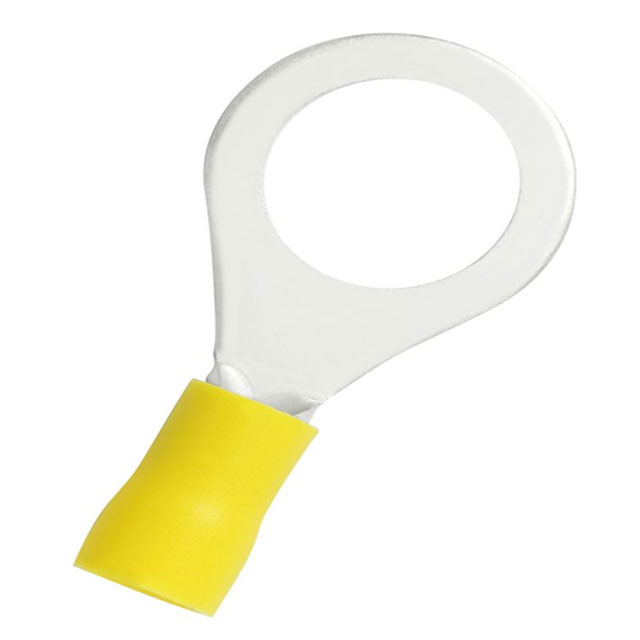

Panduit Corp EV10-12RB-Q	6.1 mm	0.24 "	Vinyl	0.5 Stud	10 AWG	12 AWG	Insulated	Yellow	Crimp	Free Hanging (In-Line)	38.61 mm	1.52 "	Copper	0.039 in	0.99 mm	Circular	Tin	Butted Seam			19.3 mm	0.76 "
