EN5367 Series

Manufacturer: Altera

Catalog

DC DC CONVERTER 0.6-4.9V 29W

Part	Mounting Type	Applications	Voltage - Output 1 [Max] [z]	Voltage - Output 1 [Min] [z]	Voltage - Input (Min) [Min]	Features	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output (Max) [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Voltage - Input (Max) [Max]	Control Features	Supplier Device Package

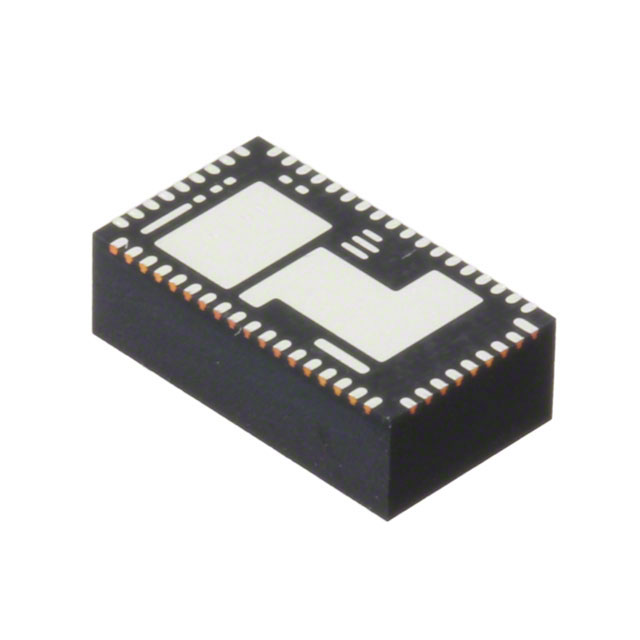

Altera EN5367QI	Surface Mount	ITE (Commercial)	4.9 V	0.6 V	2.5 V	OCP OTP Remote On/Off SCP UVLO	1	85 °C	-40 C	Non-Isolated PoL Module	6 A	54-PowerBFQFN Module	0.12 "	5.5 mm	10 mm	0.39 "	0.22 in	3 mm	93 %	5.5 V	Active High Enable	54-QFN (10x5.5)
Altera EN5367QI	Surface Mount	ITE (Commercial)	4.9 V	0.6 V	2.5 V	OCP OTP Remote On/Off SCP UVLO	1	85 °C	-40 C	Non-Isolated PoL Module	6 A	54-PowerBFQFN Module	0.12 "	5.5 mm	10 mm	0.39 "	0.22 in	3 mm	93 %	5.5 V	Active High Enable	54-QFN (10x5.5)
