D1U-W Series
Manufacturer: Murata Electronics
Beta
⌘K
AC/DC CONVERTER 48V 1600W
| Part | Minimum Load Required | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Power (Watts) | Voltage - Isolation | Number of Outputs | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Current - Output 1 | Applications | Voltage - Output 1 | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

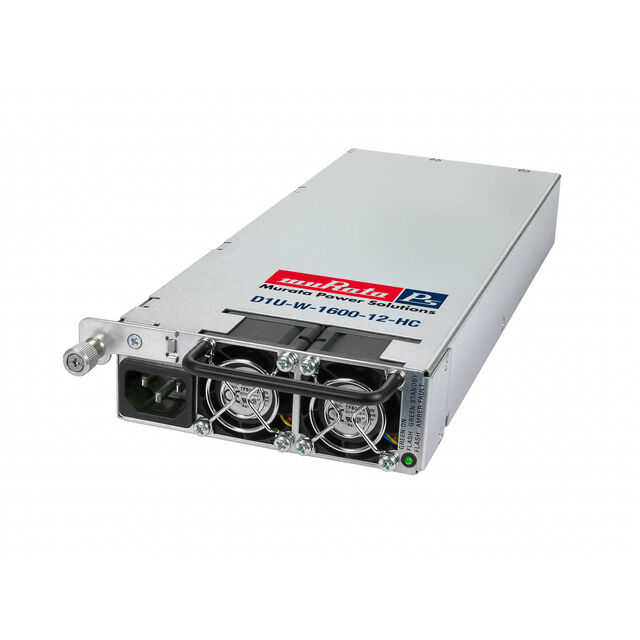

 Murata Electronics | 90 VAC 180 VAC | 140 VAC 264 VAC | 120.7 mm | 304.8 mm | 1.6 " | 12 " | 41 mm | 4.75 " | Front End | 1.6 kW | 3000 V | 1 | 90 % | 50 °C | 0 °C | cCSAus CE TUV | 33 A | ITE (Commercial) | 48 V | Rack Mount | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | |

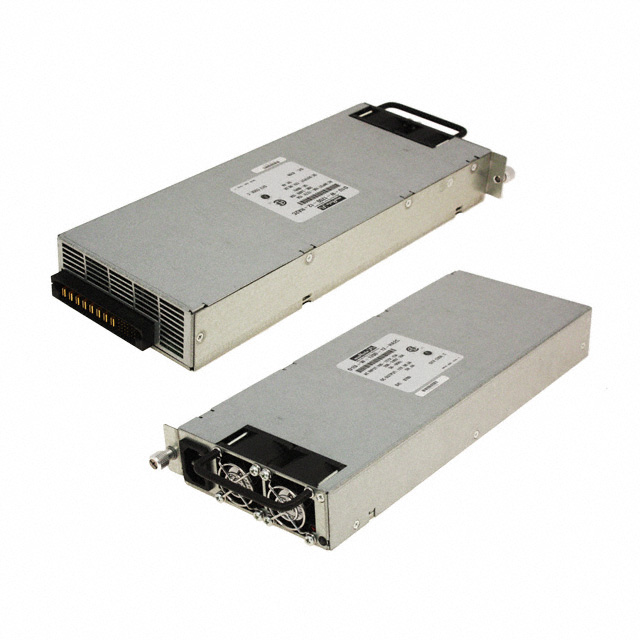

 Murata Electronics | 90 VAC 180 VAC | 140 VAC 264 VAC | 120.7 mm | 304.8 mm | 1.6 " | 12 " | 41 mm | 4.75 " | Front End | 1200 W | 3000 V | 1 | 90 % | 50 °C | 0 °C | cCSAus CE TUV | 24.6 A | ITE (Commercial) | 48 V | Rack Mount | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | |
 Murata Electronics | 90 VAC 180 VAC | 140 VAC 264 VAC | 120.7 mm | 304.8 mm | 1.6 " | 12 " | 41 mm | 4.75 " | Front End | 1.6 kW | 3000 V | 1 | 90 % | 50 °C | 0 °C | cCSAus CE TUV | 131.6 A | ITE (Commercial) | 12 V | Rack Mount | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | |

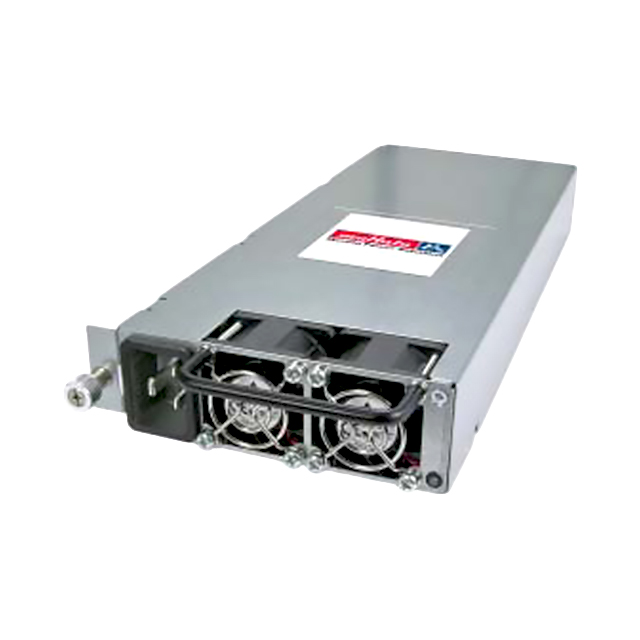

 Murata Electronics | 90 VAC | 264 VAC | 120.6 mm | 304.8 mm | 1.61 " | 12 " | 40.9 mm | 4.75 " | Front End | 2 kW | 3000 V | 1 | 90.6 % | 50 °C | 0 °C | cCSAus CE TUV | 41.3 A | ITE (Commercial) | 48 V | Rack Mount | Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input | |
Murata Electronics | 90 VAC | 264 VAC | Front End | 1200 W | 3000 V | 1 | 90.6 % | 50 °C | 0 °C | 98.3 A | ITE (Commercial) | 12 V | Rack Mount | Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input |
