SCT4018 Series

Catalog

EVALUATION BOARD, SCT4018KR, SIC MOSFET, HALF-BRIDGE GATE DRIVER

Part	Supplied Contents	Type	Contents	Secondary Attributes	Utilized IC / Part	Function	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Package / Case	Vgs (Max) [Max]	Vgs (Max) [Min]	Power Dissipation (Max) [Max]	Operating Temperature	Gate Charge (Qg) (Max) @ Vgs	FET Type

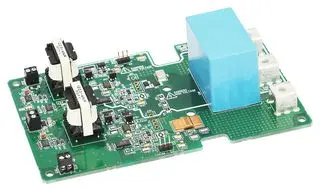

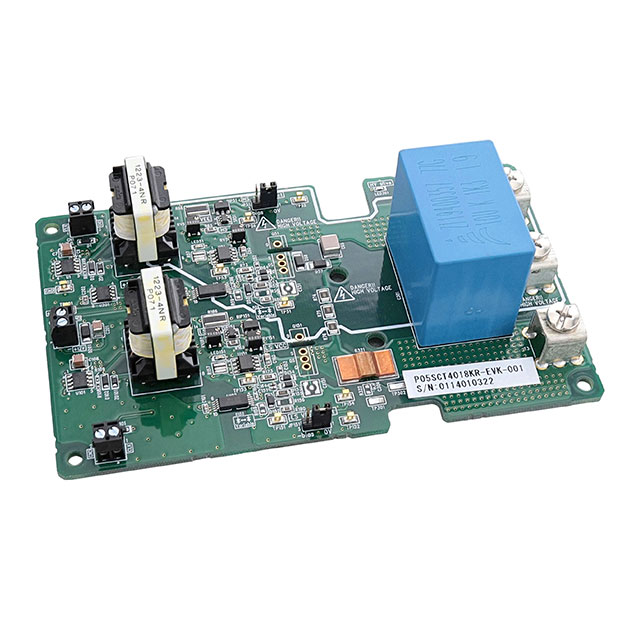

Rohm Semiconductor P05SCT4018KR-EVK-001	Board(s)	Power Management	Board(s)	On-Board LEDs	SCT4018KR	Half H-Bridge Driver (External FET)

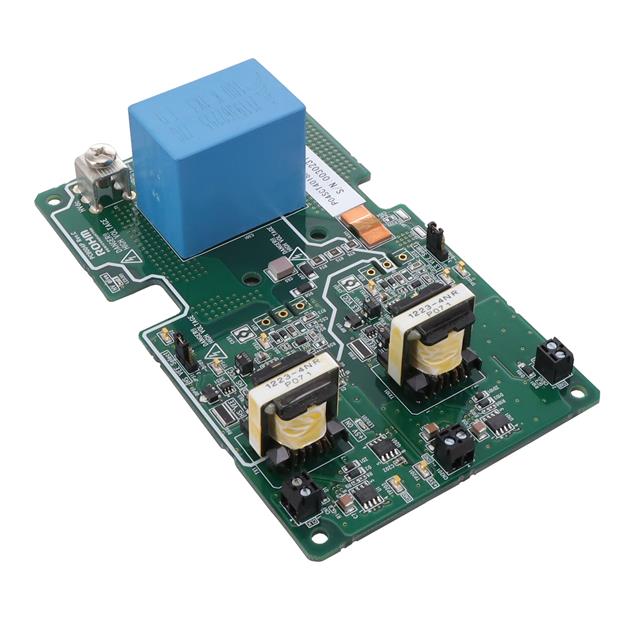

Rohm Semiconductor P04SCT4018KE-EVK-001	Board(s)	Power Management	Board(s)	On-Board LEDs	SCT4018KE	Half H-Bridge Driver (External FET)
Rohm Semiconductor SCT4018KRC15							4.8 V	4532 pF	Through Hole	TO-247-4L	18 V	23.4 mOhm	1.2 kV	TO-247-4	21 V	-4 V	312 W	175 °C	170 nC	N-Channel
