SM02B-SF Series

Catalog

CONN HEADER SMD R/A 2POS 1.8MM

Part	Shrouding	Insulation Height	Insulation Height	Termination	Fastening Type	Contact Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish - Post	Features	Contact Shape	Current Rating (Amps)	Number of Positions	Insulation Color	Style	Material Flammability Rating	Voltage Rating	Connector Type	Applications	Insulation Height [z]	Insulation Height [z]

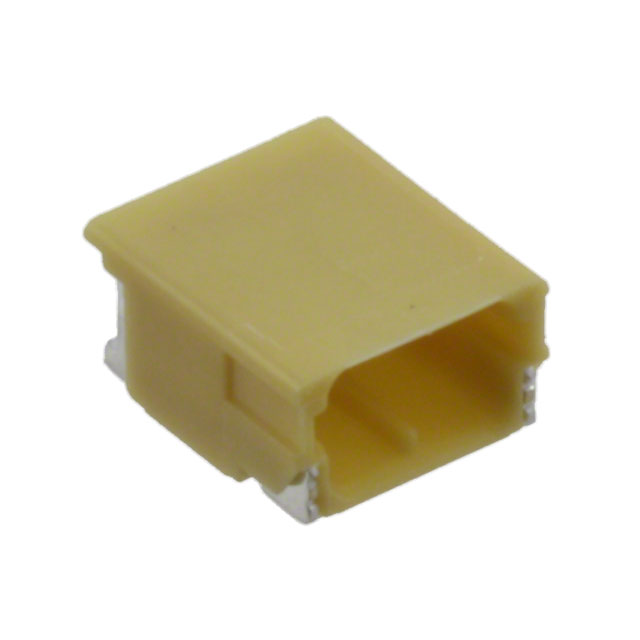

JST Sales America Inc. SM02B-SFHLS-TF	Shrouded - 4 Wall	3 mm	0.118 in	Solder	Detent Lock	Copper Alloy	All	1.8 mm	0.071 in	Male Pin	Thermoplastic	Right Angle Surface Mount	85 °C	-25 °C	1	Tin	Solder Retention	Square	4 A	2	Yellow	Board to Cable/Wire	UL94 V-0	350 VDC	Header

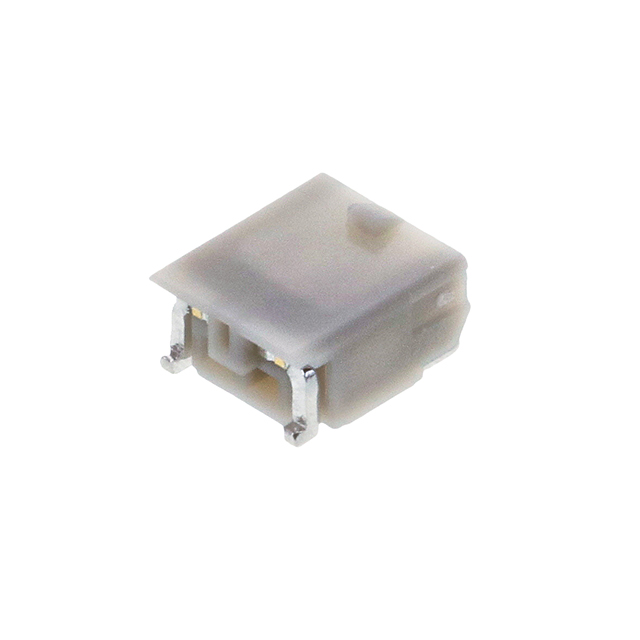

JST Sales America Inc. SM02B-SFKH-TF	Shrouded - 4 Wall			Solder	Locking Ramp	Brass	All	1.8 mm	0.071 in	Male Pin	Nylon 6T Polyamide (PA6T)	Right Angle Surface Mount	85 °C	-25 °C	1	Tin	Solder Retention	Square	4 A	2	Gray	Board to Cable/Wire	UL94 V-0	250 V	Header	General Purpose	3.5 mm	0.138 "

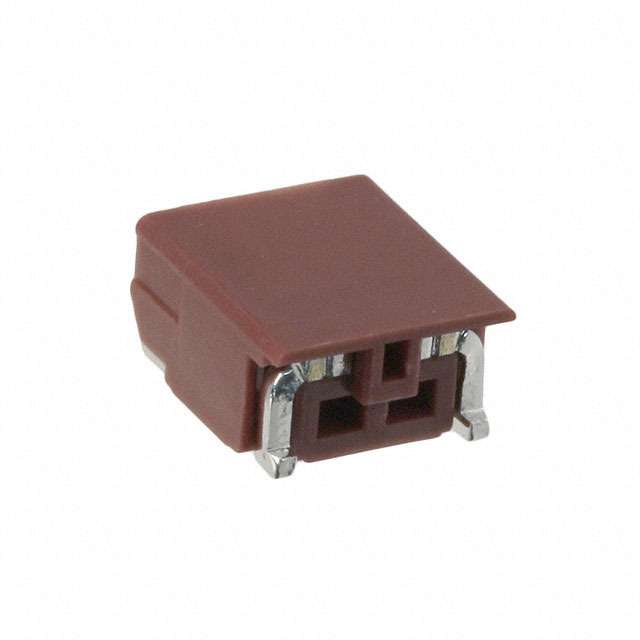

JST Sales America Inc. SM02B-SFHRS-TF	Shrouded - 4 Wall	3 mm	0.118 in	Solder	Detent Lock	Copper Alloy	All	1.8 mm	0.071 in	Male Pin	Thermoplastic	Right Angle Surface Mount	85 °C	-25 °C	1	Tin	Solder Retention	Square	4 A	2	Red	Board to Cable/Wire	UL94 V-0	350 VDC	Header
