745-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 19POS 0.100

Part	Material - Insulation	Termination Rows	Read Out	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Color	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Type	Number of Positions	Contact Finish	Mounting Type	Gender	Termination

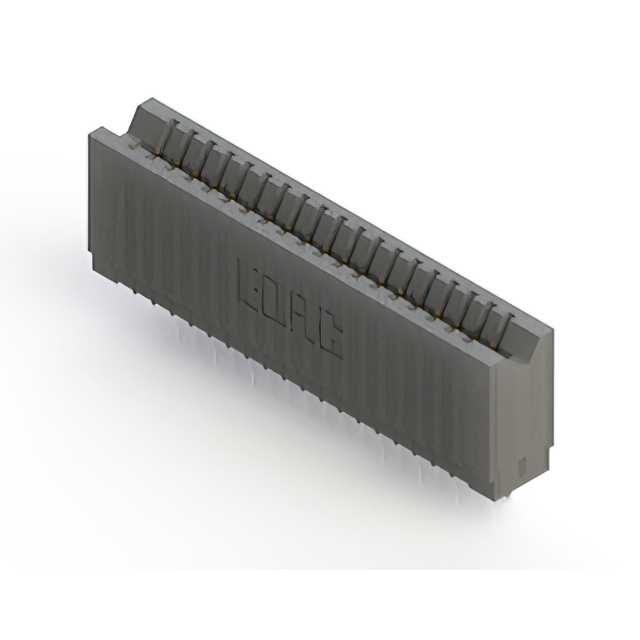

EDAC Inc. 745-019-525-106	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit
EDAC Inc. 745-019-522-101	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit
EDAC Inc. 745-019-520-101	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit
EDAC Inc. 745-019-540-106	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit Wire Wrap

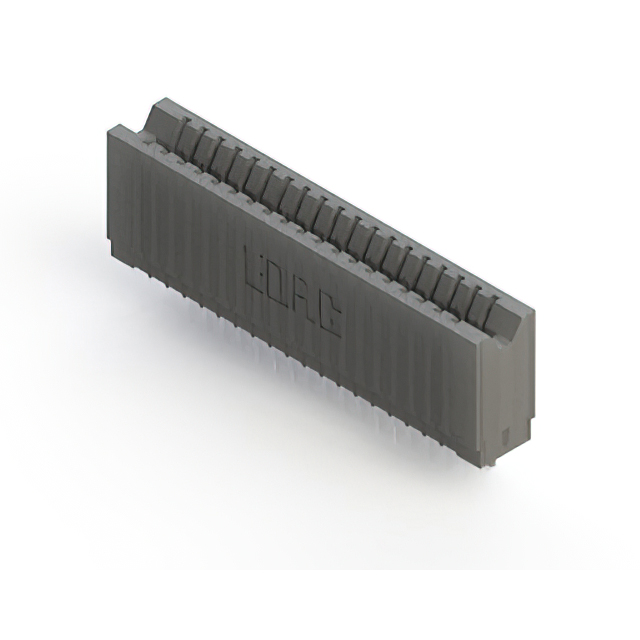

EDAC Inc. 745-019-522-106	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit
EDAC Inc. 745-019-545-106	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit

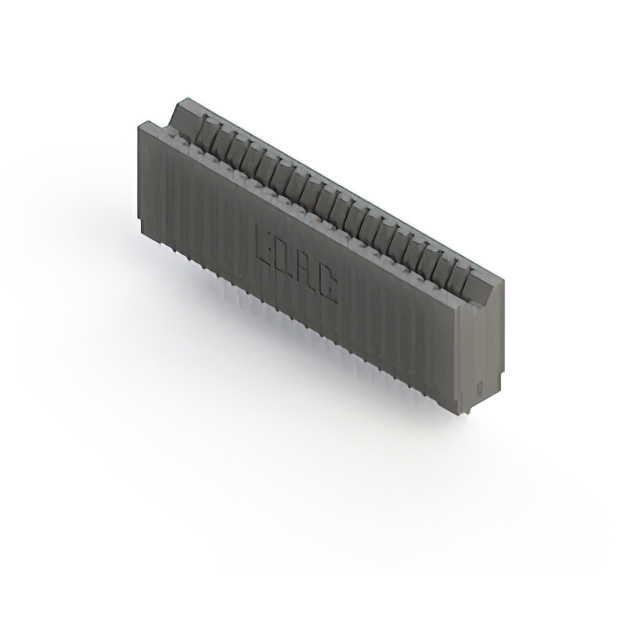

EDAC Inc. 745-019-541-106	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit Wire Wrap

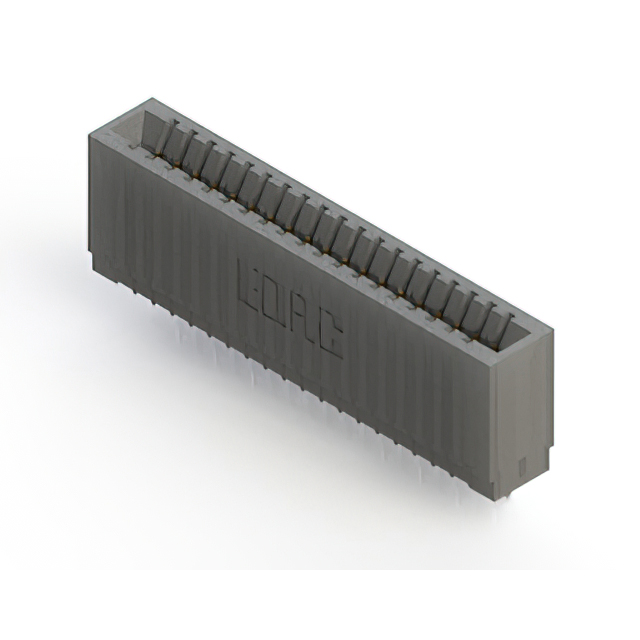

EDAC Inc. 745-019-525-101	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit
EDAC Inc. 745-019-541-101	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit Wire Wrap

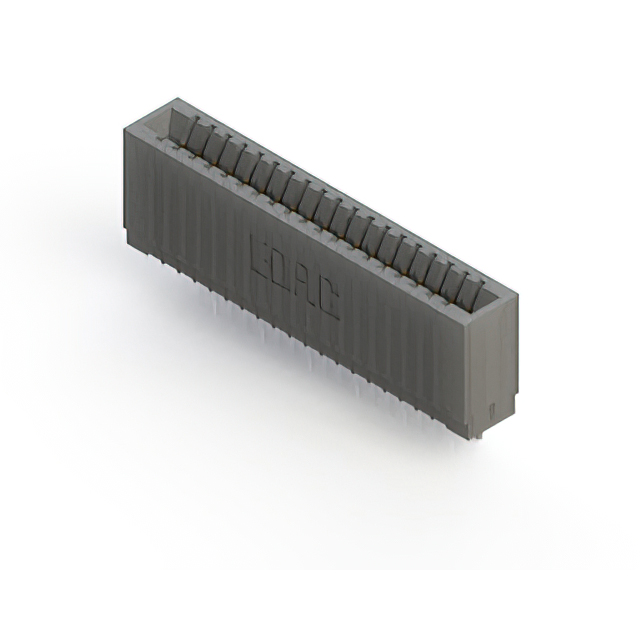

EDAC Inc. 745-019-545-101	Polyester Thermoplastic	1	Single	19	-40 C	105 ░C	1	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Cantilever	19	Gold	Through Hole	Female	Press-Fit
