PHJ.0B Series

Manufacturer: LEMO

Catalog

CONN RCPT MALE 4P GOLD SLDR CUP

Part	Primary Material	Shielding	Fastening Type	Backshell Material, Plating	Connector Type	Shell Finish	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish - Mating	Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Shell Size - Insert	Material Flammability Rating	Number of Positions	Features	Mounting Type	Shell Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Termination	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
LEMO PHJ.0B.304.CLAD35	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	7 A	3.3 mm 4.2 mm	0.13 in 0.165 in	Gold	Silver	Brass	1 µm	39.4 µin	IP50	304	UL94 V-0	4	Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)
LEMO PHJ.0B.304.CYCD42	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	7 A			Gold	Silver	Brass	1 µm	39.4 µin	IP50	304	UL94 V-0	4	Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)	0.126 in	4.2 mm	0.165 in	3.2 mm	Crimp
LEMO PHJ.0B.303.CLAD42	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	8 A			Gold	Silver	Brass	1 µm	39.4 µin	IP50	303	UL94 V-0		Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)	0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PHJ.0B.307.CLAD52Z	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	2.5 A	5.2 mm	4.2 mm	Gold	Silver	Brass	1 µm	39.4 µin	IP50	307	UL94 V-0	7	Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)						0.165 in 0.205 in

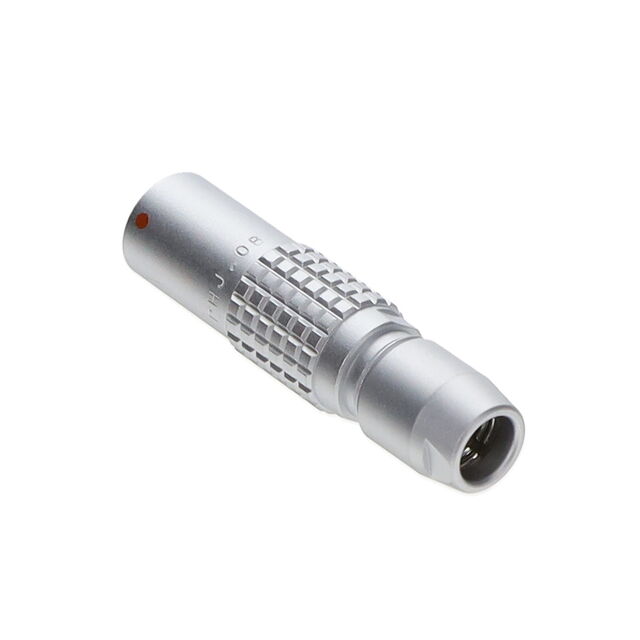

LEMO PHJ.0B.304.CLAD52	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	7 A	5.2 mm	4.2 mm	Gold	Silver	Brass	1 µm	39.4 µin	IP50	304	UL94 V-0	4	Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)						0.165 in 0.205 in

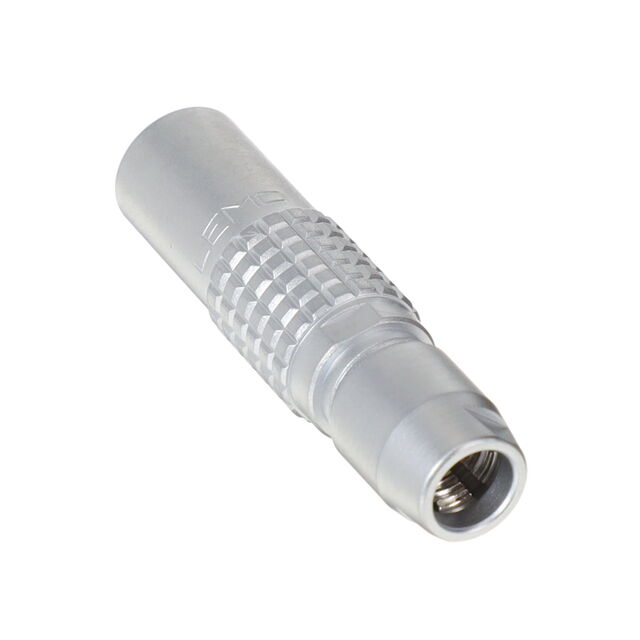

LEMO PHJ.0B.305.CLAD52	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	6.5 A	5.2 mm	4.2 mm	Gold	Silver	Brass	1 µm	39.4 µin	IP50	305	UL94 V-0		Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)						0.165 in 0.205 in
LEMO PHJ.0B.303.CLAD52	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	8 A	5.2 mm	4.2 mm	Gold	Silver	Brass	1 µm	39.4 µin	IP50	303	UL94 V-0		Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)						0.165 in 0.205 in
LEMO PHJ.0B.309.CLAD42	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	2 A			Gold	Silver	Brass	1 µm	39.4 µin	IP50	309	UL94 V-0	9	Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)	0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PHJ.0B.302.CLAD52	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	10 A	5.2 mm	4.2 mm	Gold	Silver	Brass	1 µm	39.4 µin	IP50	302	UL94 V-0	2	Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)						0.165 in 0.205 in
LEMO PHJ.0B.304.CLAD56	Metal	Shielded	Push-Pull	Brass Chrome	Male Pins Receptacle	Chrome	7 A			Gold	Silver	Brass	1 µm	39.4 µin	IP50	304	UL94 V-0	4	Backshell	Free Hanging (In-Line)	Brass	J	-55 °C	250 °C	Polyetheretherketone (PEEK)							0.22 in	5.3 mm	5.6 mm	0.209 in
