627-W15 Series

Manufacturer: EDAC Inc.

Catalog

D SUB CONNECTOR, STANDARD, PLUG, 627W SERIES, 15 CONTACTS, DA, SOLDER CUP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Color	Contact Material	Connector Style	Mounting Type	Contact Finish	Connector Type	Current Rating (Amps)	Flange Feature	Shell Size, Connector Layout	Shell Material, Finish	Features	Contact Type	Material Flammability Rating	Contact Finish Thickness	Number of Rows [custom]	Number of Positions	Ingress Protection	Termination	Contact Finish Thickness	Contact Finish Thickness

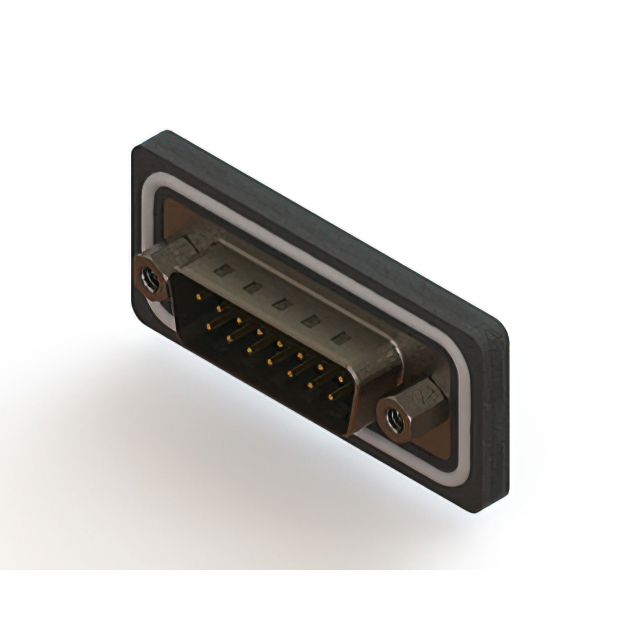

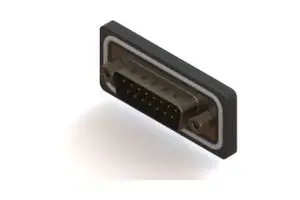

EDAC Inc. 627-W15-222-012	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	Copper Alloy	D-Sub	Free Hanging (In-Line)	Gold	Plug Male Pins	5 A	Board Side (4-40)	2	Nickel Plated Steel	Grounding Indents	Signal and Power	UL94 V-0	Flash	2	15	IP67 - Dust Tight Waterproof

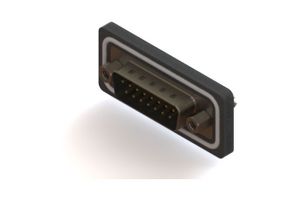

EDAC Inc. 627-W15-220-013	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	Copper Alloy	D-Sub	Panel Mount Through Hole	Gold	Plug Male Pins	5 A	Board Side (4-40)	2	Nickel Plated Steel	Board Lock Grounding Indents	Signal and Power	UL94 V-0	Flash	2	15	IP67 - Dust Tight Waterproof	Solder
EDAC Inc. 627-W15-221-012	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	Copper Alloy	D-Sub	Panel Mount Through Hole	Gold	Plug Male Pins	5 A	Board Side (4-40)	2	Nickel Plated Steel	Grounding Indents	Signal and Power	UL94 V-0	Flash	2	15	IP67 - Dust Tight Waterproof	Solder

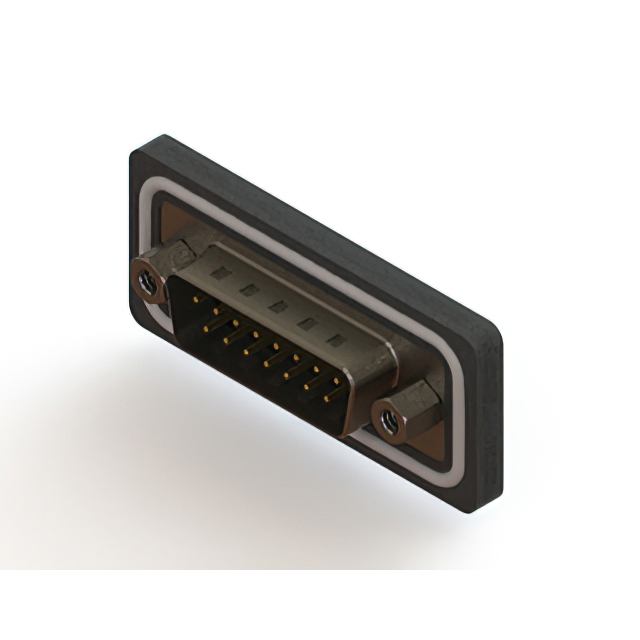

EDAC Inc. 627-W15-620-012	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	Copper Alloy	D-Sub	Panel Mount Through Hole	Gold	Plug Male Pins	5 A	Board Side (4-40)	2	Nickel Plated Steel	Grounding Indents	Signal and Power	UL94 V-0		2	15	IP67 - Dust Tight Waterproof	Solder	30 Áin	0.76 Ám

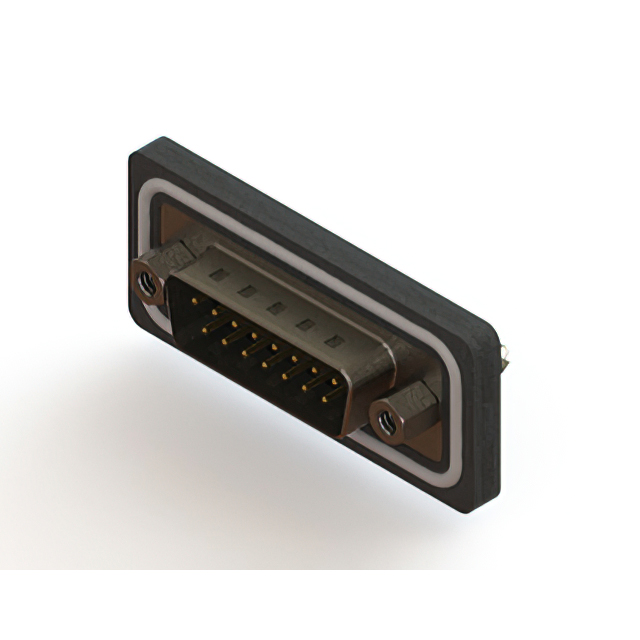

EDAC Inc. 627-W15-320-013	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	Copper Alloy	D-Sub	Panel Mount Through Hole	Gold	Plug Male Pins	5 A	Board Side (4-40)	2	Nickel Plated Steel	Board Lock Grounding Indents	Signal and Power	UL94 V-0		2	15	IP67 - Dust Tight Waterproof	Solder	15 µin	0.38 µm

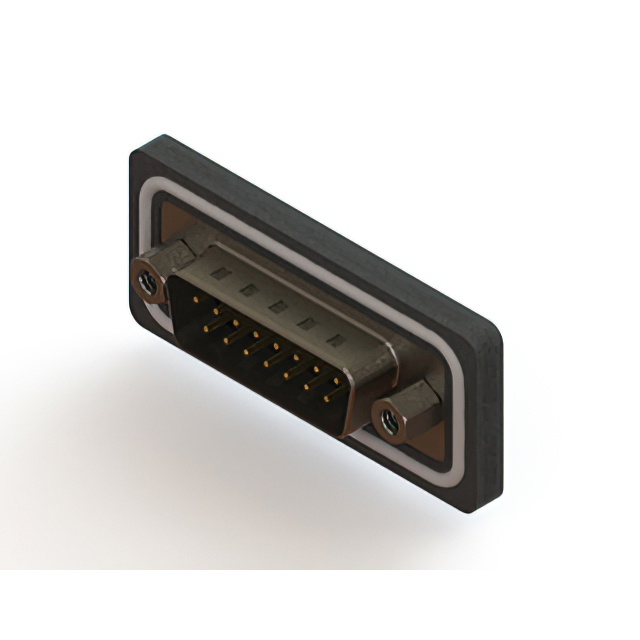

EDAC Inc. 627-W15-320-012	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	Copper Alloy	D-Sub	Panel Mount Through Hole	Gold	Plug Male Pins	5 A	Board Side (4-40)	2	Nickel Plated Steel	Grounding Indents	Signal and Power	UL94 V-0		2	15	IP67 - Dust Tight Waterproof	Solder	15 µin	0.38 µm

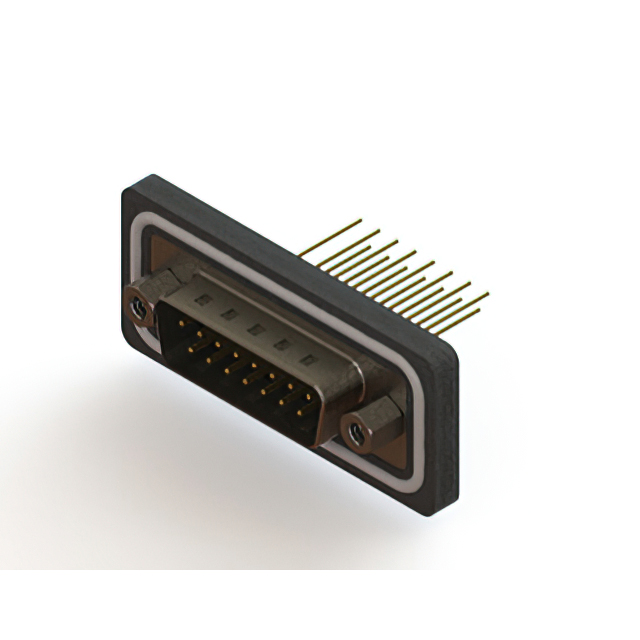

EDAC Inc. 627-W15-621-012	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	Copper Alloy	D-Sub	Panel Mount Through Hole	Gold	Plug Male Pins	5 A	Board Side (4-40)	2	Nickel Plated Steel	Grounding Indents	Signal and Power	UL94 V-0		2	15	IP67 - Dust Tight Waterproof	Solder	30 Áin	0.76 Ám
