2314916 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,B-B,REC,DRHZ,2.1,0.1AU,TB

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Post	Material Flammability Rating	Insulation Color	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fastening Type	Number of Positions Loaded	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Type	Number of Positions	Contact Finish - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions

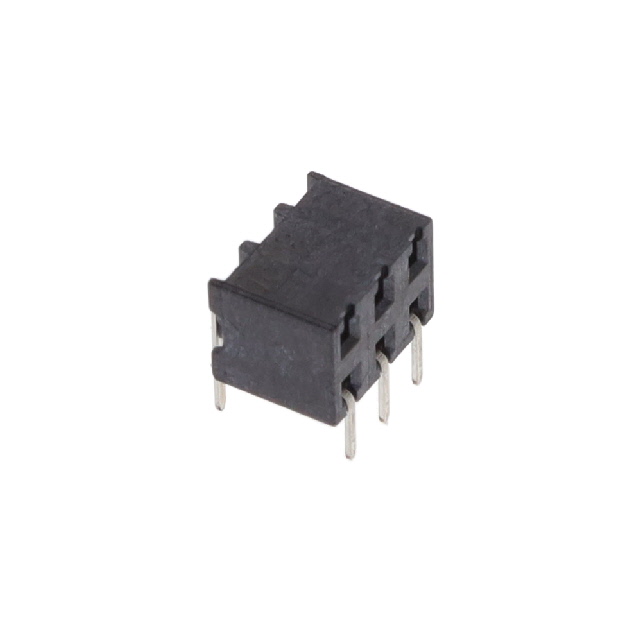

TE Connectivity Raychem Cable Protection 2314916-6	3.94 µin	0.1 µm	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	Black	Square	3 µm	118.1 µin	2	Receptacle	125 °C	-40 °C	Through Hole Right Angle	Push-Pull	All	125 VDC	0.079 in	2 mm	0.083 in	2.11 mm	Phosphor Bronze	0.079 in	2 mm	Solder	Female Socket	6	Gold	0.161 in	4.1 mm	2 A
TE Connectivity Raychem Cable Protection 1-2314916-6	3.94 µin	0.1 µm	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	Black	Square	0.3 µm	12 µin	2	Receptacle	125 °C	-40 °C	Through Hole Right Angle	Push-Pull	All	125 VDC	0.079 in	2 mm	0.083 in	2.11 mm	Phosphor Bronze	0.079 in	2 mm	Solder	Female Socket		Gold	0.161 in	4.1 mm	2 A	16

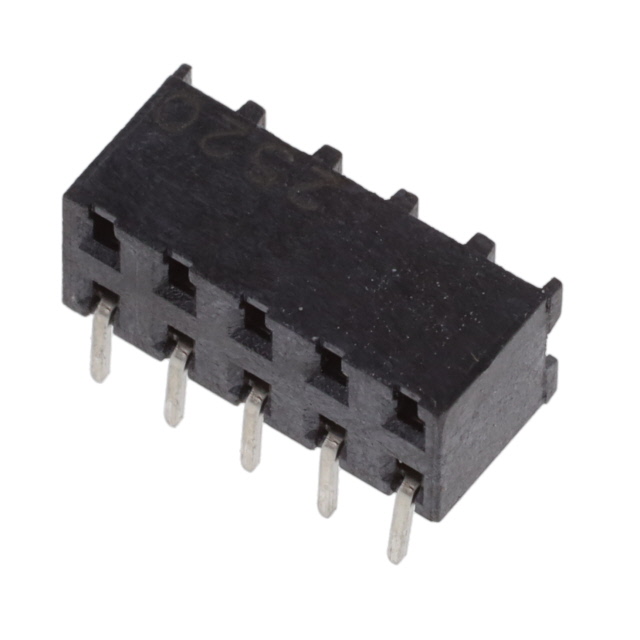

TE Connectivity Raychem Cable Protection 1-2314916-0	3.94 µin	0.1 µm	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	Black	Square	3 µm	118.1 µin	2	Receptacle	125 °C	-40 °C	Through Hole Right Angle	Push-Pull	All	125 VDC	0.079 in	2 mm	0.083 in	2.11 mm	Phosphor Bronze	0.079 in	2 mm	Solder	Female Socket	10	Gold	0.161 in	4.1 mm	2 A

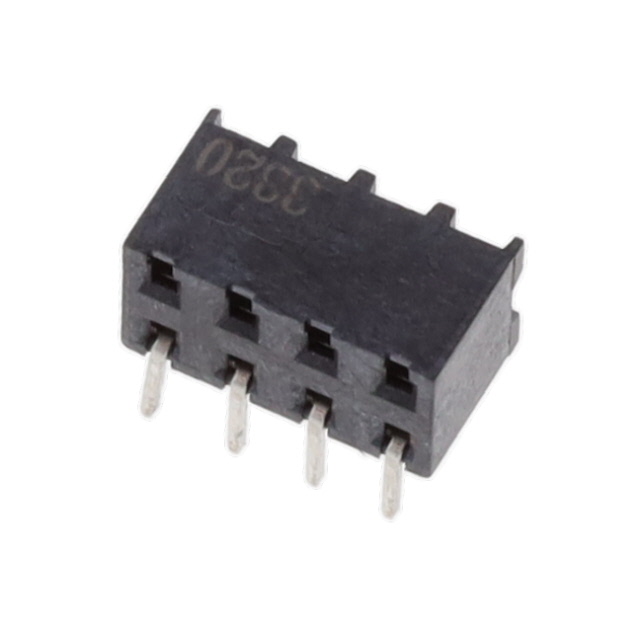

TE Connectivity Raychem Cable Protection 2314916-8	3.94 µin	0.1 µm	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	Black	Square	0.3 µm	12 µin	2	Receptacle	125 °C	-40 °C	Through Hole Right Angle	Push-Pull	All	125 VDC	0.079 in	2 mm	0.083 in	2.11 mm	Phosphor Bronze	0.079 in	2 mm	Solder	Female Socket	8	Gold	0.161 in	4.1 mm	2 A

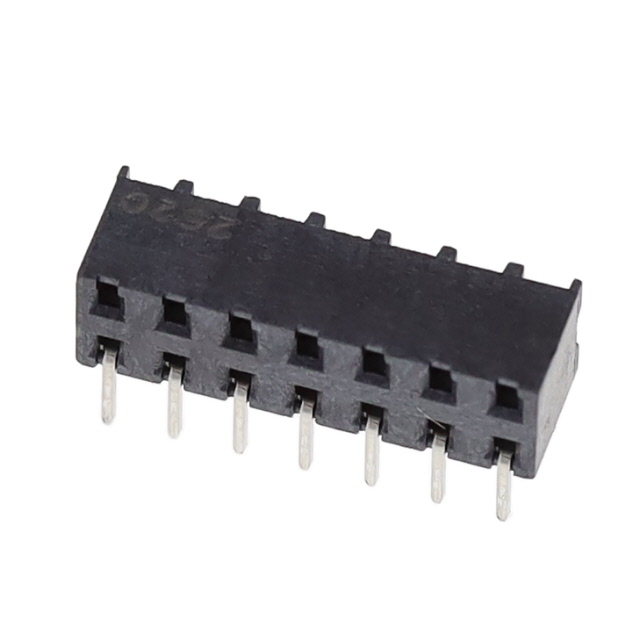

TE Connectivity Raychem Cable Protection 1-2314916-4	3.94 µin	0.1 µm	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	Black	Square	0.3 µm	12 µin	2	Receptacle	125 °C	-40 °C	Through Hole Right Angle	Push-Pull	All	125 VDC	0.079 in	2 mm	0.083 in	2.11 mm	Phosphor Bronze	0.079 in	2 mm	Solder	Female Socket	14	Gold	0.161 in	4.1 mm	2 A

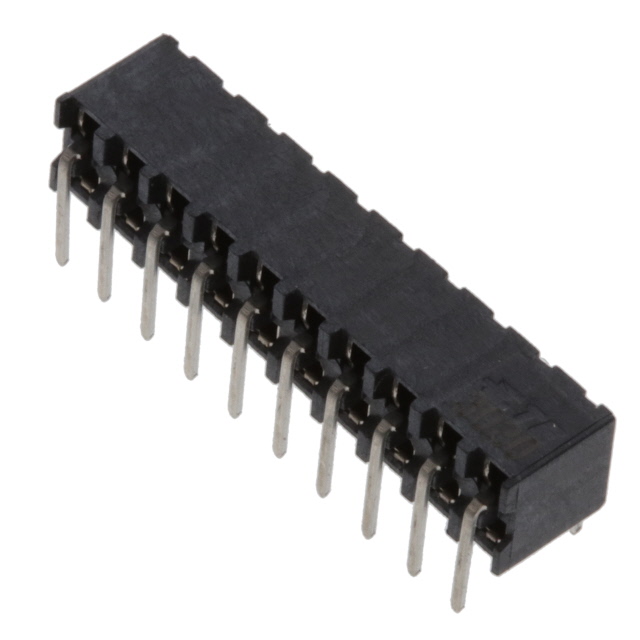

TE Connectivity Raychem Cable Protection 2-2314916-0	3.94 µin	0.1 µm	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	Black	Square	0.3 µm	12 µin	2	Receptacle	125 °C	-40 °C	Through Hole Right Angle	Push-Pull	All	125 VDC	0.079 in	2 mm	0.083 in	2.11 mm	Phosphor Bronze	0.079 in	2 mm	Solder	Female Socket	20	Gold	0.161 in	4.1 mm	2 A
