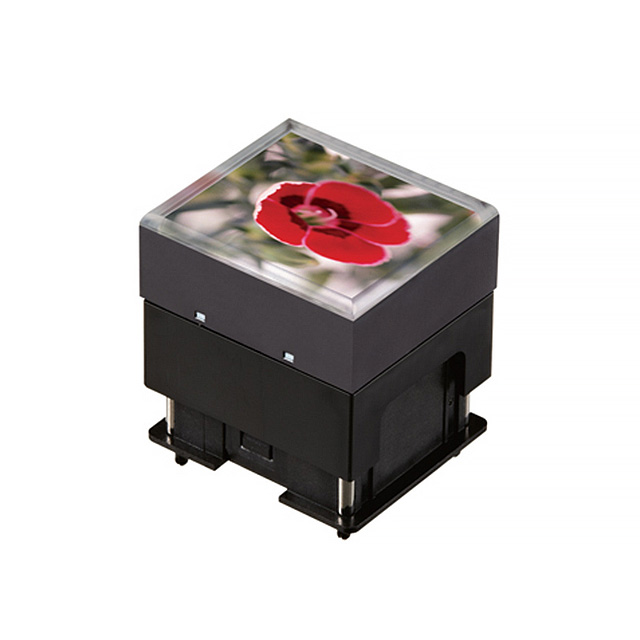

ISF15ACP Series
Manufacturer: NKK Switches
Beta
⌘K
PROGRAMMABLE DISPLAY SWITCH, SMARTSWITCH IS SERIES, SPST-NO, THROUGH HOLE, 100 MA, 12 V, OLED
| Part | Travel Range [Max] | Operating Force | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Face Size [x] | Face Size [y] | Pixel Format [y] | Pixel Format [x] | Termination Style | Type | Supply Voltage [Min] | Supply Voltage [Max] | Switch Function | Viewing Area [x] | Viewing Area [y] | Circuit | Contact Rating @ Voltage | Display Mode | Display Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1.8 mm | 204 gf | Through Hole | -20 ░C | 70 °C | 23.13 mm | 20.59 mm | 64 | 96 | PC Pin | Pushbutton OLED | 2.4 VDC | 3.5 VDC | Off-Mom | 21.3 mm | 18.7 mm | SPST-NO | 0.1 A 12 VDC | Passive Matrix | 65536 Colors |
