ACDC04 Series

Catalog

LED DISPLAYS & ACCESSORIES DOUBLE RED 640NM COMMON CATHODE

Part	Current - Test	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Voltage - Forward (Vf) (Typ)	Display Type	Millicandela Rating	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Power Dissipation (Max) [Max]	Common Pin	Color

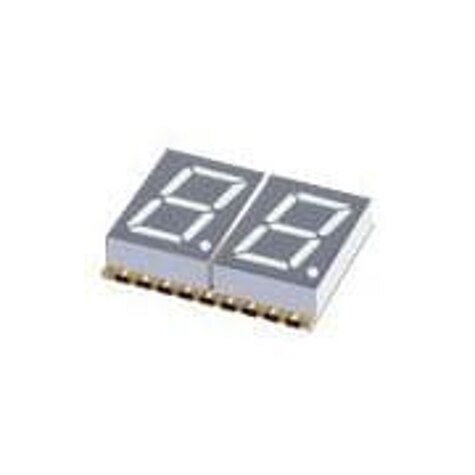

Kingbright ACDC04-41SRWA-F01	20 mA	660 nm	10.16 mm	0.4 in	2	1.85 V	7-Segment	14 mcd	20-SMD No Lead	0.728 in	0.148 in	18.5 mm	0.512 in	13 mm	3.75 mm	75 mw	Common Cathode	Red
Kingbright ACDC04-41SGWA-F01	20 mA	565 nm	10.16 mm	0.4 in	2	2.2 V	7-Segment	4.7 mcd	20-SMD No Lead	0.728 in	0.148 in	18.5 mm	0.512 in	13 mm	3.75 mm	62.5 mW	Common Cathode	Green

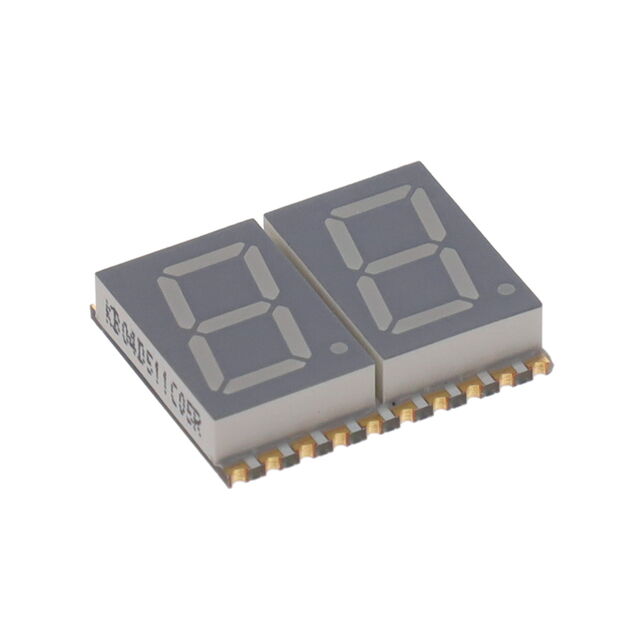

Kingbright ACDC04-41SURKWA-F01	20 mA	650 nm	10.16 mm	0.4 in	2	1.95 V	7-Segment	27 mcd	20-SMD No Lead	0.728 in	0.148 in	18.5 mm	0.512 in	13 mm	3.75 mm	75 mw	Common Cathode	Red
Kingbright ACDC04-41SEKWA-F01	20 mA	610 nm	10.16 mm	0.4 in	2	2.1 V	7-Segment	60 mcd	20-SMD No Lead	0.728 in	0.148 in	18.5 mm	0.512 in	13 mm	3.75 mm	75 mw	Common Cathode
