NRPN011 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER R/A 1POS
| Part | Contact Finish Thickness - Post | Contact Length - Mating | Contact Length - Mating | Contact Type | Contact Material | Contact Finish Thickness - Mating | Voltage Rating | Insulation Material | Insulation Color | Insulation Height [z] | Insulation Height [z] | Connector Type | Style | Number of Positions | Current Rating (Amps) | Number of Positions Loaded | Contact Finish - Post | Fastening Type | Termination | Contact Finish - Mating | Contact Length - Post [custom] | Contact Length - Post | Shrouding | Contact Shape | Number of Rows | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

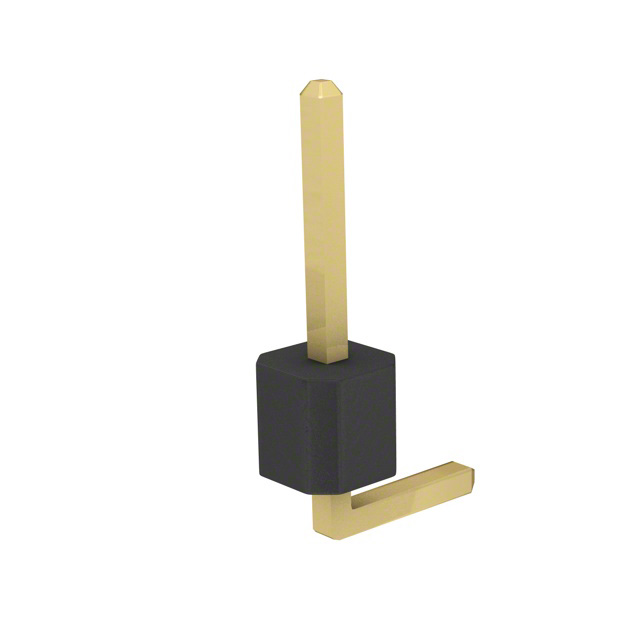

 Sullins Connector Solutions | Flash | 0.141 in | 3.6 mm | Male Pin | Brass | Flash | 150 VDC | Nylon 6T Polyamide (PA6T) | Black | 2 mm | 0.079 in | Header | Board to Board Cable | 1 | 2 A | All | Gold | Push-Pull | Solder | Gold | 0.11 in | 2.79 mm | Unshrouded | Square | 1 | Right Angle Through Hole | -40 C | 105 ░C | UL94 V-0 | ||

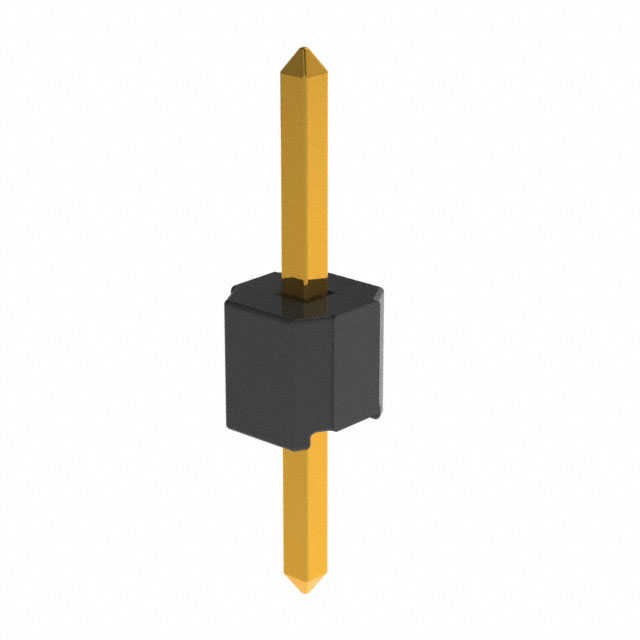

 Sullins Connector Solutions | Flash | 0.141 in | 3.6 mm | Male Pin | Brass | Flash | 150 VDC | Nylon 6T Polyamide (PA6T) | Black | 2 mm | 0.079 in | Header | Board to Board Cable | 1 | 2 A | All | Gold | Push-Pull | Solder | Gold | 0.11 in | 2.79 mm | Unshrouded | Square | 1 | Through Hole | -40 C | 105 ░C | UL94 V-0 | 8.4 mm | 0.331 in |
