2864080 Series
Manufacturer: NorComp Inc.
Beta
⌘K

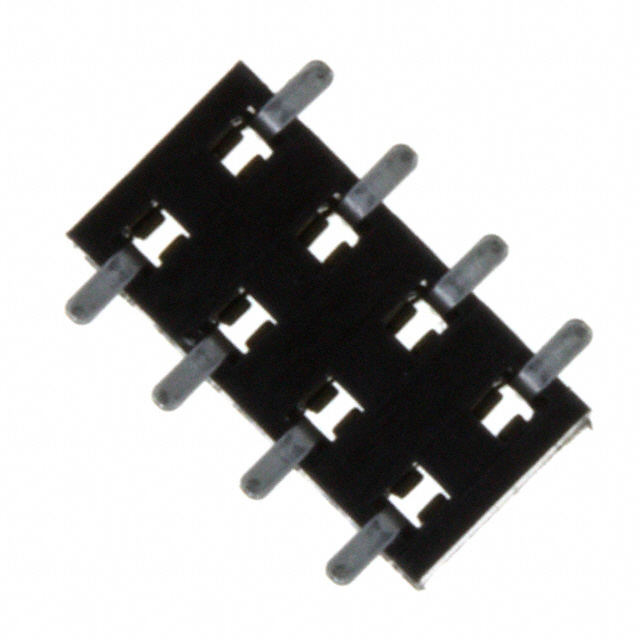

28640806RP2 ROHS COMPLIANT: YES
| Part | Contact Shape | Contact Material | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Mounting Type | Insulation Color | Material Flammability Rating | Number of Positions Loaded | Number of Rows [custom] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Type | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Connector Type | Fastening Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | 2.54 µm | 100 µin | Solder | Surface Mount | Black | UL94 V-0 | All | 2 | 8 | -40 C | 105 ░C | Gold | Female Socket | 0.177 in | 4.5 mm | 0.079 " | 2 mm | 2 mm | 0.079 in | Flash | Receptacle | Push-Pull | Tin |
