D5W5P36 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

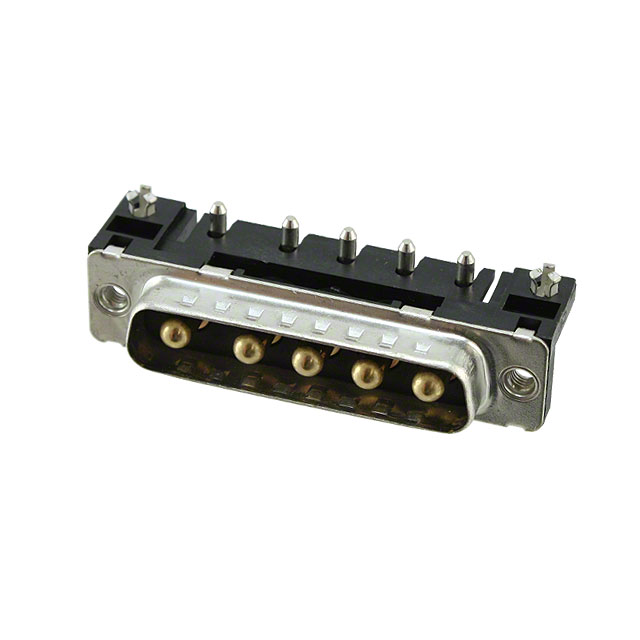

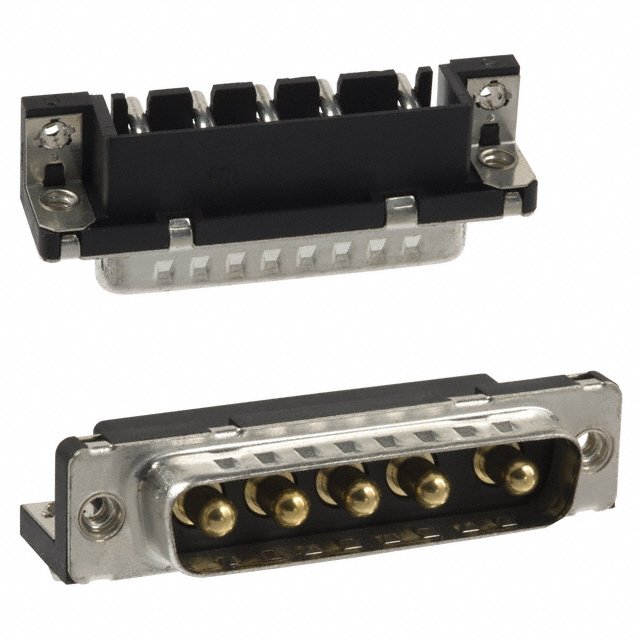

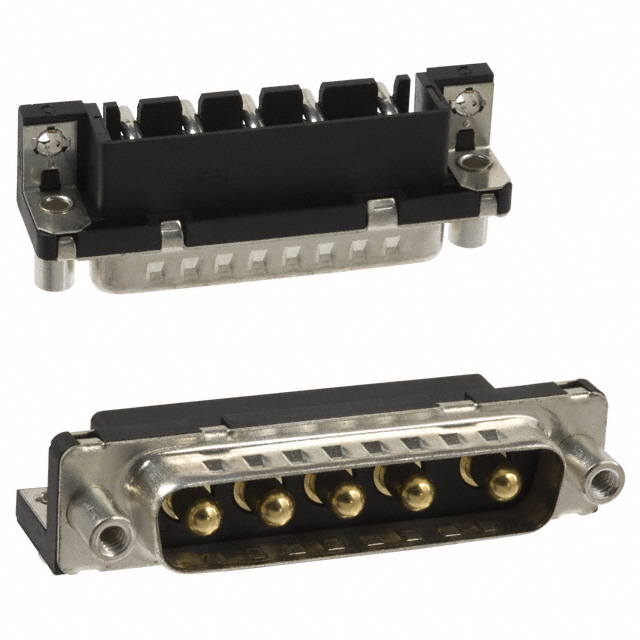

CONN D-SUB PLUG 5POS R/A SOLDER
| Part | Material Flammability Rating | Dielectric Material | Features | Termination | Shell Size, Connector Layout | Shell Size, Connector Layout | Current Rating (Amps) | Flange Feature | Connector Type | Backset Spacing | Backset Spacing | Voltage Rating | Contact Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Connector Style | Number of Rows | Number of Positions [custom] | Color | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | UL94 V-0 | Thermoplastic | Board Lock Grounding Indents Mounting Brackets | Solder | 5W5 | 3 | 30 A | Female Screwlock (4-40) Mating Side | Male Pins Plug | 9.5 mm | 0.374 in | 300 VDC | Power | Through Hole Right Angle | -55 °C | 125 °C | Brass | 0.76 Ám | 30 Áin | Gold | Combo D-Sub | 1 | 5 | Black | |
 Amphenol ICC (FCI) | UL94 V-0 | Thermoplastic | Board Lock Grounding Indents Mounting Brackets | Solder | 5W5 | 3 | 30 A | Housing/Shell (4-40) | Male Pins Plug | 9.5 mm | 0.374 in | 300 VDC | Power | Through Hole Right Angle | -55 °C | 125 °C | Brass | 0.76 Ám | 30 Áin | Gold | Combo D-Sub | 1 | 5 | Black | |
 Amphenol ICC (FCI) | UL94 V-0 | Thermoplastic | Board Lock Grounding Indents Mounting Brackets | Solder | 5W5 | 3 | 30 A | Housing/Shell (M3) | Male Pins Plug | 9.5 mm | 0.374 in | 300 VDC | Power | Through Hole Right Angle | -55 °C | 125 °C | Brass | 0.76 Ám | 30 Áin | Gold | Combo D-Sub | 1 | 5 | Black | Nickel Plated Steel |
Amphenol ICC (FCI) | UL94 V-0 | Thermoplastic | Board Lock Grounding Indents Mounting Brackets | Solder | 5W5 | 3 | 30 A | Female Screwlock (4-40) Mating Side | Male Pins Plug | 9.5 mm | 0.374 in | 300 VDC | Power | Through Hole Right Angle | -55 °C | 125 °C | Brass | 0.76 Ám | 30 Áin | Gold | Combo D-Sub | 1 | 5 | Black | |
Amphenol ICC (FCI) | UL94 V-0 | Thermoplastic | Board Lock Grounding Indents Mounting Brackets | Solder | 5W5 | 3 | 30 A | Female Screwlock (4-40) Mating Side | Male Pins Plug | 9.5 mm | 0.374 in | 300 VDC | Power | Through Hole Right Angle | -55 °C | 125 °C | Brass | 0.76 Ám | 30 Áin | Gold | Combo D-Sub | 1 | 5 | Black | Nickel Plated Steel |
