CGM-1180 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K
COAX ADAPT SMA TO SMA
| Part | Dielectric Material | Body Finish | Body Material | Center Contact Material | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Conversion Type | Style | Impedance | Frequency - Max [Max] | Adapter Type | Adapter Series | Mounting Type | Convert To (Adapter End) | Convert From (Adapter End) | Center Contact Plating | Center Gender | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Polytetrafluoroethylene (PTFE) | Gold | Brass | Beryllium Copper | 0.5 dB | 85 °C | -40 C | Same Series | Straight | 50 Ohms | 18 GHz | Plug to Jack | SMA to SMA | Free Hanging (In-Line) | SMA Plug Male Pin | Female Socket SMA Jack | Gold | ||

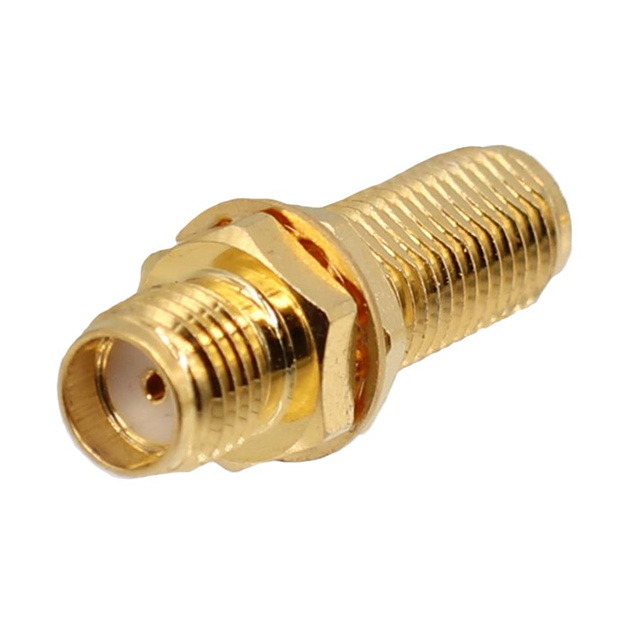

 Cinch Connectivity Solutions | Polytetrafluoroethylene (PTFE) | Gold | Brass | Beryllium Copper | 0.5 dB | 85 °C | -40 C | Same Series | Straight | 50 Ohms | 18 GHz | Jack to Jack | SMA to SMA | Panel Mount | SMA Jack Female Socket | Female Socket SMA Jack | Gold | Female to Female | Bulkhead |
