226BJV Series

Manufacturer: Tusonix a Subsidiary of CTS Electronic Components

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Circuit	Features	Contact Rating @ Voltage	Actuator Height off PCB, Vertical	Actuator Orientation	Operating Force	Outline [y]	Outline [x]	Actuator Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Mechanical Life	Mounting Type	Illumination	Termination Style

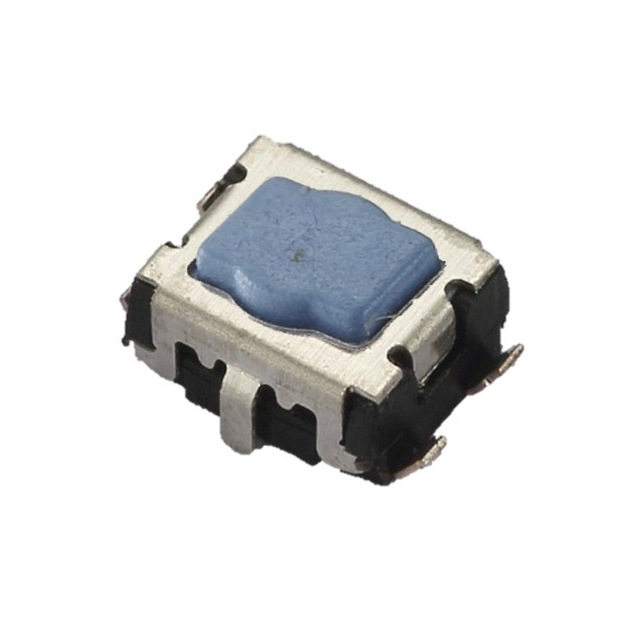

Tusonix a Subsidiary of CTS Electronic Components 226BJVADRG	SPST-NO	Grounding Pin Tactile Feedback	0.05 A 12 VDC	1.7 mm	Top Actuated	350 gf	2.9 mm	3.5 mm	Standard	Off-Mom	85 °C	-40 °C	0.15 mm	200000 Cycles	Surface Mount	Non-Illuminated	J Lead

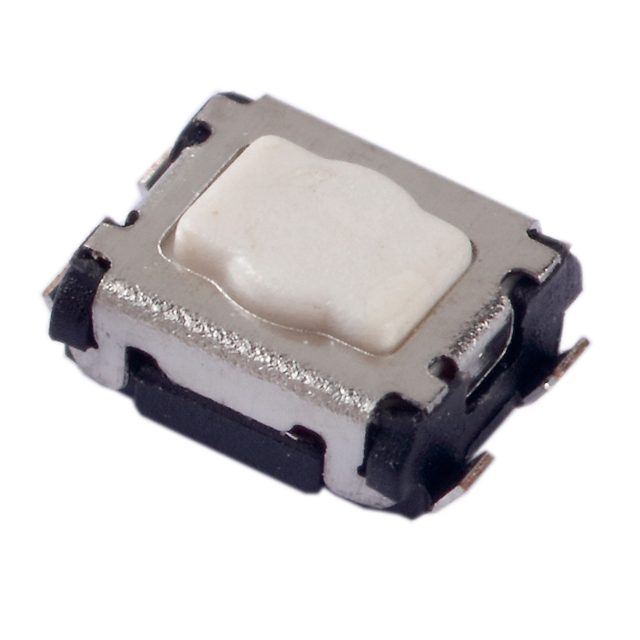

Tusonix a Subsidiary of CTS Electronic Components 226BJVACR	SPST-NO	Tactile Feedback	0.05 A 12 VDC	1.7 mm	Top Actuated	200 gf	2.9 mm	3.5 mm	Standard	Off-Mom	85 °C	-40 °C	0.15 mm	200000 Cycles	Surface Mount	Non-Illuminated	J Lead

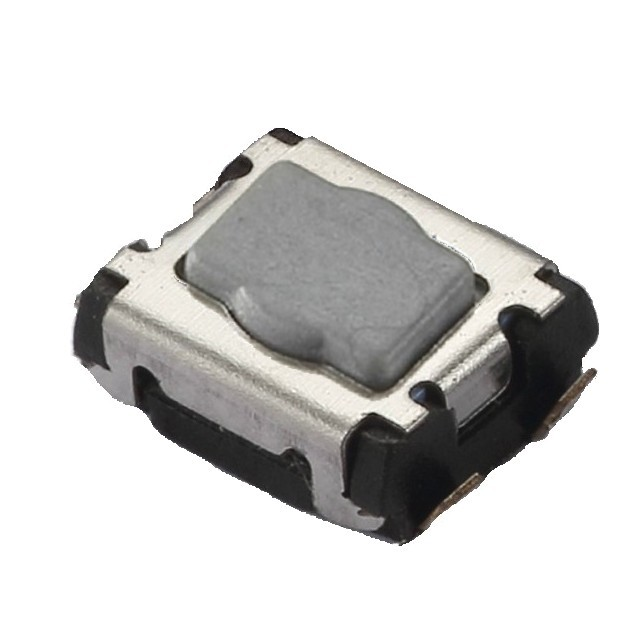

Tusonix a Subsidiary of CTS Electronic Components 226BJVABR	SPST-NO	Tactile Feedback	0.05 A 12 VDC	1.7 mm	Top Actuated		2.9 mm	3.5 mm	Standard	Off-Mom	85 °C	-40 °C	0.15 mm	200000 Cycles	Surface Mount	Non-Illuminated	J Lead

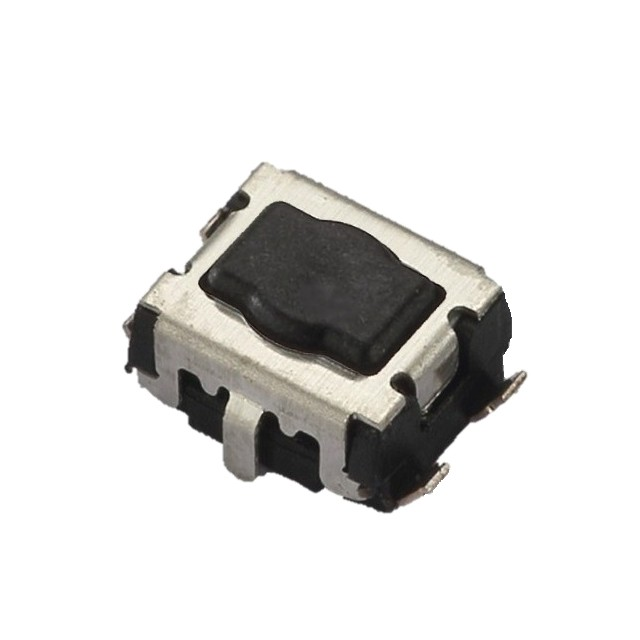

Tusonix a Subsidiary of CTS Electronic Components 226BJVAARG	SPST-NO	Grounding Pin Tactile Feedback	0.05 A 12 VDC	1.7 mm	Top Actuated	100 gf	2.9 mm	3.5 mm	Standard	Off-Mom	85 °C	-40 °C	0.15 mm	1000000 Cycles	Surface Mount	Non-Illuminated	J Lead

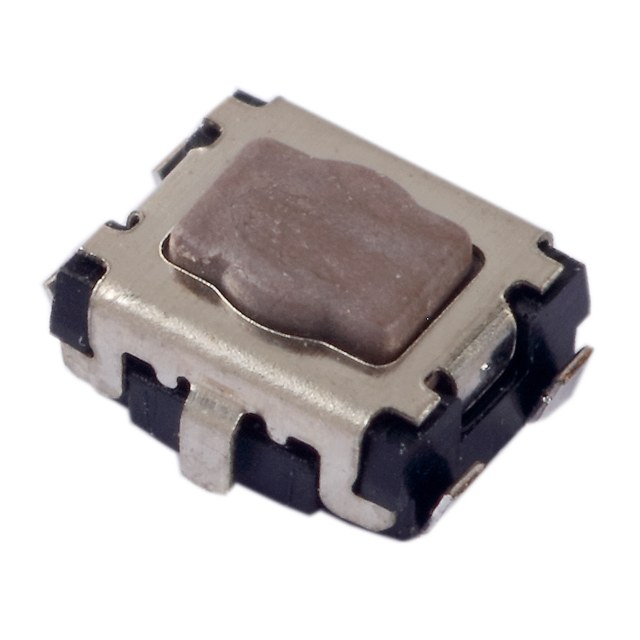

Tusonix a Subsidiary of CTS Electronic Components 226BJVAERG	SPST-NO	Grounding Pin Tactile Feedback	0.05 A 12 VDC	1.7 mm	Top Actuated	0.5 kgf	2.9 mm	3.5 mm	Standard	Off-Mom	85 °C	-40 °C	0.15 mm	500000 Cycles	Surface Mount	Non-Illuminated	J Lead

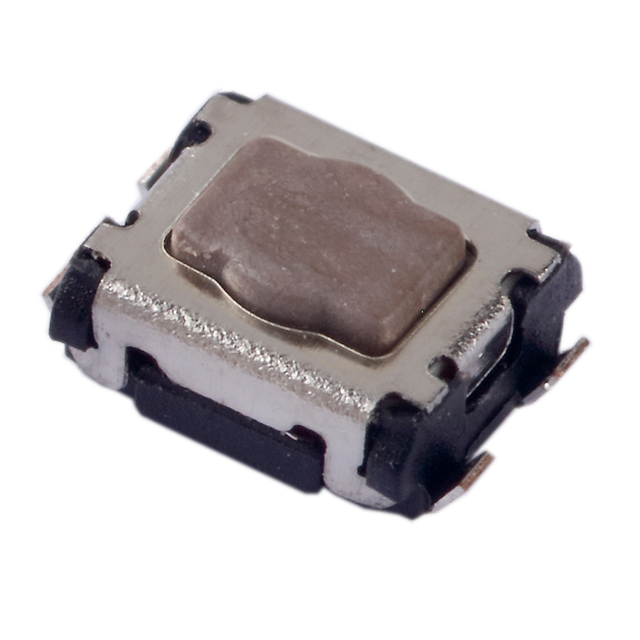

Tusonix a Subsidiary of CTS Electronic Components 226BJVAER	SPST-NO	Tactile Feedback	0.05 A 12 VDC	1.7 mm	Top Actuated	0.5 kgf	2.9 mm	3.5 mm	Standard	Off-Mom	85 °C	-40 °C	0.15 mm	500000 Cycles	Surface Mount	Non-Illuminated	J Lead

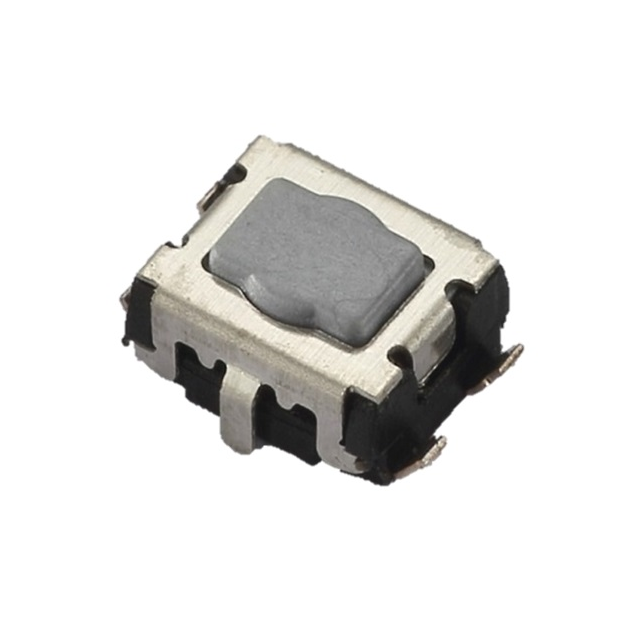

Tusonix a Subsidiary of CTS Electronic Components 226BJVABRG	SPST-NO	Grounding Pin Tactile Feedback	0.05 A 12 VDC	1.7 mm	Top Actuated		2.9 mm	3.5 mm	Standard	Off-Mom	85 °C	-40 °C	0.15 mm	200000 Cycles	Surface Mount	Non-Illuminated	J Lead
