ED052PL Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

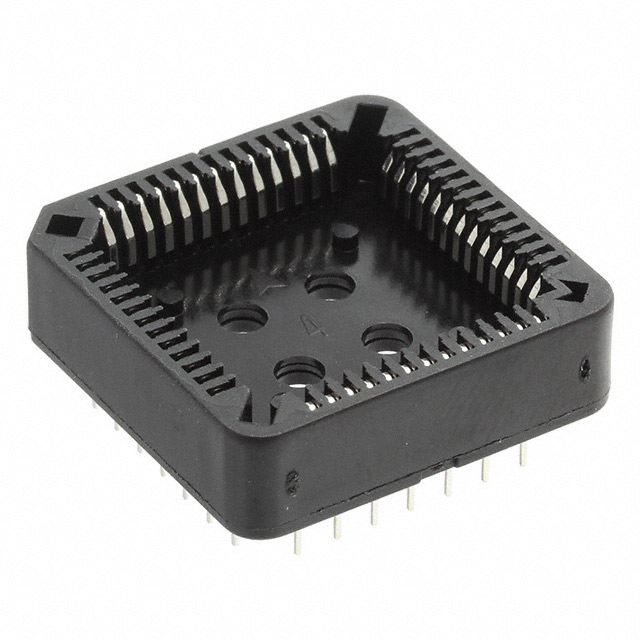

CONN SOCKET PLCC 52POS TIN
| Part | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Termination Post Length | Termination Post Length | Housing Material | Features | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Mounting Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Contact Material - Mating | Termination | Contact Material - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1 A | 30 mOhm | UL94 V-0 | 3 mm | 0.118 in | Polybutylene Terephthalate (PBT) | Closed Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | PLCC | -55 C | 105 ░C | Tin | Phosphor Bronze | Solder | Phosphor Bronze |
