PBC21 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 21POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Material	Number of Rows	Style	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Number of Positions	Fastening Type	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Material	Contact Type	Insulation Color	Number of Positions Loaded	Termination	Connector Type	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post [custom]	Contact Length - Post [custom]

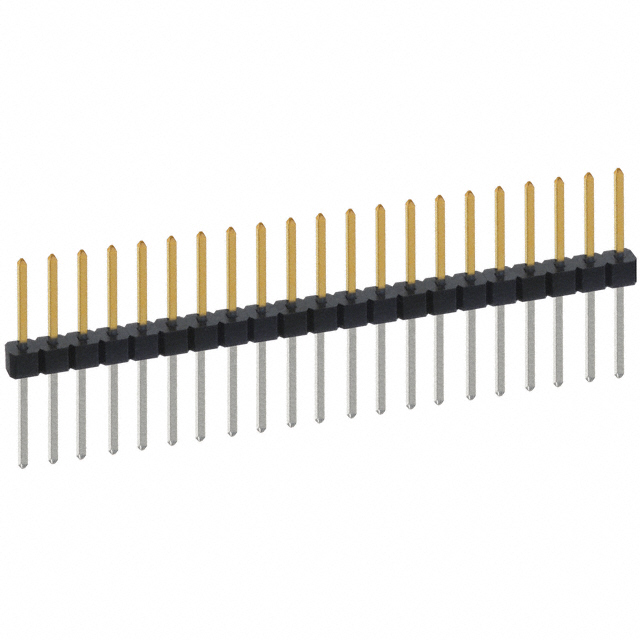

Sullins Connector Solutions PBC21SFCN	2.54 µm	100 µin	8.13 mm	0.32 in	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	Phosphor Bronze	1	Board to Board Cable	8.08 mm	0.318 in	-65 ░C	125 °C	Unshrouded	21	Push-Pull	Tin	18.75 mm	0.738 in	Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway

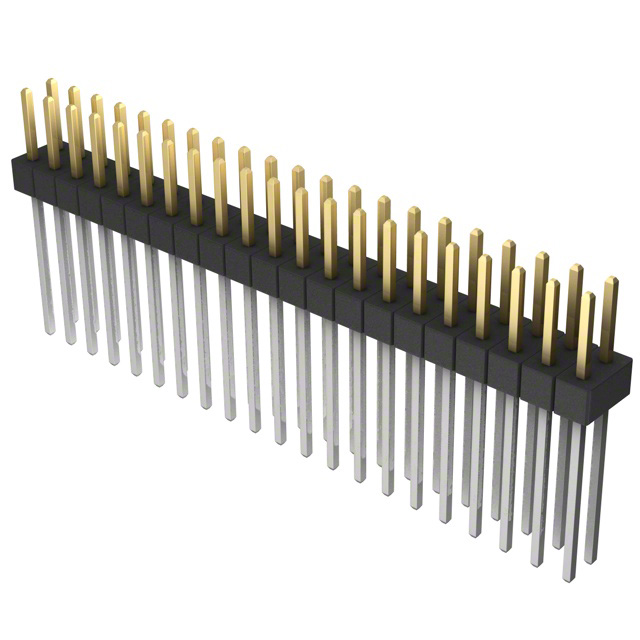

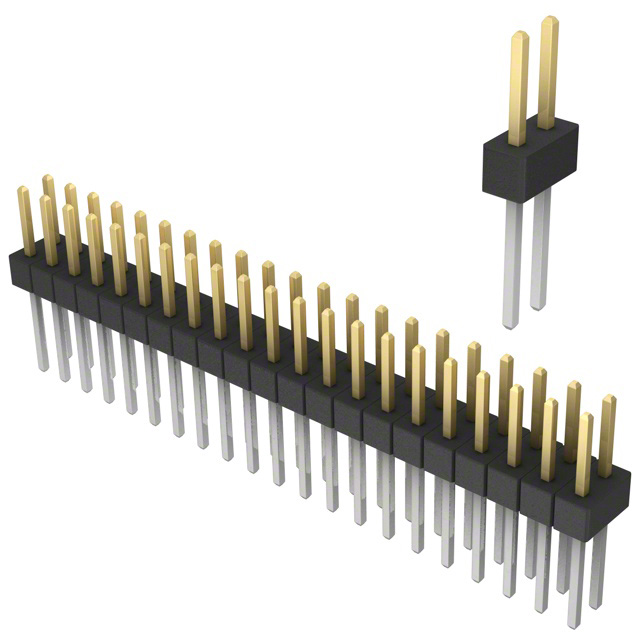

Sullins Connector Solutions PBC21DACN	2.54 µm	100 µin	8.13 mm	0.32 in	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	Phosphor Bronze		Board to Board Cable	5.84 mm	0.23 in	-65 ░C	125 °C	Unshrouded	42	Push-Pull	Tin	16.51 mm		Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway	2	0.1 in	2.54 mm	0.65 in
Sullins Connector Solutions PBC21SAEN	2.54 µm	100 µin	13.21 mm	0.52 in	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	Phosphor Bronze	1	Board to Board Cable	5.84 mm	0.23 in	-65 ░C	125 °C	Unshrouded	21	Push-Pull	Tin	21.59 mm		Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway				0.85 in

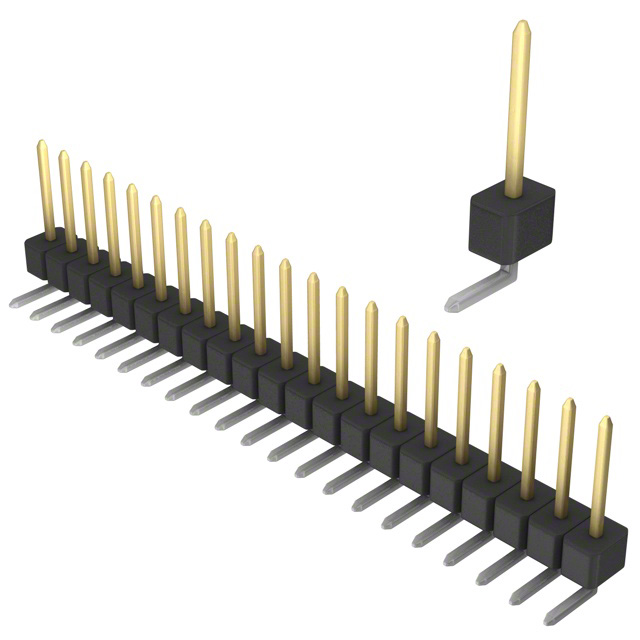

Sullins Connector Solutions PBC21SGAN	2.54 µm	100 µin	2.54 mm	0.1 in	3 A	0.1 "	2.54 mm	0.14 in	3.56 mm	Right Angle Through Hole	Phosphor Bronze	1	Board to Board Cable	8.08 mm	0.318 in	-65 ░C	125 °C	Unshrouded	21	Push-Pull	Tin			Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway
Sullins Connector Solutions PBC21DFAN	2.54 µm	100 µin	3.05 mm	0.12 in	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	Phosphor Bronze		Board to Board Cable	8.08 mm	0.318 in	-65 ░C	125 °C	Unshrouded	42	Push-Pull	Tin			Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway	2	0.1 in	2.54 mm		13.67 mm	0.538 in
Sullins Connector Solutions PBC21SFDN	2.54 µm	100 µin	10.67 mm	0.42 in	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	Phosphor Bronze	1	Board to Board Cable	8.08 mm	0.318 in	-65 ░C	125 °C	Unshrouded	21	Push-Pull	Tin	21.29 mm		Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway				0.838 in
Sullins Connector Solutions PBC21DFEN	2.54 µm	100 µin	13.21 mm	0.52 in	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	Phosphor Bronze		Board to Board Cable	8.08 mm	0.318 in	-65 ░C	125 °C	Unshrouded	42	Push-Pull	Tin	23.83 mm		Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway	2	0.1 in	2.54 mm	0.938 in
Sullins Connector Solutions PBC21SADN	2.54 µm	100 µin	10.67 mm	0.42 in	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	Phosphor Bronze	1	Board to Board Cable	5.84 mm	0.23 in	-65 ░C	125 °C	Unshrouded	21	Push-Pull	Tin			Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway					19.05 mm	0.75 in
Sullins Connector Solutions PBC21SFBN	2.54 µm	100 µin	5.58 mm	0.22 in	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	Phosphor Bronze	1	Board to Board Cable	8.08 mm	0.318 in	-65 ░C	125 °C	Unshrouded	21	Push-Pull	Tin	16.21 mm		Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway				0.638 in
Sullins Connector Solutions PBC21SBBN	2.54 µm	100 µin			3 A	0.1 "	2.54 mm	0.14 in	3.56 mm	Right Angle Through Hole	Phosphor Bronze	1	Board to Board Cable	5.84 mm	0.23 in	-65 ░C	125 °C	Unshrouded	21	Push-Pull	Tin			Square	Gold	0.25 µm	10 µin	UL94 V-0	Polybutylene Terephthalate (PBT)	Male Pin	Black	All	Solder	Header Breakaway							5.08 mm	0.2 "
