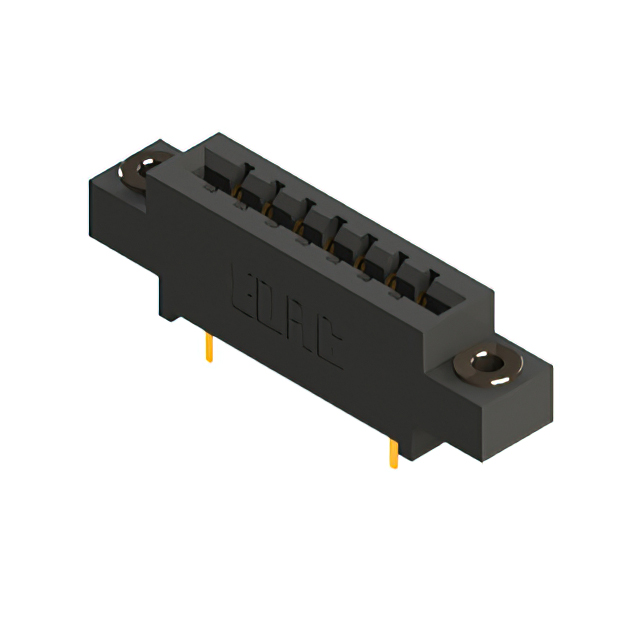

887-014 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 14POS 0.156
...
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Number of Rows [custom] | Card Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Type | Termination | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Color | Mounting Type | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 14 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Copper Alloy | 2 | Non Specified - Dual Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Solder | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Through Hole | Dual | 125 °C | -40 C | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 14 | Copper Alloy | 2 | Non Specified - Dual Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Solder Eyelet(s) | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Through Hole | Dual | 125 °C | -40 C | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 14 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 2 | Non Specified - Dual Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Solder | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Through Hole | Dual | 125 °C | -40 C | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 14 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Copper Alloy | 2 | Non Specified - Dual Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Solder | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Right Angle Through Hole | Dual | 125 °C | -40 C | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 14 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 2 | Non Specified - Dual Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Solder | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Through Hole | Dual | 125 °C | -40 C | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 14 | Copper Alloy | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Wire Wrap | 14 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Through Hole | Single | 125 °C | -40 C | 1 | 1 | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 14 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Solder | 14 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Through Hole | Single | 125 °C | -40 C | 1 | 1 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 14 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Copper Alloy | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Wire Wrap | 14 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Through Hole | Single | 125 °C | -40 C | 1 | 1 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 14 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Wire Wrap | 14 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Through Hole | Single | 125 °C | -40 C | 1 | 1 | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 14 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Copper Alloy | 2 | Non Specified - Dual Edge | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Solder Eyelet(s) | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Black | Through Hole | Dual | 125 °C | -40 C |
