MAX20429 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC REG BUCK 4A DUAL

Part	Package / Case	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - Output (Min/Fixed)	Topology	Mounting Type	Qualification	Frequency - Switching	Voltage - Input (Min) [Min]	Number of Outputs	Output Type	Output Configuration	Function	Current - Output	Voltage - Input (Max) [Max]	Output Type	Voltage - Output (Max)	Power - Output	Outputs and Type	Outputs and Type	Board Type	Main Purpose	Utilized IC / Part	Voltage - Output [Max]	Voltage - Output [Min]	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Voltage - Output (Max) [Max]

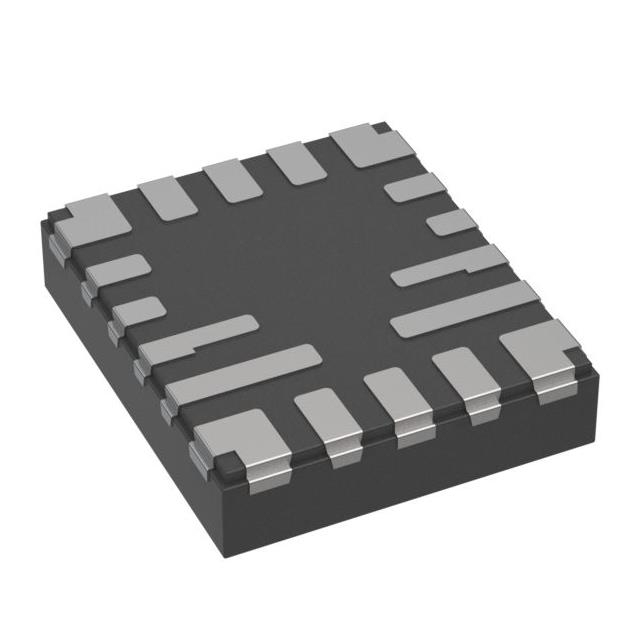

Analog Devices Inc./Maxim Integrated MAX20429AAFNA/VY+T	18-PowerWFQFN	Automotive	-40 °C	125 °C	18-FC2QFN	2.5	2.5	0.72 V 0.85 V	Buck	Surface Mount Wettable Flank	AEC-Q100	2.1 MHz	3 V	2	1.81 mOhm	Positive	Step-Down	3 A 6 A	5.5 V
Analog Devices Inc./Maxim Integrated MAX20429AAFNA/VY+	18-PowerWFQFN	Automotive	-40 °C	125 °C	18-FC2QFN	2.5	2.5	0.72 V 0.85 V	Buck	Surface Mount Wettable Flank	AEC-Q100	2.1 MHz	3 V	2	1.81 mOhm	Positive	Step-Down	3 A 6 A	5.5 V
Analog Devices Inc./Maxim Integrated MAX20429CAFNA/VY+	18-PowerWFQFN	Automotive	-40 °C	125 °C	18-FC2QFN	2.5	2.5	0.5 V 1.6 V	Buck	Surface Mount Wettable Flank	AEC-Q100	2.1 MHz	3 V	2		Positive	Step-Down	6 A	5.5 V	Adjustable	1.59 V 3.8 V

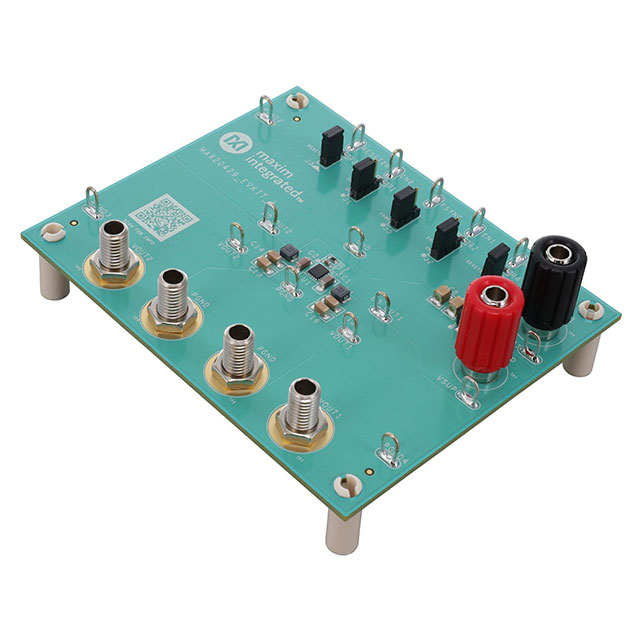

Analog Devices Inc./Maxim Integrated MAX20429EVKIT#																		6 A				30 W	2	Non-Isolated	Fully Populated	DC/DC Step Down	MAX20429	3.8 V	0.5 V	Buck	5.5 V	3 V	Board(s)
Analog Devices Inc./Maxim Integrated MAX20429CAFNA/VY+T	18-PowerWFQFN	Automotive	-40 °C	125 °C	18-FC2QFN	2.5	2.5	0.5 V 1.6 V	Buck	Surface Mount Wettable Flank	AEC-Q100	2.1 MHz	3 V	2		Positive	Step-Down	6 A	5.5 V	Adjustable														1.5875 V 3.8 V
