1775801 Series

Catalog

PCI EXPRESS 64P(2.3)(15")BLACK

Part	Termination	Contact Finish	Card Type	Contact Material	Gender	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Mounting Type	Read Out	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Material - Insulation	Card Thickness	Card Thickness	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 2-1775801-2	Solder Staggered	Gold	PCI Express™	Phosphor Bronze	Female	Board Lock Locking Ramp	15 µin	0.38 µm	64	2	Through Hole	Dual	0.039 in	1 mm	85 °C	-40 °C	Black	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm

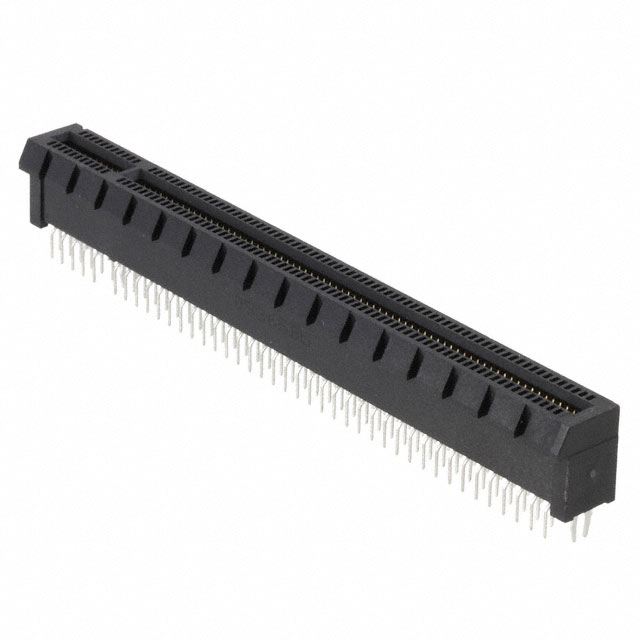

TE Connectivity Raychem Cable Protection 4-1775801-6	Solder Staggered	Gold	PCI Express™	Phosphor Bronze	Female	Board Lock Locking Ramp	30 Áin	0.76 Ám	164	2	Through Hole	Dual	0.039 in	1 mm	85 °C	-40 °C	Black	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm
TE Connectivity Raychem Cable Protection 2-1775801-4	Solder Staggered	Gold	PCI Express™	Phosphor Bronze	Female	Board Lock Locking Ramp			64	2	Through Hole	Dual	0.039 in	1 mm	85 °C	-40 °C	Black	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Flash
TE Connectivity Raychem Cable Protection 3-1775801-4	Solder Staggered	Gold	PCI Express™	Phosphor Bronze	Female	Board Lock Locking Ramp			98	2	Through Hole	Dual	0.039 in	1 mm	85 °C	-40 °C	Black	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Flash

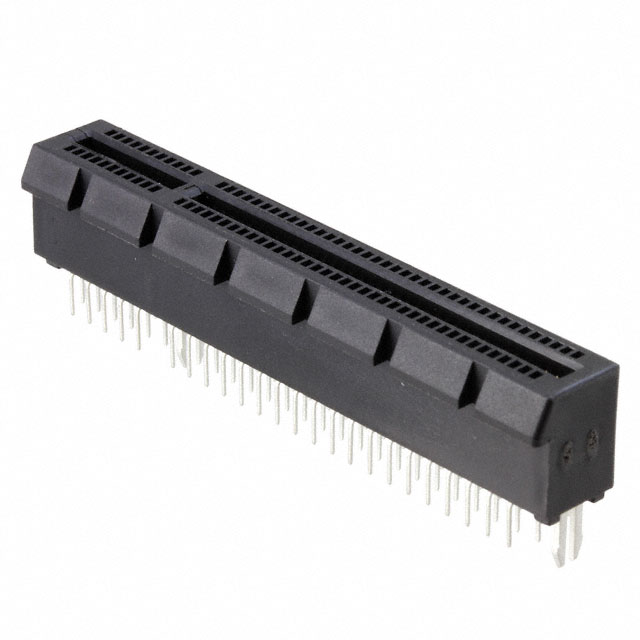

TE Connectivity Raychem Cable Protection 3-1775801-6	Solder Staggered	Gold	PCI Express™	Phosphor Bronze	Female	Board Lock Locking Ramp	30 Áin	0.76 Ám	98	2	Through Hole	Dual	0.039 in	1 mm	85 °C	-40 °C	Black	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm
