5876 Series

Catalog

HOOK-UP STRND 20AWG VIOLET 1000'

Part	Jacket Color	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Ratings	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Qualification	Voltage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 5876 VI001	Violet	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C	304.8 m	1000 ft	20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 5876 OR001	Orange	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C	304.8 m	1000 ft	20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 5876 RD001	Red	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C	304.8 m	1000 ft	20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 5876 GR005	Green	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C			20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)	100 ft	30.5 m
ALPHA WIRE 5876 BK001	Black	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C	304.8 m	1000 ft	20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 5876 RD005	Red	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C			20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)	100 ft	30.5 m
ALPHA WIRE 5876 YL001	Yellow	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C	304.8 m	1000 ft	20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 5876 BL001	Blue	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C	304.8 m	1000 ft	20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 5876 YL005	Yellow	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C			20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)	100 ft	30.5 m

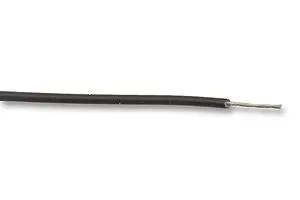

ALPHA WIRE 5876 BK005	Black	1.73 mm	0.068 in	UL Style 1180	Copper Silver Coated	-60 °C	200 °C			20 AWG	19	32 AWG	MIL-W-16878/5 Type EE	1 kV	Hook-Up	0.35 mm	0.014 in	Polytetrafluoroethylene (PTFE)	100 ft	30.5 m
