L53 Series

Catalog

LED RED DIFFUSED T-1 3/4 T/H

Part	Height (Max) [Max] [z]	Lens Transparency	Wavelength - Peak	Lens Color	Viewing Angle	Configuration	Package / Case	Current - Test	Mounting Type	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Millicandela Rating	Size / Dimension [diameter]	Lens Size	Lens Size	Color	Lens Style	Wavelength - Dominant

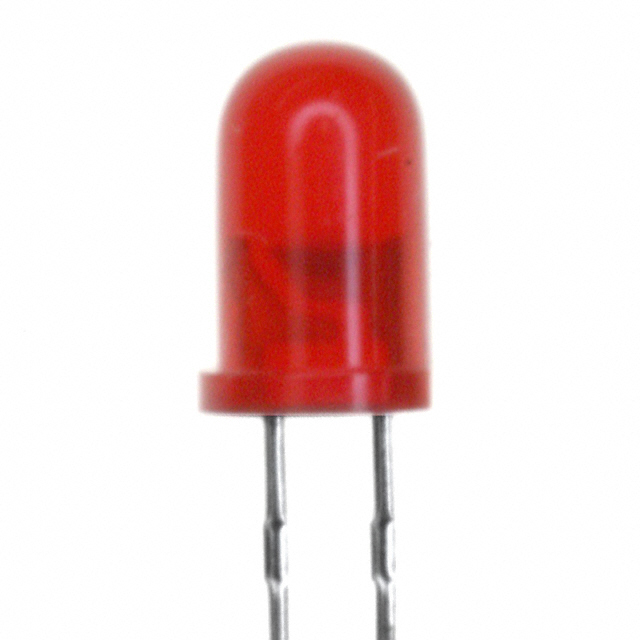

Kingbright L53HD	9.6 mm	Diffused	700 nm	Red	60 °	Standard	Radial	10 mA	Through Hole	2.25 V	T-1 3/4	5 mcd	5 mm	5 mm	T-1 3/4	Red	Round with Domed Top
Kingbright L53IT	9.6 mm	Clear	627 nm	Red	30 °	Standard	Radial	10 mA	Through Hole	2 V	T-1 3/4	80 mcd	5 mm	5 mm	T-1 3/4	Red	Round with Domed Top	625 nm
Kingbright L53GT	9.6 mm	Clear	565 nm	Green	30 °	Standard	Radial	10 mA	Through Hole	2 V	T-1 3/4	60 mcd	5 mm	5 mm	T-1 3/4	Green	Round with Domed Top	568 nm
Kingbright L53YT	9.6 mm	Clear	590 nm	Yellow	30 °	Standard	Radial	10 mA	Through Hole	2.1 V	T-1 3/4	40 mcd	5 mm	5 mm	T-1 3/4	Yellow	Round with Domed Top	588 nm
