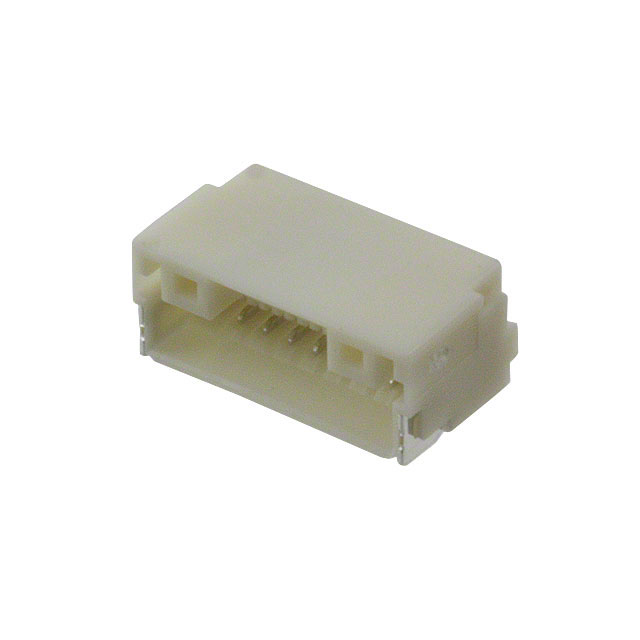

SM09B-NS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 9POS 1MM
| Part | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Style | Shrouding | Voltage Rating | Number of Positions | Mounting Type | Connector Type | Contact Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Fastening Type | Features | Material Flammability Rating | Insulation Color | Contact Material | Insulation Material | Insulation Height | Insulation Height | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder | 85 °C | -25 °C | 1 | Board to Cable/Wire | Shrouded - 4 Wall | 50 V | 9 | Right Angle Surface Mount | Header | Male Pin | All | 1 mm | 0.039 in | Latch Holder | Solder Retention | UL94 V-0 | Natural | Copper Alloy | Nylon Polyamide (PA) | 4.4 mm | 0.173 in | Tin |
