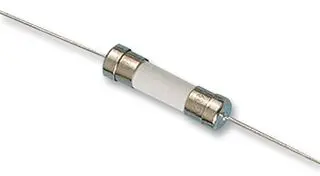

FUSE 250V SB PT 3AB Pb-FREE .010A
Description
AI
The 3AB Slo-Blo® Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V SB PT 3AB Pb-FREE .010A
FUSE 250V SB PT 3AB Pb-FREE .010A
| Part | Voltage Rating - AC | Response Time | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Melting I²t | Fuse Type | Package / Case [y] | Package / Case | Package / Case [x] | Breaking Capacity @ Rated Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 250 V | Slow Blow | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | CE | -55 C | 125 °C | 10 mA | 0.00148 | Cartridge Ceramic | 3AB 3AG | 0.25 " | 100 A | Through Hole | |
 LITTELFUSE | 250 V | Slow Blow | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | CE | -55 C | 125 °C | 10 mA | 0.00148 | Cartridge Ceramic | 3AB 3AG | 0.25 " | 100 A | Through Hole | |
 LITTELFUSE | 250 V | Slow Blow | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | CE | -55 C | 125 °C | 10 mA | 0.00148 | Cartridge Ceramic | 3AB 3AG | 0.25 " | 100 A | Through Hole |
