09330242 Series

Manufacturer: HARTING

Catalog

HAN ESS 24 POS. F INSERT CAGE CLAMP TERM ROHS COMPLIANT: NA

Part	Connector Type	Number of Positions	Termination Style	Gender	Contact Finish	Contact Material	Housing Material	Color	Material Flammability Rating	Size	Voltage Rating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Type
HARTING 09330242728	Insert	24	Push In	Female

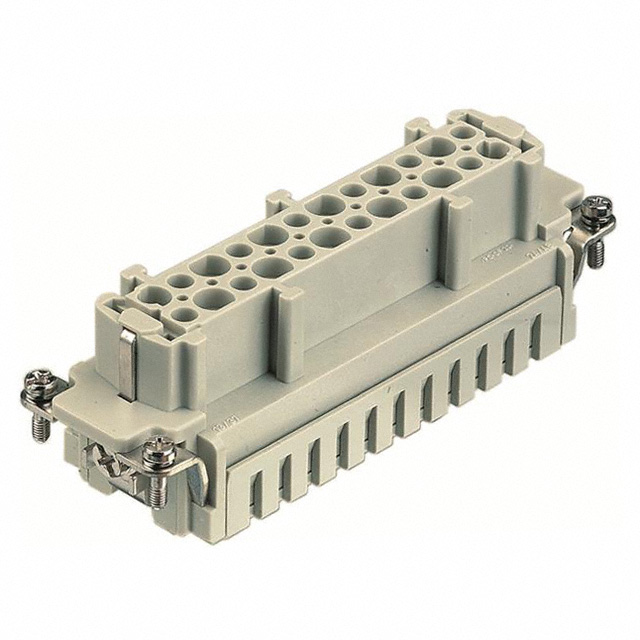

HARTING 09330242726	Insert		Push In	Female	Silver	Copper Alloy	Polycarbonate (PC)	Gray	UL94 V-0	48 B	600 V	16 A	125 °C	-40 C

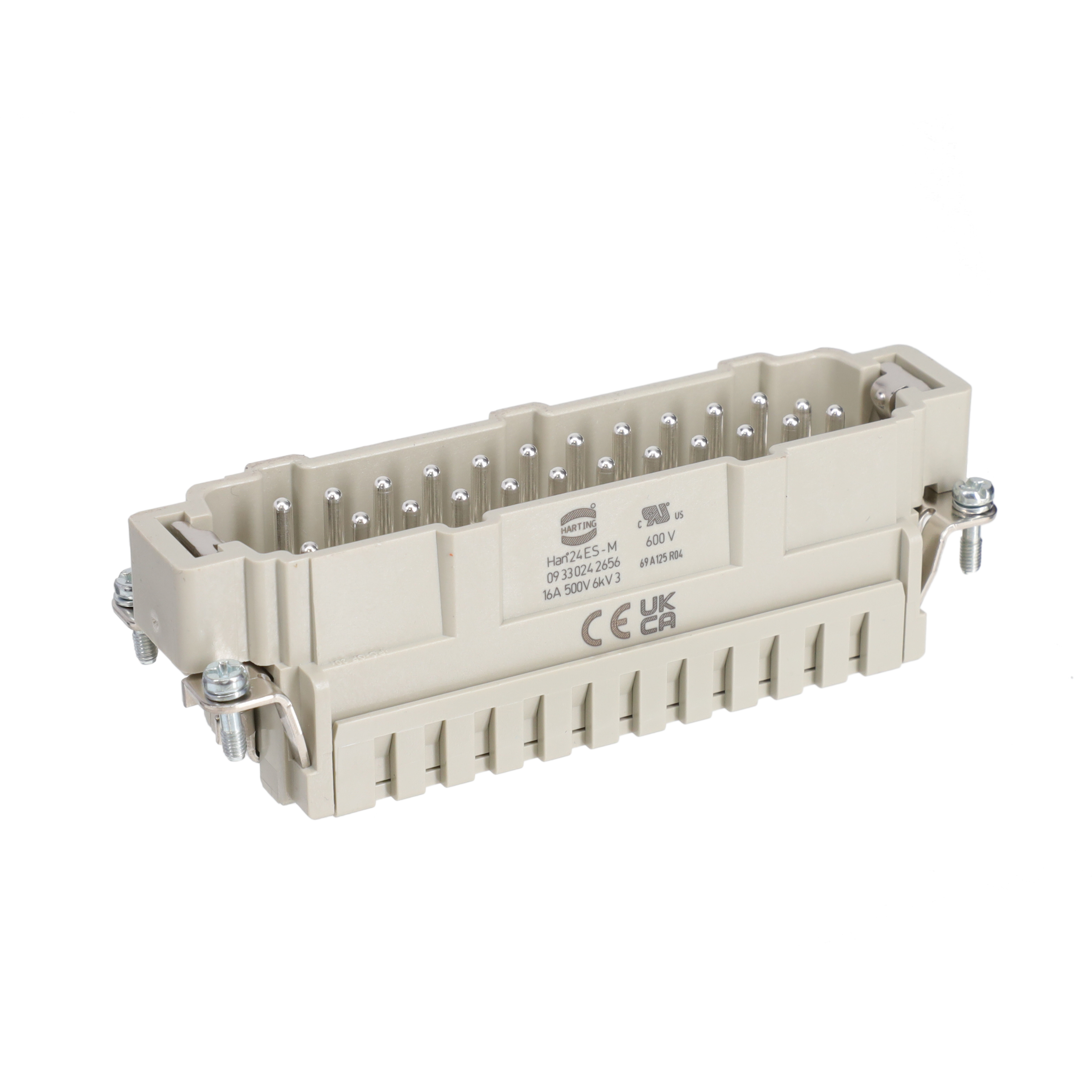

HARTING 09330242656	Insert	24	Push In	Male
HARTING 09330242682	Insert without Contacts	24	Crimp	Male
HARTING 09330242754	Insert without Contacts	24	Crimp	Female

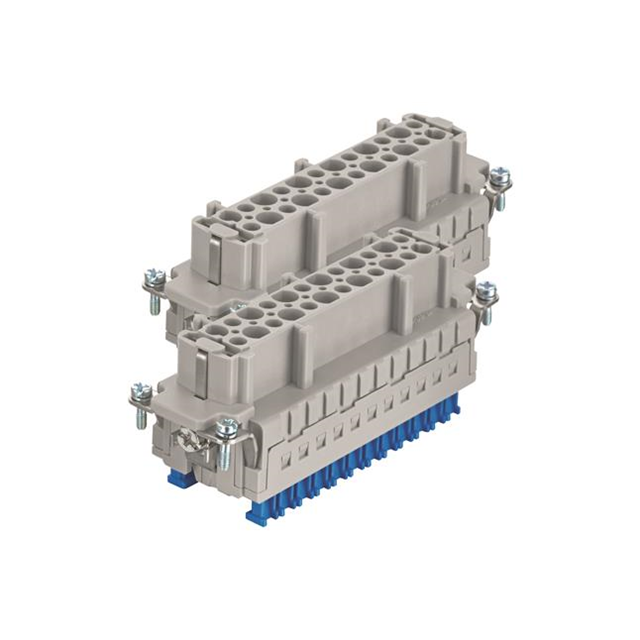

HARTING 09330242788	Insert		Tension Clamp	Female	Silver	Copper Alloy	Polycarbonate (PC)	Gray	UL94 V-0	48 B	500 V	16 A	125 °C	-40 C	48+Ground
HARTING 09330242607
HARTING 09330242721	Insert	24	Screw	Female
HARTING 09330242612	Insert without Contacts		Crimp	Male			Polycarbonate (PC)	Gray	UL94 V-0	48 B	600 V	16 A	125 °C	-40 C		Han®

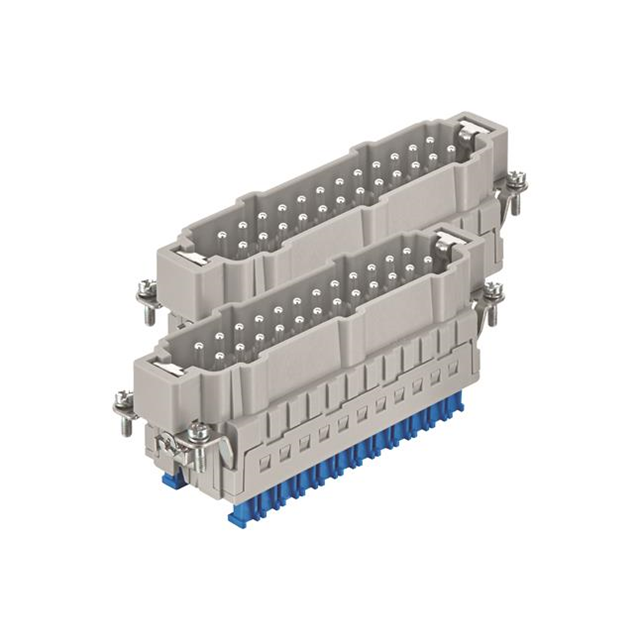

HARTING 09330242688	Insert		Tension Clamp	Male	Silver	Copper Alloy	Polycarbonate (PC)	Gray	UL94 V-0	48 B	500 V	16 A	125 °C	-40 C	48+Ground
