UTTB Series

Catalog

DIN RAIL TERMINAL BLOCKS UTTB 2,5-DIO/UL-UR DBL LEVEL 5.2MM

Part	Stripping Length	Material Flammability Rating	Material - Insulation	Current - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - IEC	Color	Features	Type	Number of Levels	Voltage - UL	Number of Positions	Current - IEC	Terminal - Width [y]	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Height (Max) [z]	Height (Max) [Max] [z]	Length [x]	Length [x]	Mounting Type	Housing Color	Number of Levels	Disconnect Type
Phoenix Contact 3046728	9 mm	UL94 V-0	Nylon Polyamide (PA)	20 A	12 AWG	26 AWG	500 V	Gray	Diode	Feed Through	2	600 V	4	24 A	5.2 mm	Screw	0.14 mm²	4 mm²

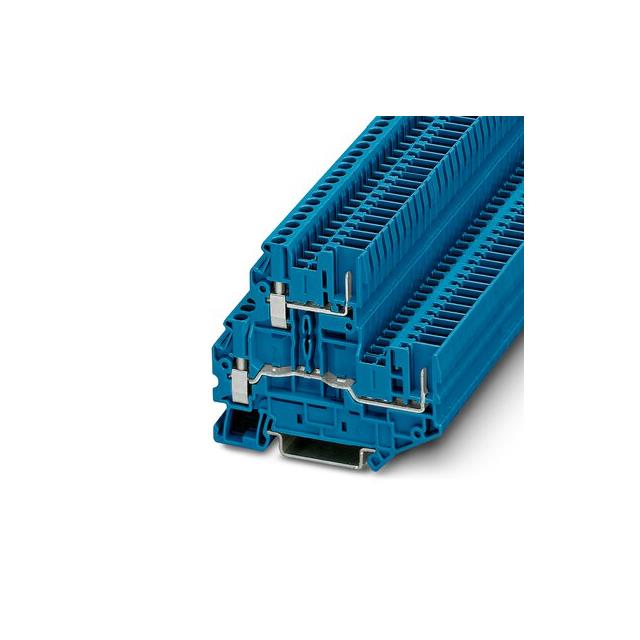

Phoenix Contact 3060364	9 mm	UL94 V-0	Nylon Polyamide (PA)	20 A	16 AWG	26 AWG	500 V			Plug Connection	2	300 V	4	24 A	5.2 mm	Plug Receptacles Screw	0.14 mm²	4 mm²	72.5 mm	2.854 in	74.3 mm	2.925 "	DIN Rail	Blue
Phoenix Contact 3046702	9 mm	UL94 V-0	Nylon Polyamide (PA)	20 A	12 AWG	26 AWG	60 V	Gray	LED	Feed Through	2	300 V	4	24 A	5.2 mm	Screw	0.14 mm²	4 mm²							Connected

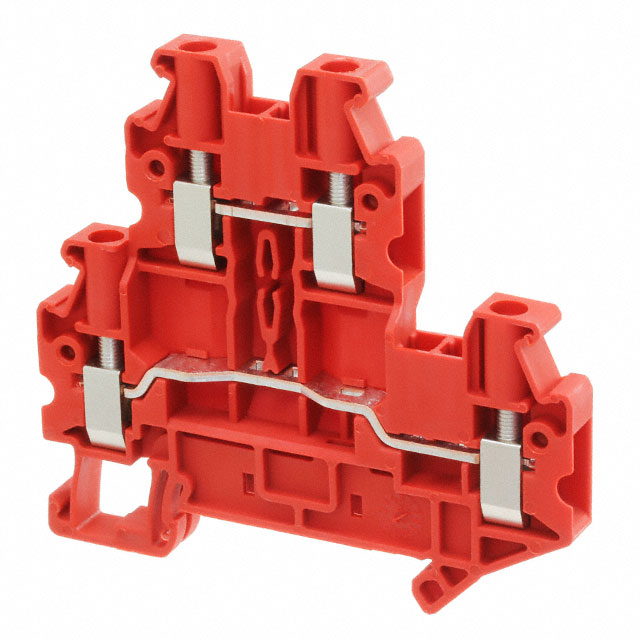

Phoenix Contact 3046786	9 mm	UL94 V-0	Nylon Polyamide (PA)	30 A	14 AWG	26 AWG	800 V	Red		Feed Through	2	300 V	4	30 A	6.2 mm	Screw	0.14 mm²	6 mm²
Phoenix Contact 3044762					10 AWG	26 AWG	500 V	Gray		Disconnect Feed Through	2	300 V	4	30 A	6.2 mm	Screw	0.14 mm²	6 mm²								Knife Switch
Phoenix Contact 3046744	9 mm	UL94 V-0	Nylon Polyamide (PA)	20 A	12 AWG	26 AWG	500 V	Gray		Feed Through	2	300 V	4	24 A	5.2 mm	Screw	0.14 mm²	4 mm²
