02S141 Series
Manufacturer: Rosenberger
Beta
⌘K

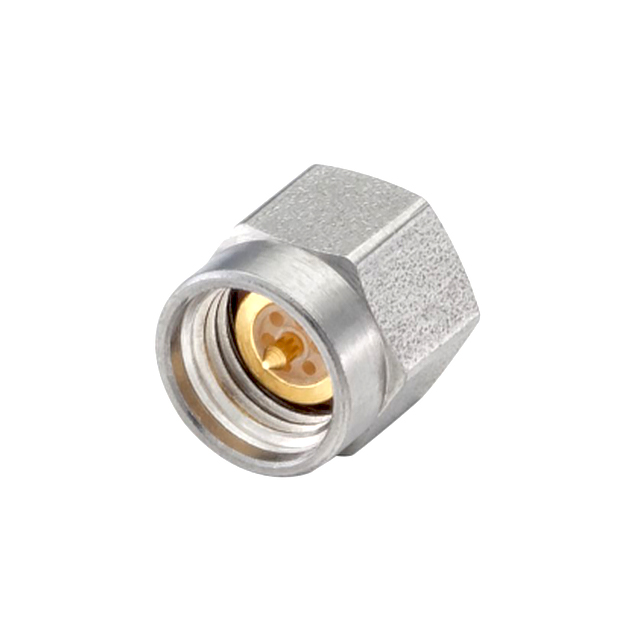

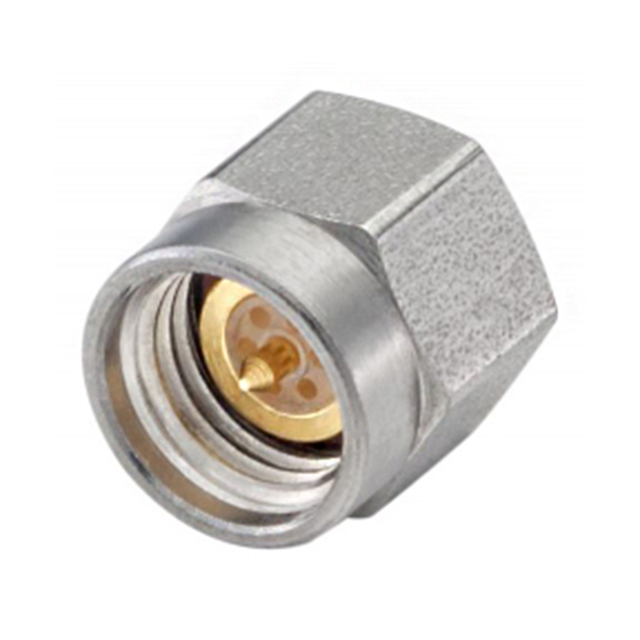

CONN RPC2.92 PLUG STR 50OHM
| Part | Body Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Voltage Rating | Mating Cycles | Impedance | Mounting Type | Center Contact Material | Connector Style [x] | Housing Color | Contact Termination | Number of Ports | Connector Type | Frequency - Max [Max] | Fastening Type | Shield Termination | Body Finish | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Stainless Steel | Polystyrene (PS) | 85 °C | -40 C | Gold | 250 V | 500 | 50 Ohms | Free Hanging (In-Line) | Beryllium Copper | 2.92 mm | Silver | Solder | 1 | Plug Male Pin | 43.5 GHz | Threaded | Solder | ||
 Rosenberger | Beryllium Copper | Polystyrene (PS) Polytetrafluoroethylene (PTFE) | 85 °C | -40 C | Gold | 250 V | 500 | 50 Ohms | Free Hanging (In-Line) | Brass | 2.92 mm | Gold | Solder | 1 | Plug Male Pin | 40 GHz | Threaded | Solder | Gold | UT-47 |
 Rosenberger | Beryllium Copper | Polystyrene (PS) | 85 °C | -40 C | Gold | 250 V | 500 | 50 Ohms | Free Hanging (In-Line) | Beryllium Copper | 2.92 mm | Gold | Solder | 1 | Plug Male Pin | 40 GHz | Threaded | Solder | Gold |
