AONX381 Series

Catalog

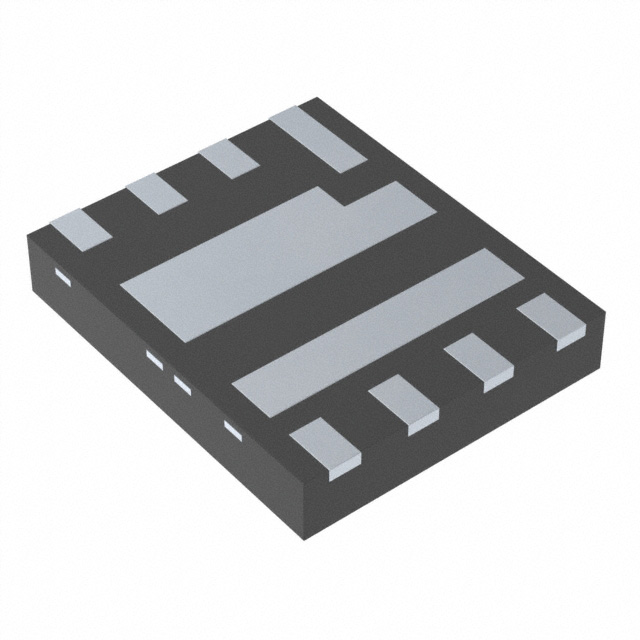

MOSFET 2N-CH 25V 25A/62A 8DFN

Part	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Technology	Configuration	Vgs(th) (Max) @ Id	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type
Alpha & Omega Semiconductor Inc. AONX38168	0.8 mOhm 3.3 mOhm	25 A 50 A 62 A 85 A	8-DFN (5x6)	MOSFET (Metal Oxide)	2 N-Channel (Dual) Asymmetrical	1.9 V	1.8 V	150 °C	-55 °C	3.1 W 3.2 W 20 W 69 W	24 nC 85 nC	8-VDFN Exposed Pad	25 V	1150 pF 4520 pF	Surface Mount
