OSTYC09 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

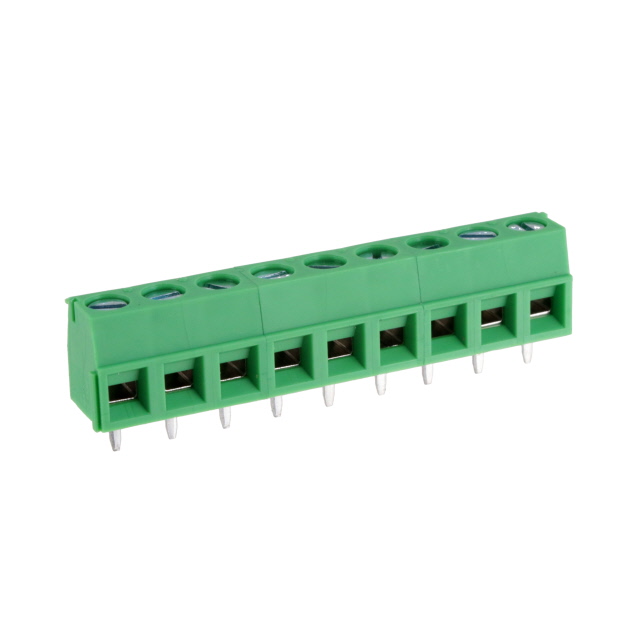

TERM BLK 9P SIDE ENT 5.08MM PCB
| Part | Voltage | Torque - Screw | Torque - Screw | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge [Max] | Wire Gauge [Min] | Pitch [x] | Pitch [x] | Color | Wire Termination | Current | Mounting Type | Features | Positions Per Level | Housing Material | Mating Orientation | Contact Material - Plating [custom] | Screw Material - Plating | Clamp Material - Plating | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 300 V | 0.4 Nm | 3.5 Lb-In | M2.5 | -30 ░C | 105 ░C | 26 AWG | 16 AWG | 0.2 in | 5.08 mm | Green | Screw - Rising Cage Clamp | 10 A | Through Hole | Interlocking (Side) | 9 | Thermoplastic | Horizontal with Board | Brass | Steel Zinc Plated | Brass | 1 |
