R11017 Series

Catalog

MMCX M RA CR 2.6/50S C100

Part	Center Contact Plating	Body Finish	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Dielectric Material	Voltage Rating	Mating Cycles	Contact Termination	Connector Type	Center Contact Material	Cable Group	Cable Group	Frequency - Max [Max]	Shield Termination	Number of Ports	Impedance	Mounting Type	Connector Style	Fastening Type	Housing Color

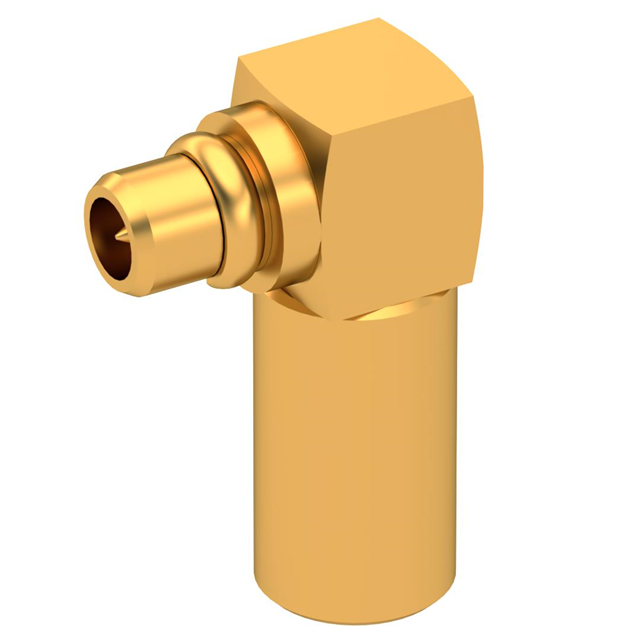

Radiall USA, Inc. R110172100	Gold	Gold	Brass	155 C	-55 C	1 Connector 1 End Cap	Polytetrafluoroethylene (PTFE)	335 V	500	Solder	Plug Male Pin	Brass	RG-174	316	6000 MHz	Solder	1	50 Ohms	Free Hanging (In-Line) Right Angle	MMCX	Snap-On	Gold
Radiall USA, Inc. R110172100W	Gold	Gold	Brass	155 C	-55 C		Polytetrafluoroethylene (PTFE)	335 V	500	Crimp	Plug Male Pin	Brass	316 RG-188		6000 MHz	Crimp	1	50 Ohms	Free Hanging (In-Line) Right Angle	MMCX	Snap-On	Gold

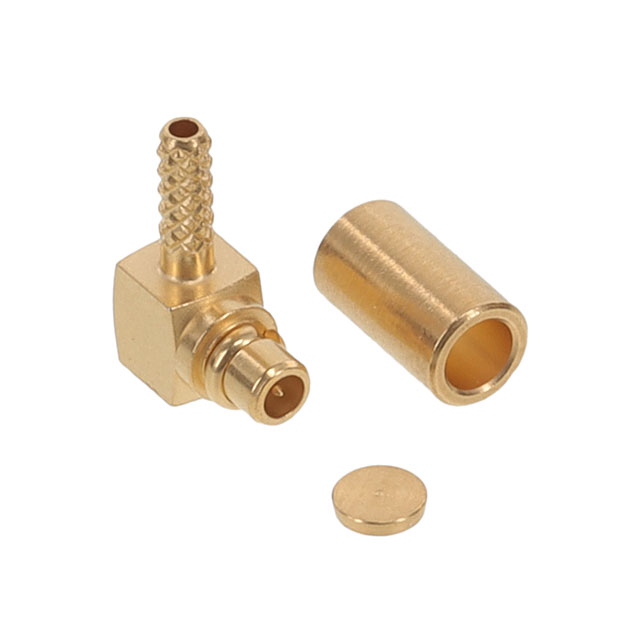

Radiall USA, Inc. R110170100	Gold	Gold	Brass	155 C	-55 C		Polytetrafluoroethylene (PTFE)	250 V	500	Crimp	Plug Male Pin	Brass	RG-178	196	6000 MHz	Crimp	1	50 Ohms	Free Hanging (In-Line) Right Angle	MMCX	Snap-On	Gold
Radiall USA, Inc. R110170100W	Gold	Gold	Brass	155 C	-55 C		Polytetrafluoroethylene (PTFE)	250 V	500	Crimp	Plug Male Pin	Brass	RG-178	196	6000 MHz	Crimp	1	50 Ohms	Free Hanging (In-Line) Right Angle	MMCX	Snap-On	Gold
