3404-0 Series

Catalog

CONN PC PIN CIRC

Part	Contact Finish Thickness	Contact Finish Thickness	Insulation	Terminal Type	Mounting Type	Termination	Contact Material	Length - Overall	Length - Overall	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Length - Above Flange [x]	Length - Above Flange [x]	Terminal Style	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 3404-0-00-80-00-00-03-0	200 Áin	5.08 Ám	Non-Insulated	PC Pin	Through Hole	Press-Fit	Brass Alloy	10 mm	0.394 in	0.018 in	0.46 mm	0.46 mm	0.018 in	0.142 "	3.6 mm	0.217 in	5.51 mm	Single End	Tin	1.45 mm	0.057 in	0.072 "	1.83 mm

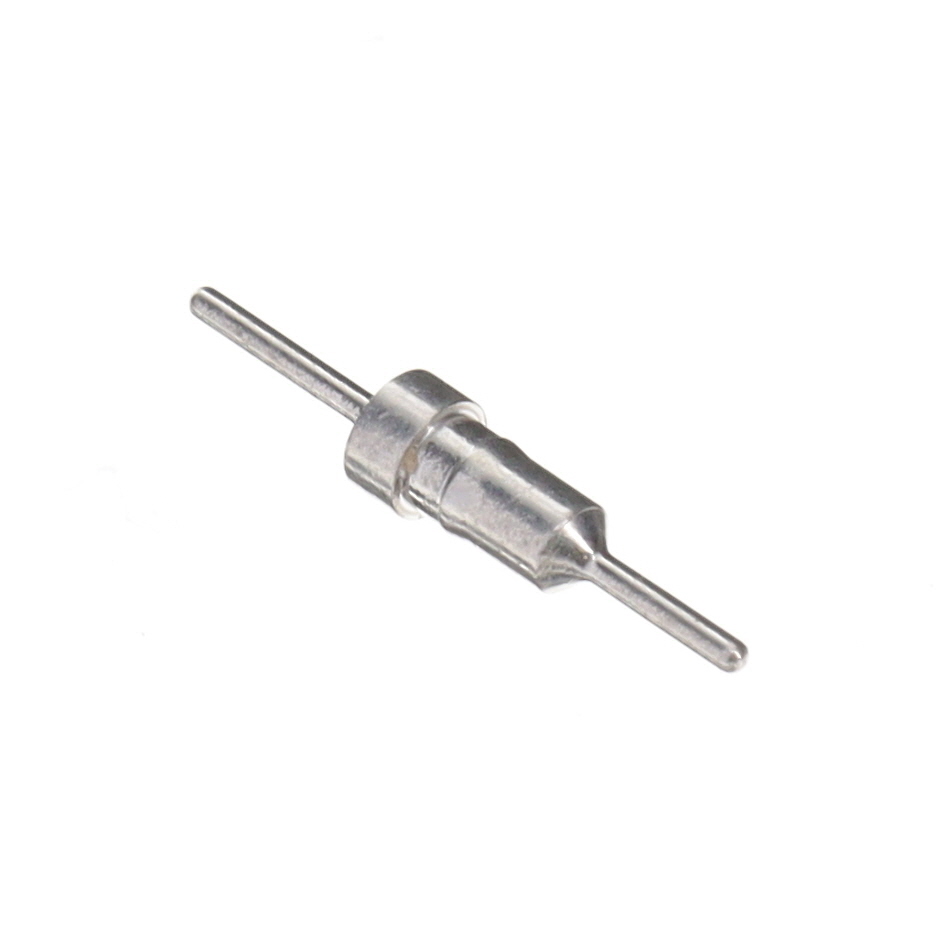

Mill-Max Manufacturing Corp. 3404-0-00-01-00-00-03-0	200 Áin	5.08 Ám	Non-Insulated	PC Pin	Through Hole	Press-Fit	Brass Alloy	10 mm	0.394 in	0.018 in	0.46 mm	0.46 mm	0.018 in	0.217 "	5.51 mm	0.142 in	3.61 mm	Double End	Tin-Lead	1.45 mm	0.057 in	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 3404-0-00-21-00-00-03-0	20 µin	0.51 µm	Non-Insulated	PC Pin	Through Hole	Press-Fit	Brass Alloy	10 mm	0.394 in	0.018 in	0.46 mm	0.46 mm	0.018 in	0.217 "	5.51 mm	0.142 in	3.61 mm	Double End	Gold	1.45 mm	0.057 in	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 3404-0-00-15-00-00-03-4	10 Áin	0.25 Ám	Non-Insulated	PC Pin	Through Hole	Press-Fit	Brass Alloy	10 mm	0.394 in	0.018 in	0.46 mm	0.46 mm	0.018 in	0.142 "	3.6 mm	0.217 in	5.51 mm	Single End	Gold	1.45 mm	0.057 in	0.072 "	1.83 mm
