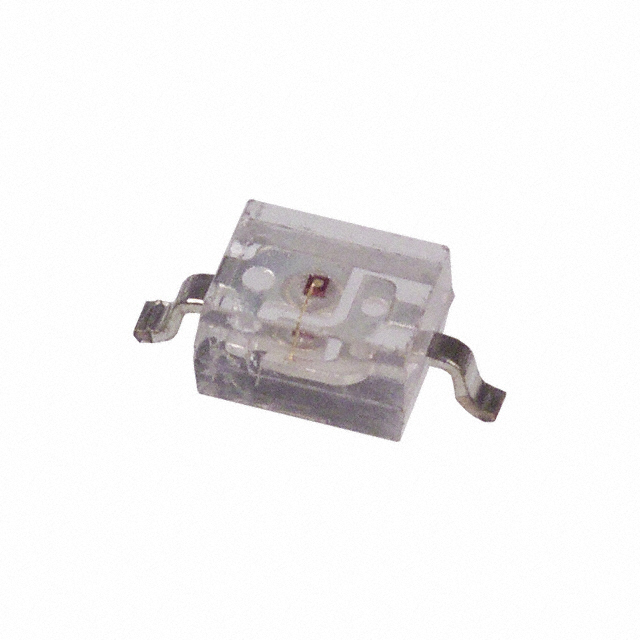

CMD28-21 Series
Manufacturer: Visual Communications Company - VCC
Beta
⌘K
LED GREEN CLEAR SMD
| Part | Package / Case | Voltage - Forward (Vf) (Typ) | Viewing Angle | Millicandela Rating | Supplier Device Package | Wavelength - Peak | Mounting Type | Configuration | Lens Transparency | Height (Max) [Max] [z] | Color | Current - Test | Lens Size [x] | Lens Size [y] | Lens Style | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Visual Communications Company - VCC | 2-SMD Gull Wing | 2.1 V | 150 ° | 5.5 mcd | SMD | 570 nm | Surface Mount | Standard | Clear | 1.6 mm | Green | 20 mA | 2.5 mm | 2 mm | Rectangle with Flat Top | 2.5 mm | 2 mm |
Visual Communications Company - VCC | 2-SMD Gull Wing | 2 V | 150 ° | 3 mcd | SMD | 640 nm | Surface Mount | Standard | Clear | 1.6 mm | Red | 20 mA | 2.5 mm | 2 mm | Rectangle with Flat Top | 2.5 mm | 2 mm |
