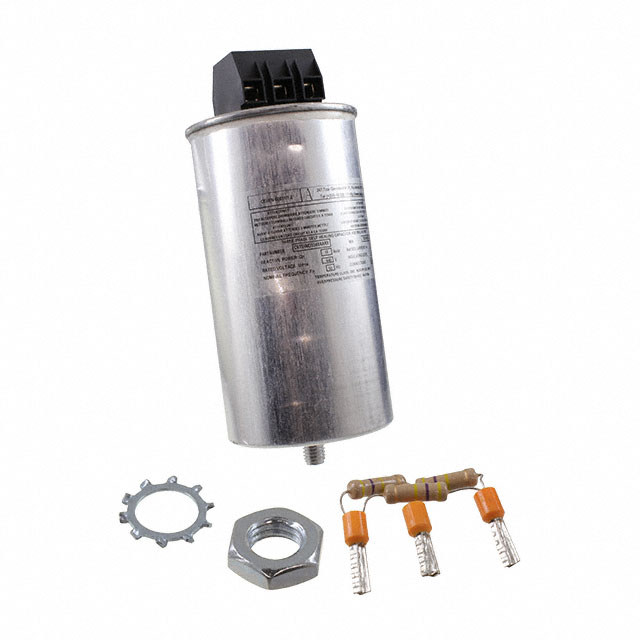

C9TS6MD Series

Manufacturer: KEMET

Catalog

CAP FILM 110UF 440VAC RADIAL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Capacitance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Voltage Rating - AC	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Lead Spacing	Lead Spacing	Termination	Tolerance [Max]	Tolerance [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C9TS6MD6110AARX	55 °C	-25 °C	Polypropylene (PP) Metallized	110 µF	Can Radial	282 mm	11.102 in	3 Phase Power Factor Correction (PFC)	440 V	2.953 in	75 mm	Chassis Stud Mount	0.748 in	19 mm	Terminal Block	15 %	-5 %
KEMET C9TS6MD5960AARX	55 °C	-25 °C	Polypropylene (PP) Metallized	96 µF	Can Radial	282 mm	11.102 in	3 Phase Power Factor Correction (PFC)	440 V	2.953 in	75 mm	Chassis Stud Mount	0.748 in	19 mm	Terminal Block	15 %	-5 %
KEMET C9TS6MD5685AARX	55 °C	-25 °C	Polypropylene (PP) Metallized	68.5 µF	Can Radial			3 Phase Power Factor Correction (PFC)	440 V	2.953 in	75 mm	Chassis Stud Mount	0.748 in	19 mm	Terminal Block	15 %	-5 %	232 mm	9.134 in
KEMET C9TS6MD5274AARX	55 °C	-25 °C	Polypropylene (PP) Metallized	27.4 µF	Can Radial			3 Phase Power Factor Correction (PFC)	440 V	2.953 in	75 mm	Chassis Stud Mount	0.748 in	19 mm	Terminal Block	15 %	-5 %	162 mm	6.378 in
KEMET C9TS6MD5830AARX	55 °C	-25 °C	Polypropylene (PP) Metallized	83 µF	Can Radial			3 Phase Power Factor Correction (PFC)	440 V	3.346 "	85 mm	Chassis Stud Mount	0.748 in	19 mm	Terminal Block	15 %	-5 %	232 mm	9.134 in
KEMET C9TS6MD5548AARX	55 °C	-25 °C	Polypropylene (PP) Metallized	54.8 µF	Can Radial			3 Phase Power Factor Correction (PFC)	440 V	3.346 "	85 mm	Chassis Stud Mount	0.748 in	19 mm	Terminal Block	15 %	-5 %	162 mm	6.378 in
KEMET C9TS6MD6137AARX	55 °C	-25 °C	Polypropylene (PP) Metallized	137 µF	Can Radial	282 mm	11.102 in	3 Phase Power Factor Correction (PFC)	440 V	3.346 "	85 mm	Chassis Stud Mount	0.748 in	19 mm	Terminal Block	15 %	-5 %
