892-053 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 53POS 0.100

Part	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Contact Type	Gender	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Termination Rows	Number of Positions/Bay/Row	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows	Color	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions	Card Type	Contact Material	Mounting Type	Material - Insulation

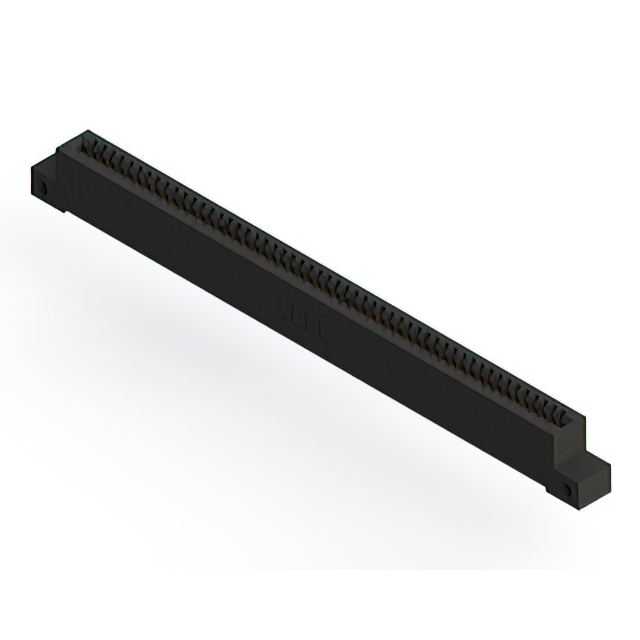

EDAC Inc. 892-053-521-112	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Solder	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Through Hole	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-053-559-112	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Solder	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Right Angle Through Hole	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-053-520-112	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Solder	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Through Hole	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-053-523-104	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Through Hole	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-053-559-102	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Solder	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Right Angle Through Hole	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-053-544-112	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Wire Wrap	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Through Hole	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-053-559-104	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Right Angle Through Hole	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-053-523-107	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Solder	Flush Mount M3 Threaded Insert Top Opening			1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Through Hole	Polyphenylene Sulfide (PPS)

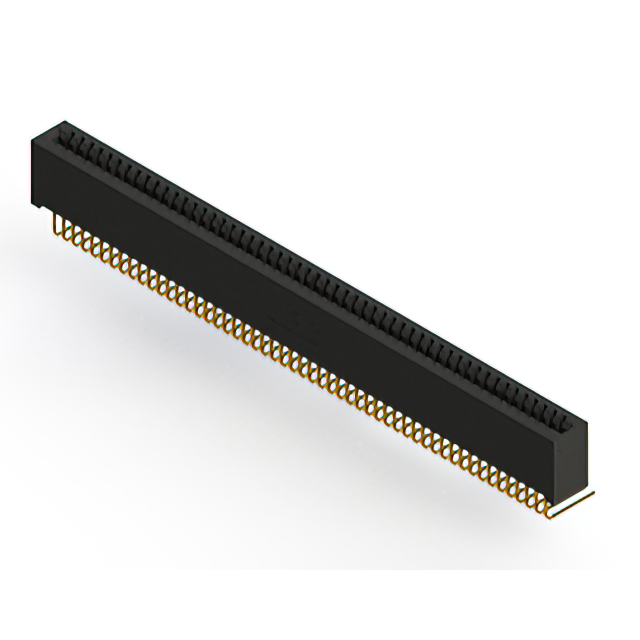

EDAC Inc. 892-053-558-101	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Solder				1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Right Angle Through Hole	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-053-559-101	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	53	Solder				1	Black	0.25 Ám	10 Áin	Single	53	Non Specified - Single Edge	Copper Alloy	Right Angle Through Hole	Polyphenylene Sulfide (PPS)
