LPPB032 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

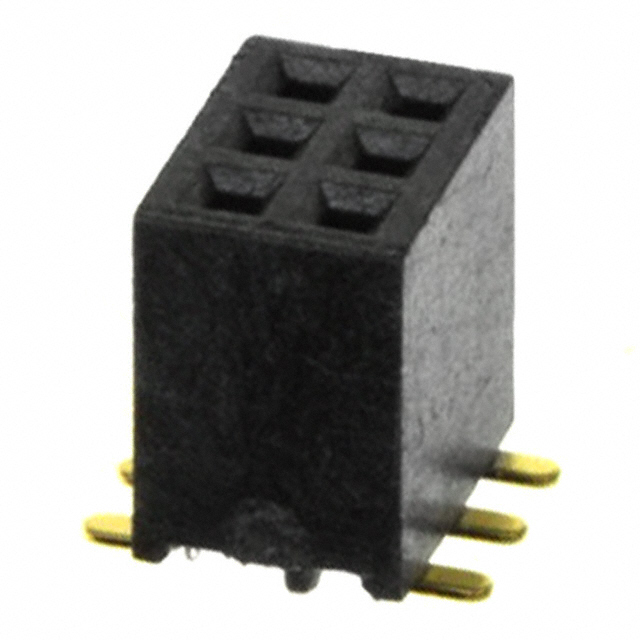

CONN HDR 6POS 0.05 GOLD SMD
| Part | Contact Material | Contact Shape | Contact Finish Thickness - Post | Insulation Material | Termination | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Number of Positions | Fastening Type | Insulation Height | Insulation Height | Contact Finish - Mating | Contact Finish Thickness - Mating | Connector Type | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Insulation Color | Features | Material Flammability Rating | Number of Rows [custom] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Square | Flash | Liquid Crystal Polymer (LCP) | Solder | Female Socket | 125 °C | -40 C | 1.27 mm | 0.05 in | 6 | Push-Pull | 4.65 mm | 0.183 in | Gold | Flash | Header Top or Bottom Entry | Surface Mount | 0.05 in | 1.27 mm | All | Black | Board Guide | UL94 V-0 | 2 | Gold |
