RF9L120BJFRA Series

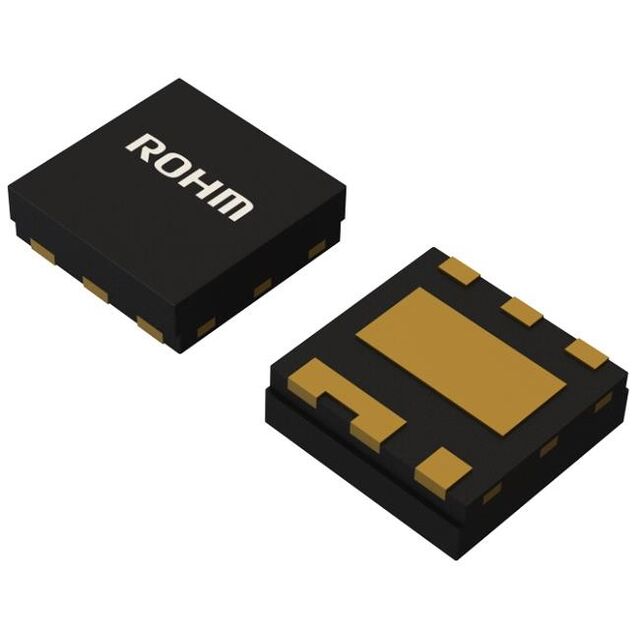

Pch -60V -12A, DFN2020Y7LSAA, Power MOSFET for Automotive

Catalog

Pch -60V -12A, DFN2020Y7LSAA, Power MOSFET for Automotive

Part	Vgs (Max) [Max]	Vgs (Max) [Min]	Technology	FET Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Grade	Supplier Device Package	Package / Case	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Qualification	Rds On (Max) @ Id, Vgs	Operating Temperature
Rohm Semiconductor RF9L120BJFRATCR	5 V	-20 V	MOSFET (Metal Oxide)	P-Channel	15.7 nC	60 V	2.5 V	4.5 V 10 V	Surface Mount	710 pF	Automotive	DFN2020Y7LSAA	6-UDFN Exposed Pad	12 A	23 W	AEC-Q101	106 mOhm	150 °C

Pch -60V -12A, DFN2020Y7LSAA, Power MOSFET for Automotive

• AEC-Q101 qualified, Low on - resistance, High power small mold package, Pb-free plating; RoHS compliant, Halogen Free, WettableFlank

RF9L120BJFRA is an automotive grade MOSFET that is AEC-Q101 qualified. Ideal for ADAS and Info. and Lighting and Body.
