DRV8316-Q1 Series

Automotive 40-V max 8-A peak three-phase motor driver with integrated current sensing

Catalog

Automotive 40-V max 8-A peak three-phase motor driver with integrated current sensing

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Motor Type - Stepper	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Function	Interface	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Motor Type - AC, DC	Mounting Type	Technology	Current - Output	Supplier Device Package

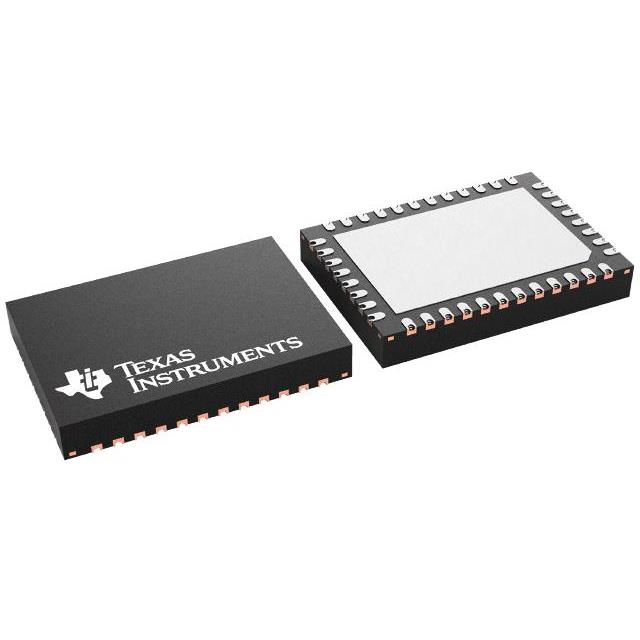

Texas Instruments DRV8316RQRGFRQ1	-40 °C	125 °C	Pre-Driver - Half Bridge (3)	Multiphase	4.5 V	35 V	General Purpose	Driver - Fully Integrated Control and Power Stage	SPI	35 V	4.5 V	40-VFQFN Exposed Pad	Brushless DC (BLDC)	Surface Mount	NMOS	8 A	40-VQFN

Catalog

Automotive 40-V max 8-A peak three-phase motor driver with integrated current sensing

Key Features

• AEC-Q100 qualified for automotive applicationsTemperature grade 1: –40°C ≤ TA ≤ 125°CThree-phase BLDC motor driver4.5-V to 35-V operating voltage (40-V abs max)High output current capability: 8-A PeakLow MOSFET on-state resistance95-mΩ RDS(ON)(HS + LS) at TA= 25°CLow power sleep mode1.5-µA at VVM= 24-V, TA= 25°CMultiple control interface options6x PWM control interface3x PWM control interfaceSupports up to 200-kHz PWM frequency for low inductance motor supportCycle-by-cycle current limitIntegrated built-in current senseDoesn’t require external current sense resistorsHardware or 5-MHz 16-bit SPI interfaceSupports 1.8-V, 3.3-V, and 5-V logic inputsBuilt-in 3.3-V (5%), 30-mA LDO regulatorBuilt-in 3.3-V/5-V, 200-mA buck regulatorDelay compensation reduces duty cycle distortionSuite of integrated protection featuresSupply undervoltage lockout (UVLO)Charge pump undervoltage (CPUV)Overcurrent protection (OCP)Thermal warning and shutdown (OTW/OTSD)Fault condition indication pin (nFAULT)Optional fault diagnostics over SPI interfaceAEC-Q100 qualified for automotive applicationsTemperature grade 1: –40°C ≤ TA ≤ 125°CThree-phase BLDC motor driver4.5-V to 35-V operating voltage (40-V abs max)High output current capability: 8-A PeakLow MOSFET on-state resistance95-mΩ RDS(ON)(HS + LS) at TA= 25°CLow power sleep mode1.5-µA at VVM= 24-V, TA= 25°CMultiple control interface options6x PWM control interface3x PWM control interfaceSupports up to 200-kHz PWM frequency for low inductance motor supportCycle-by-cycle current limitIntegrated built-in current senseDoesn’t require external current sense resistorsHardware or 5-MHz 16-bit SPI interfaceSupports 1.8-V, 3.3-V, and 5-V logic inputsBuilt-in 3.3-V (5%), 30-mA LDO regulatorBuilt-in 3.3-V/5-V, 200-mA buck regulatorDelay compensation reduces duty cycle distortionSuite of integrated protection featuresSupply undervoltage lockout (UVLO)Charge pump undervoltage (CPUV)Overcurrent protection (OCP)Thermal warning and shutdown (OTW/OTSD)Fault condition indication pin (nFAULT)Optional fault diagnostics over SPI interface

Description

The DRV8316-Q1 provides a single-chip power stage solution for customers driving 12-V brushless-DC motors up to 40-W. The DRV8316-Q1 integrates three 1/2-H bridges with 40-V absolute maximum capability and a very low RDS(ON) of 95mOhms (high-side plus low-side) to enable high power drive capability. Current is sensed using an integrated current sensing feature which eliminates the need for external sense resistors. Power management features of an adjustable buck regulator and LDO generate the necessary voltage rails for the device and can be used to power external circuits. DRV8316-Q1 implements a 6x or 3x PWM control scheme which can be used to implement sensored or sensorless field-oriented control (FOC), sinusoidal control, or trapezoid control using an external microcontroler. The DRV8316-Q1 is capable of driving a PWM frequency up to 200 kHz. The control scheme is highly configurable through hardware pins or register settings ranging from motor current limiting behavior to fault response. There are a large number of protection features integrated into the DRV8316-Q1, intended to protect the device, motor, and system against fault events. The DRV8316-Q1 provides a single-chip power stage solution for customers driving 12-V brushless-DC motors up to 40-W. The DRV8316-Q1 integrates three 1/2-H bridges with 40-V absolute maximum capability and a very low RDS(ON) of 95mOhms (high-side plus low-side) to enable high power drive capability. Current is sensed using an integrated current sensing feature which eliminates the need for external sense resistors. Power management features of an adjustable buck regulator and LDO generate the necessary voltage rails for the device and can be used to power external circuits. DRV8316-Q1 implements a 6x or 3x PWM control scheme which can be used to implement sensored or sensorless field-oriented control (FOC), sinusoidal control, or trapezoid control using an external microcontroler. The DRV8316-Q1 is capable of driving a PWM frequency up to 200 kHz. The control scheme is highly configurable through hardware pins or register settings ranging from motor current limiting behavior to fault response. There are a large number of protection features integrated into the DRV8316-Q1, intended to protect the device, motor, and system against fault events.
