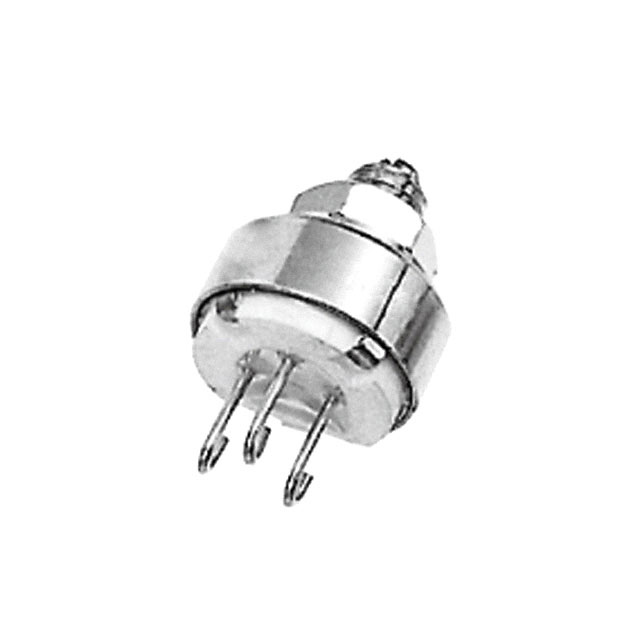

RJ13B Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 50 OHM 0.75W SOLDER HOOK

Part	Power (Watts)	Power (Watts)	Adjustment Type	Resistive Material	Tolerance	Number of Turns	Termination Style	Mounting Type	Resistance	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Temperature Coefficient
Nidec Components Corporation RJ-13B500	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	50 Ohms	0.551 in	Round	14 mm	100 ppm/°C
Nidec Components Corporation RJ-13B505	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	5000000 Ohms	0.551 in	Round	14 mm	250 ppm/°C
Nidec Components Corporation RJ-13B205	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	2 MOhms	0.551 in	Round	14 mm	100 ppm/°C
Nidec Components Corporation RJ-13B503	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	50000 Ohms	0.551 in	Round	14 mm	100 ppm/°C
Nidec Components Corporation RJ-13B201	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	200 Ohms	0.551 in	Round	14 mm	100 ppm/°C
Nidec Components Corporation RJ-13B204	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	200000 Ohms	0.551 in	Round	14 mm	100 ppm/°C
Nidec Components Corporation RJ-13B254	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	250000 Ohms	0.551 in	Round	14 mm	100 ppm/°C
Nidec Components Corporation RJ-13B203	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	20 kOhms	0.551 in	Round	14 mm	100 ppm/°C
Nidec Components Corporation RJ-13B502	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	5 kOhms	0.551 in	Round	14 mm	100 ppm/°C
Nidec Components Corporation RJ-13B101	3/4W	0.75 W	Top Adjustment	Cermet	10 %	1	Solder Hook	Panel Mount	100 Ohms	0.551 in	Round	14 mm	100 ppm/°C
