1056336 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

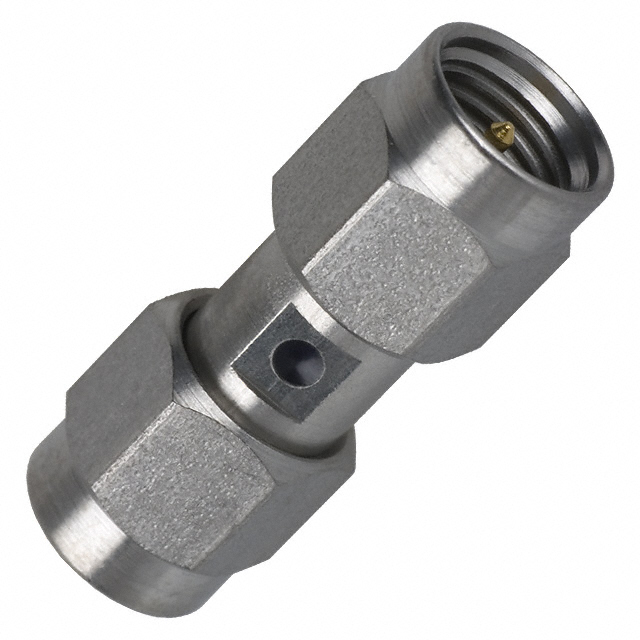

CONN ADAPT PLUG-PLUG OSM 50 OHM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Material | Dielectric Material | Mating Cycles | Mounting Type | Center Contact Plating | Adapter Type | Convert To (Adapter End) | Adapter Series | Style | Frequency - Max [Max] | Impedance | Conversion Type | Convert From (Adapter End) | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Stainless Steel | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | Free Hanging (In-Line) | Gold | Plug to Plug | SMA Plug Male Pin | OSM to OSM | Straight | 27 GHz | 50 Ohms | Same Series | Male Pin SMA Plug | Male to Male |
