109R0612 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 10.8V TO 13.2V 26.1CFM 39DB 60 X 60 X 25MM HIGH SPEED

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	Current Rating (Amps)	RPM	Size / Dimension [z]	Size / Dimension [x]	Noise	Approval Agency	Weight	Weight	Fan Type	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Air Flow	Air Flow	Power (Watts)	Termination	Width [y]	Features
Sanyo Denki America Inc. 109R0612G4021	10.8 VDC	13.2 VDC	Plastic	Plastic	0.24 A	5600 RPM	60 mm	60 mm	39 dB(A)	CSA TUV UL	0.199 lb	90.26 g	Tubeaxial	12 VDC	87.3 Pa	0.351 in H2O	-20 ░C	70 °C	Ball	27.5 CFM	0.77 m³/min	2.88 W	2 Wire Leads	25 mm
Sanyo Denki America Inc. 109R0612P4J061							60 mm	60 mm						12 VDC								5.64 W
Sanyo Denki America Inc. 109R0612S4021	6 VDC	13.8 VDC	Plastic	Plastic	0.17 A	4600 RPM	60 mm	60 mm	33 dB(A)	CSA TUV UL	0.199 lb	90.26 g	Tubeaxial	12 VDC	56.8 Pa	0.228 in H2O	-20 ░C	70 °C	Ball	23 CFM	0.644 m³/min		2 Wire Leads	25 mm
Sanyo Denki America Inc. 109R0612G402	10.8 VDC	13.2 VDC	Plastic	Plastic	0.24 A	5600 RPM	60 mm	60 mm	39 dB(A)	CSA TUV UL	0.199 lb	90.26 g	Tubeaxial	12 VDC	87.3 Pa	0.351 in H2O	-20 ░C	70 °C	Ball	27.5 CFM	0.77 m³/min	2.88 W	2 Wire Leads	25 mm
Sanyo Denki America Inc. 109R0612D4D011	10.2 VDC	13.8 VDC	Plastic	Plastic	0.21 A	5150 RPM	60 mm	60 mm	37 dB	CSA TUV UL	0.199 lb	90.26 g	Tubeaxial	12 VDC	73.5 Pa	0.295 in H2O	-20 ░C	70 °C	Ball	25.4 CFM	0.711 m³/min	2.52 W	3 Wire Leads	25 mm	Locked Rotor Sensor
Sanyo Denki America Inc. 109R0612S402	6 VDC	13.8 VDC	Plastic	Plastic	0.17 A	4600 RPM	60 mm	60 mm	33 dB(A)	CSA TUV UL	0.199 lb	90.26 g	Tubeaxial	12 VDC	56.8 Pa	0.228 in H2O	-20 ░C	70 °C	Ball	23 CFM	0.644 m³/min		2 Wire Leads	25 mm
Sanyo Denki America Inc. 109R0612F401	6 VDC	13.8 VDC	Plastic	Plastic	0.09 A	3200 RPM	60 mm	60 mm	24 dB	CSA TUV UL	0.199 lb	90.26 g	Tubeaxial	12 VDC	29.4 Pa	0.118 in H2O	-20 ░C	70 °C	Ball	15.5 CFM	0.434 m³/min	1.08 W	3 Wire Leads	25 mm	Locked Rotor Protection Speed Sensor (Tach)

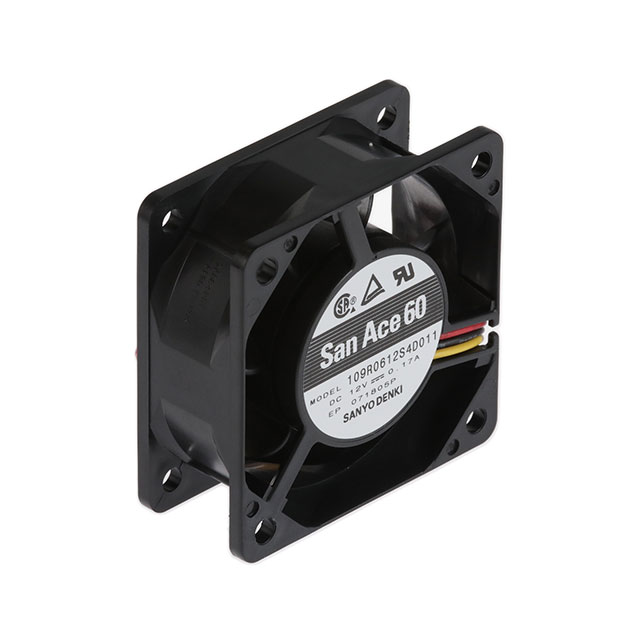

Sanyo Denki America Inc. 109R0612S4D011	6 VDC	13.8 VDC	Plastic	Plastic	0.17 A	4600 RPM	60 mm	60 mm	33 dB(A)	CSA TUV UL	0.199 lb	90.26 g	Tubeaxial	12 VDC	56.8 Pa	0.228 in H2O	-20 ░C	70 °C	Ball	23 CFM	0.644 m³/min		3 Wire Leads	25 mm	Locked Rotor Sensor

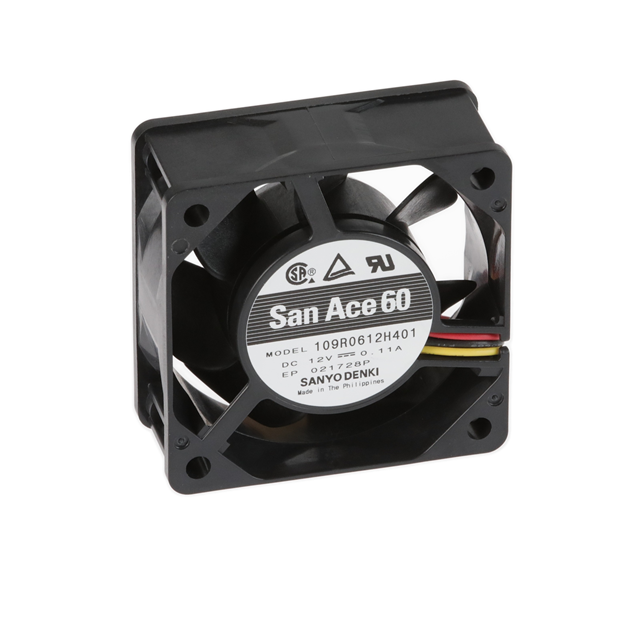

Sanyo Denki America Inc. 109R0612H401	6 VDC	13.8 VDC	Plastic	Plastic	110 mA	3800 RPM	60 mm	60 mm	28 dB	CSA TUV UL	0.199 lb	90.26 g	Tubeaxial	12 VDC			-20 ░C	70 °C	Ball	18.7 CFM	0.524 mł/min	1.32 W	3 Wire Leads	25 mm	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0612S4D01	6 VDC	13.8 VDC	Plastic	Plastic	0.17 A	4600 RPM	60 mm	60 mm	33 dB(A)	CSA TUV UL	0.199 lb	90.26 g	Tubeaxial	12 VDC	56.8 Pa	0.228 in H2O	-20 ░C	70 °C	Ball	23 CFM	0.644 m³/min		3 Wire Leads	25 mm	Locked Rotor Sensor
