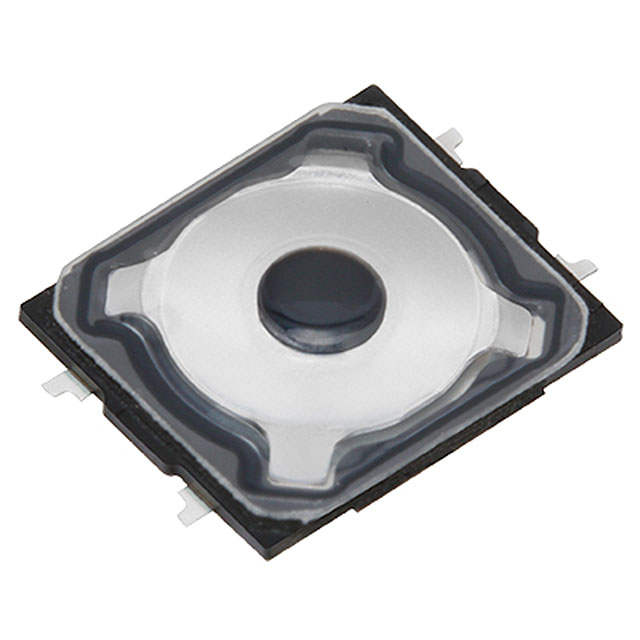

EVP-BK Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH TACTILE SPST-NO 0.02A 15V
| Part | Outline [y] | Outline [x] | Actuator Type | Actuator Orientation | Illumination | Operating Force | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage [x] | Ingress Protection | Circuit | Mechanical Life | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Switch Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 4 mm | 4.9 mm | Standard | Top Actuated | Non-Illuminated | 0.25 kgf | 0.63 mm | 0.02 A 15 VDC | IP67 - Dust Tight Waterproof | SPST-NO | 1000000 Cycles | Off-Mom | 85 °C | -40 °C | Surface Mount | SMD (SMT) Tab | 0.25 mm |
