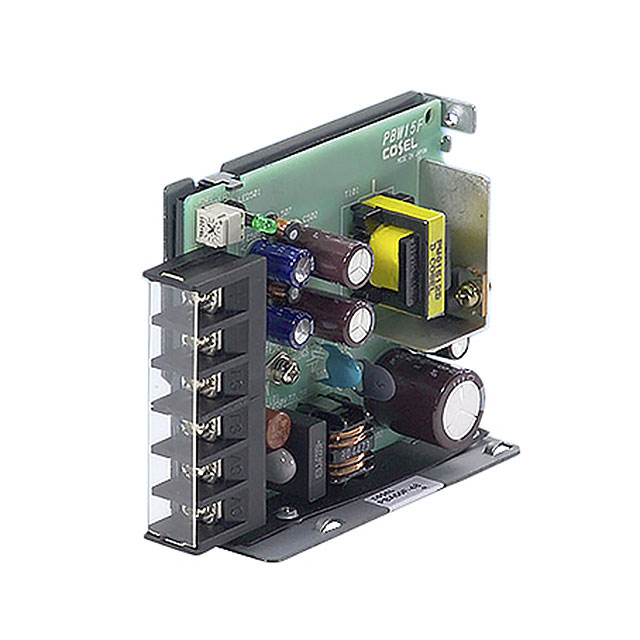

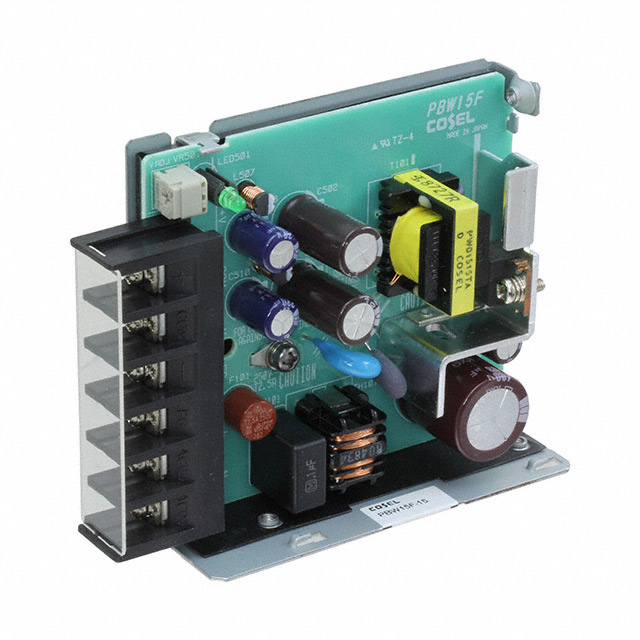

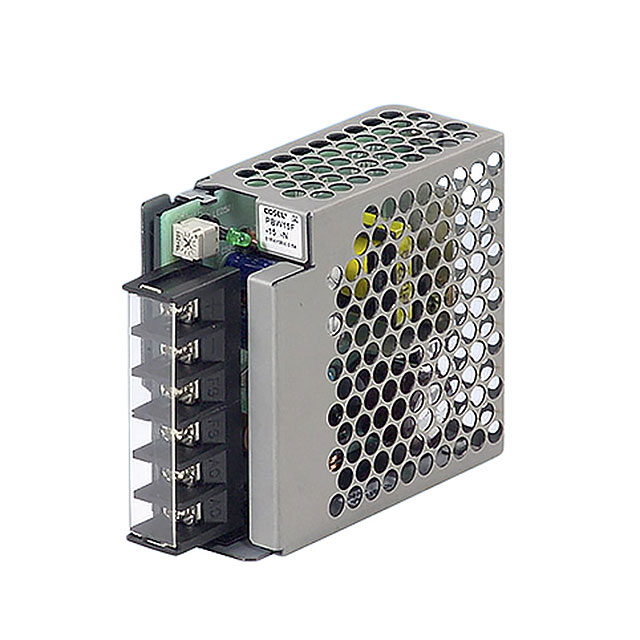

PBW15F Series

Catalog

AC/DC CONVERTER +/-15V

Part	Mounting Type	Number of Outputs	Voltage - Isolation	Approval Agency	Type	Voltage - Output 2	Current - Output 2	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Efficiency	Applications	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)
Cosel USA, Inc. PBW15F-15-E	Chassis Mount	2	3000 V	CE cURus TUV	Open Frame	-15 V	1 A	78 mm	31 mm	3.35 in	3.07 in	1.22 in	85.1 mm	15 V	80 %	ITE (Commercial)	500 mA	71 °C	-10 °C
Cosel USA, Inc. PBW15F-15-C	Chassis Mount	2	3000 V	CE cURus TUV	Open Frame	-15 V	1 A	78 mm	31 mm	3.35 in	3.07 in	1.22 in	85.1 mm	15 V	80 %	ITE (Commercial)	500 mA	71 °C	-10 °C
Cosel USA, Inc. PBW15F-15-G	Chassis Mount	2	3000 V	CE cURus TUV	Open Frame	-15 V	1 A	78 mm	31 mm	3.35 in	3.07 in	1.22 in	85.1 mm	15 V	80 %	ITE (Commercial)	500 mA	71 °C	-10 °C
Cosel USA, Inc. PBW15F-15-T	Chassis Mount	2	3000 V	CE cURus TUV	Open Frame	-15 V	1 A	78 mm	31 mm	3.35 in	3.07 in	1.22 in	85.1 mm	15 V	80 %	ITE (Commercial)	500 mA	71 °C	-10 °C
Cosel USA, Inc. PBW15F-15	Chassis Mount	2		CE cURus TUV	Open Frame	-15 V	1 A							15 V	80 %	ITE (Commercial)	500 mA			DC Input Capable Universal Input	15 W
Cosel USA, Inc. PBW15F-15-N1	Chassis Mount	2	3000 V	CE cURus TUV	Open Frame	-15 V	1 A	78 mm	31 mm	3.35 in	3.07 in	1.22 in	85.1 mm	15 V	80 %	ITE (Commercial)	500 mA	71 °C	-10 °C
Cosel USA, Inc. PBW15F-12-C	Chassis Mount	2	3000 V	CE cURus TUV	Open Frame	-12 V	1.4 A	78 mm	31 mm	3.35 in	3.07 in	1.22 in	85.1 mm	12 V	77 %	ITE (Commercial)	700 mA	71 °C	-10 °C
Cosel USA, Inc. PBW15F-12-N1	Chassis Mount	2	3000 V	CE cURus TUV	Open Frame	-12 V	1.4 A	78 mm	31 mm	3.35 in	3.07 in	1.22 in	85.1 mm	12 V	77 %	ITE (Commercial)	700 mA	71 °C	-10 °C
Cosel USA, Inc. PBW15F-15-N	Chassis Mount	2		CE cURus TUV	Open Frame	-15 V	1 A							15 V	80 %	ITE (Commercial)	500 mA			DC Input Capable Universal Input	15 W
Cosel USA, Inc. PBW15F-15-CN1	Chassis Mount	2	3000 V	CE cURus TUV	Open Frame	-15 V	1 A	78 mm	31 mm	3.35 in	3.07 in	1.22 in	85.1 mm	15 V	80 %	ITE (Commercial)	500 mA	71 °C	-10 °C
