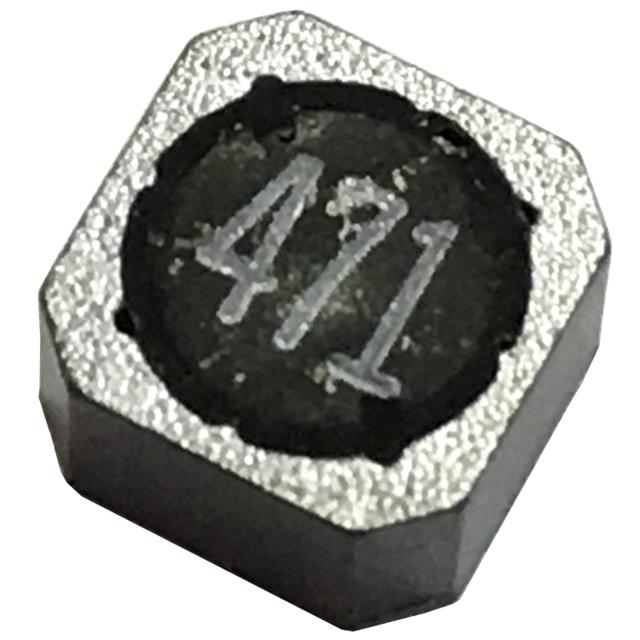

BPXX Series

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Part	Current Rating (Amps)	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Inductance Frequency - Test	Supplier Device Package	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Package / Case	Shielding	Inductance	Supplier Device Package	Package / Case	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Pulse Electronics BPXX00060620101M00	0.45 A	20 %	125 °C	-40 C	500 mA	100 kHz	2424	Surface Mount	0.236 "	6 mm	0.236 in	6 mm	0.079 in	2 mm	1.2 Ohm	2424 (6060 Metric)	Shielded	100 µH

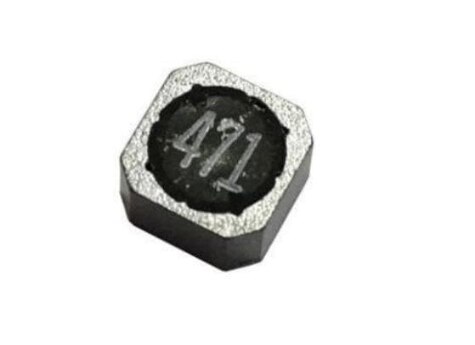

Pulse Electronics BPXX000303203R3M00	1.6 A	20 %	125 °C	-40 C	1.8 A	100 kHz		Surface Mount	0.118 in	3 mm	0.118 "	3 mm	0.079 in	2 mm		1212	Shielded	3.3 µH	1212	3030 Metric	100 mOhm
Pulse Electronics BPXX000303151R0T00	2 A	30 %	125 °C	-40 C	2 A	100 kHz		Surface Mount	0.118 in	3 mm	0.118 "	3 mm			75 mOhm	1212	Shielded	1 µH	1212	3030 Metric		0.059 "	1.5 mm
Pulse Electronics BPXX000404301R5T00	3 A	30 %	125 °C	-40 C	2.6 A	100 kHz		Surface Mount	0.157 "	4 mm	0.157 in	4 mm				1616 (4040 Metric)	Shielded	1.5 µH	1616		28 mOhm			0.118 "	3 mm
Pulse Electronics BPXX000404183R6T00	1.8 A	30 %	125 °C	-40 C	2 A	100 kHz		Surface Mount	0.157 "	4 mm	0.157 in	4 mm	1.8 mm			1616 (4040 Metric)	Shielded	3.6 µH	1616		100 mOhm	0.071 in
Pulse Electronics BPXX00040430470M00	700 mA	20 %	125 °C	-40 C	0.6 A	100 kHz		Surface Mount	0.157 "	4 mm	0.157 in	4 mm				1616 (4040 Metric)	Shielded	47 µH	1616					0.118 "	3 mm
Pulse Electronics BPXX00050515681T00	175 mA	30 %	125 °C	-40 C	100 mA	100 kHz		Surface Mount	0.197 "	5 mm	0.197 in	5 mm				2020 (5050 Metric)	Shielded	680 µH	2020		10.6 Ohm	0.059 "	1.5 mm
Pulse Electronics BPXX00050530821T00	0.26 A	30 %	125 °C	-40 C	120 mA	100 kHz		Surface Mount	0.197 "	5 mm	0.197 in	5 mm			5 Ohm	2020 (5050 Metric)	Shielded	820 µH	2020					0.118 "	3 mm
Pulse Electronics BPXX000606303R3T00	2.75 A	30 %	125 °C	-40 C	3.6 A	100 kHz	2424	Surface Mount	0.236 "	6 mm	0.236 in	6 mm			36 mOhm	2424 (6060 Metric)	Shielded	3.3 µH						0.118 "	3 mm
Pulse Electronics BPXX00060635471T00	430 mA	30 %	125 °C	-40 C	260 mA	100 kHz	2424	Surface Mount	0.236 "	6 mm	0.236 in	6 mm			1.6 Ohm	2424 (6060 Metric)	Shielded	470 µH						0.138 "	3.5 mm
