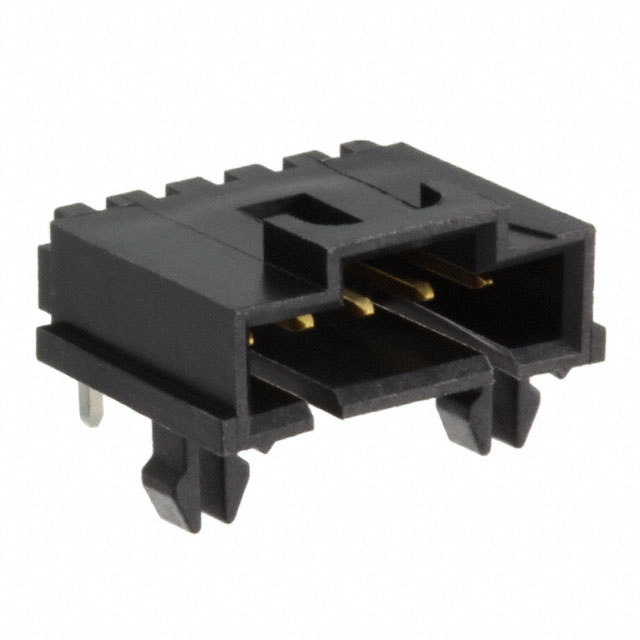

070551 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 5POS 2.54MM

Part	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Material	Contact Type	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Applications	Voltage Rating	Contact Length - Post	Contact Length - Post	Number of Rows	Termination	Material Flammability Rating	Contact Shape	Insulation Color	Fastening Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Material	Connector Type	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating
Molex 0705510004	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	150 Áin	3.81 Ám	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header
Molex 0705510036	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	15 µin	0.38 µm	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header	2	74.8 Áin	1.9 Ám	Gold
Molex 0705510049	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	15 µin	0.38 µm	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header	15	74.8 Áin	1.9 Ám	Gold
Molex 0705510008	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	150 Áin	3.81 Ám	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header	9
Molex 0705519040	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	15 µin	0.38 µm	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header	6	74.8 Áin	1.9 Ám	Gold
Molex 0705510009	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	150 Áin	3.81 Ám	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header	10
Molex 0705510052	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	15 µin	0.38 µm	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header	18	74.8 Áin	1.9 Ám	Gold
Molex 0705510046	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	15 µin	0.38 µm	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header	12	74.8 Áin	1.9 Ám	Gold

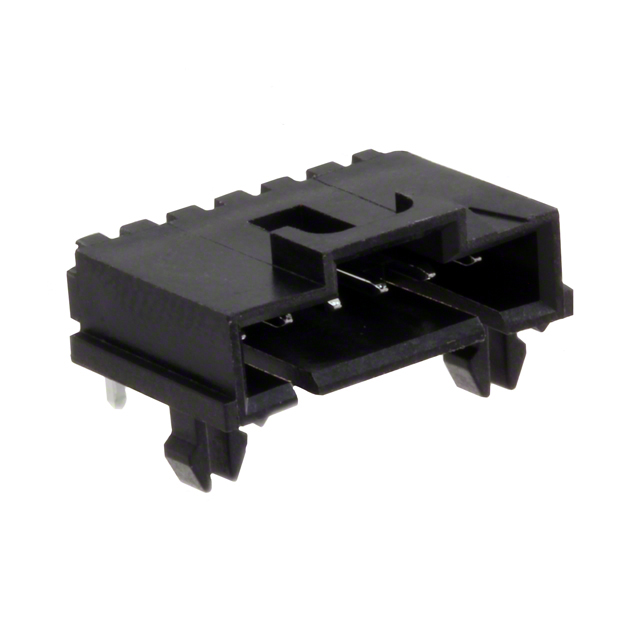

Molex 0705510005	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	150 Áin	3.81 Ám	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header	6

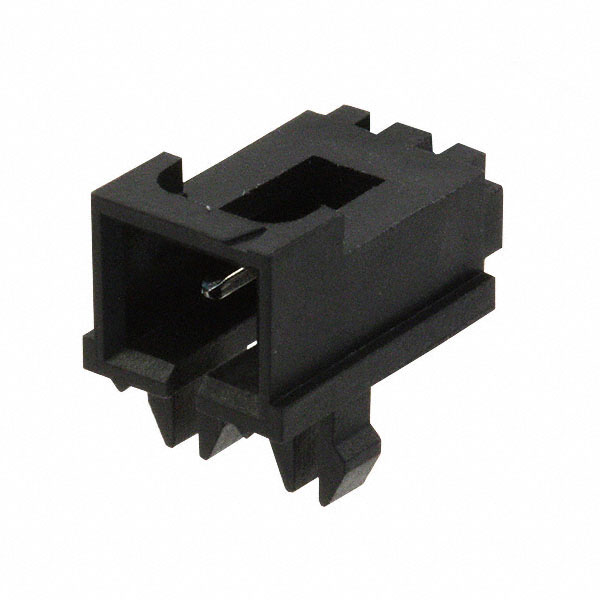

Molex 0705510001	Tin	5.45 mm	0.215 in	Polyester Glass Filled	Male Pin	6.1 mm	0.24 in	150 Áin	3.81 Ám	Shrouded - 4 Wall	Automotive General Purpose Industrial Medical	250 VDC	0.13 in	3.3 mm	1	Solder	UL94 V-0	Square	Black	Latch Holder	Board to Cable/Wire	-40 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	All	Phosphor Bronze	Header	2
