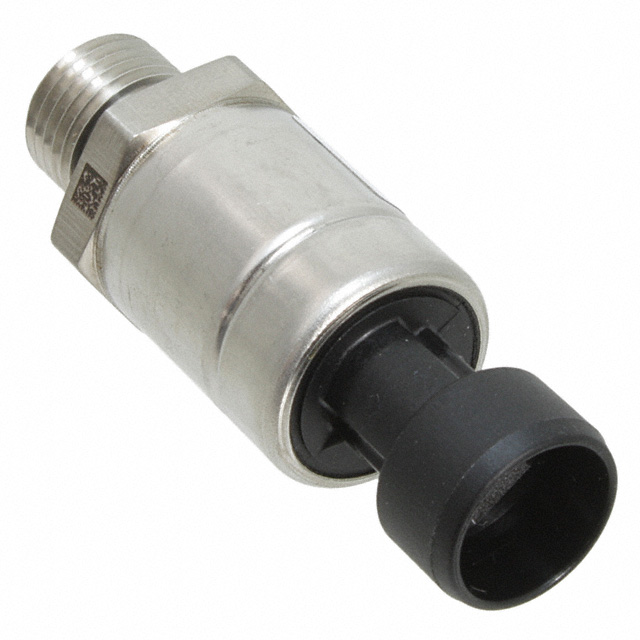

PX2AS1 Series

Catalog

SENSOR PRESS 250PSIA 4-20MA

Part	Termination Style	Features	Output Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Port Size	Port Size	Output [Max]	Output [Min]	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]
Honeywell Sensing and Productivity Solutions PX2AS1XX250PACHX	Connector	Temperature Compensated	Analog Current	Cylinder	125 °C	-40 °C	Industrial Automation	0.5625 " 14.29 mm	Male UNF	20 mA	4 mA	0.25 %	5171.07 kPa	750 PSI	Threaded	250 PSI	1723.69 kPa	30 VDC	8 V
Honeywell Sensing and Productivity Solutions PX2AS1XX500PAAAX	Connector	Temperature Compensated	Analog Voltage	Cylinder	125 °C	-40 °C	Industrial Automation	0.5625 " 14.29 mm	Male UNF	4.5 V	0.5 V	0.25 %	6894.76 kPa	1000 PSI	Threaded	500 PSI	3447.38 kPa	5.25 V	4.75 V
