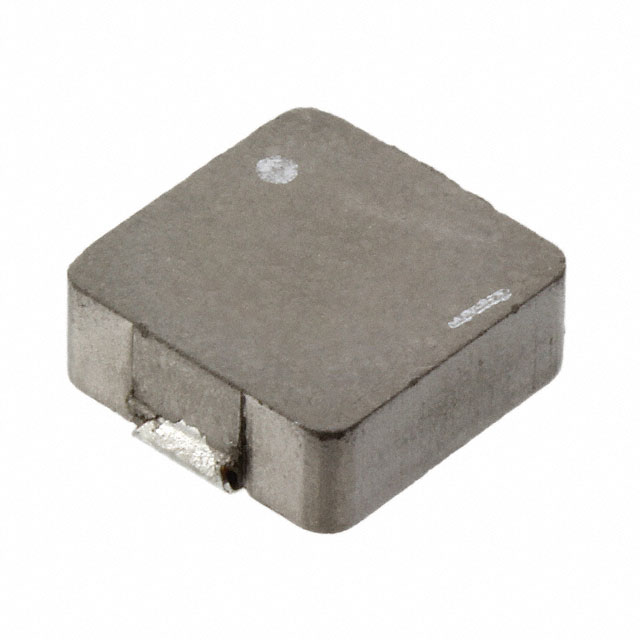

MPC1040 Series
Manufacturer: KEMET
Beta
⌘K
SURFACE MOUNT POWER INDUCTOR, MPC SERIES, 560 NH, 20%, SHIELDED, 1300 OHM, 23 A ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Material - Core | Current Rating (Amps) | Inductance Frequency - Test | Mounting Type | DC Resistance (DCR) [Max] | Inductance | Height - Seated (Max) | Height - Seated (Max) [Max] | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 120 °C | -20 ░C | 2-SMD J-Lead | Ferrite | 23 A | 100 kHz | Surface Mount | 1.3 mOhm | 560 nH | 4 mm | 0.157 in | 20 % | 10 mm | 11.5 mm | 0.453 " | 0.394 in | Shielded |
